Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CO-058TNCMFRP-025COAX CBL RP-TNC TO RP-TNC |
2,910 |
|
- |
- | Bulk | Active | RP-TNC to RP-TNC | RP-TNC Jack | Male | Free Hanging (In-Line) | - | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

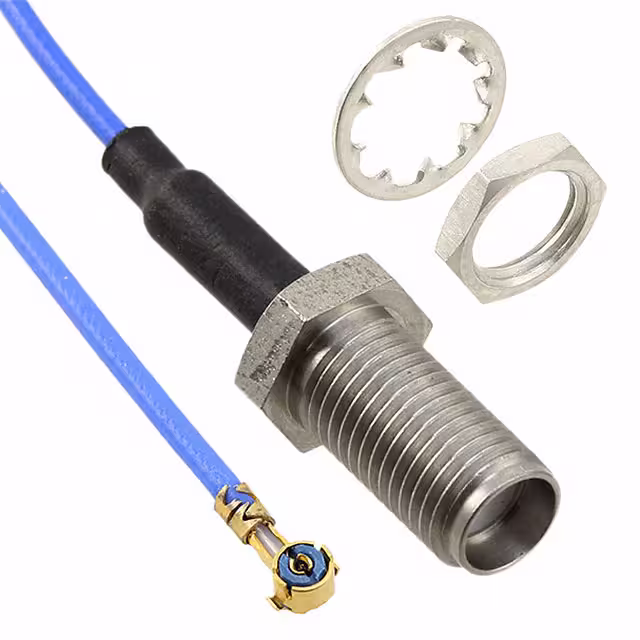

1064544-1COAX CBL SMA TO SSMT |
4,090 |
|
Datasheet |
- | Bulk | Active | SMA to SSMT | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
|
095-850-302M200COAX CBL BNC TO MMCX |
2,721 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
CBL-13-25FT-S1-T1COAX CBL SMA TO TNC |
4,334 |
|
Datasheet |
CBL | Bulk | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 300.0" (7.6m) 25.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
IJ5C-02-0550-S-S-1COAX CBL IJ5C TO CABLE |
4,508 |
|
Datasheet |
ISORATE® IJ5C | Bulk | Active | IJ5C to Cable | IJ5C Jack | Female | Free Hanging (In-Line) | - | Cable (Round), Stripped & Tinned | - | - | - | - | RG-316 | 50 Ohms | - | 50 Ohms | 9.9 GHz | Amber | - | -40°C ~ 90°C | - | - |
|
|
9202490R0715COAX CBL SMA TO MMCX |
4,537 |
|
Datasheet |
COAX-CBL-PMN | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - | |
|
135101-R2-14.00COAX CBL SMA TO SMA |
4,165 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 14.00" (355.60mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Copper | - | - | - | - |
|
095-900-551M075COAX CBL MCX TO MCX |
2,212 |
|
Datasheet |
MCX | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | - | -40°C ~ 85°C | - | - |
|
095-902-476M025COAX CBL SMA TO SMA |
1,566 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | LMR 195 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
135106-R1-12.00COAX CBL SMA TO SMA |
4,193 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Hand Formable .085 | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
|
095-902-525-060COAX CBL SMA TO N-TYPE |
3,267 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | - | - | - | - | - |
|
|
LCCA30112-FT1COAX CBL SMA TO SMA |
2,757 |
|
- |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 12.00" (304.80mm) | LC085TB | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
CTL1B-10COAX CBL BNC TO BNC |
2,985 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | - | - | 75 Ohms | - | - | Black | - | - | - | - |
|
|
LCCA30700-FT5COAX CBL BNC TO N-TYPE |
1,656 |
|
- |
- | Bag | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 60.0" (1.5m) 5.0' | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | -20°C ~ 80°C | - | - |
|
095-850-238M075COAX CBL BNC TO SMB |
2,324 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-700-38-072COAX CBL SMB TO SMB |
1,654 |
|
Datasheet |
SMB | Bag | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-58 | 50 Ohms | - | 50 Ohms | 4 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
FMCA1028-6COAX CBL SMA TO UMCX |
4,297 |
|
- |
- | Bag | Active | SMA to UMCX | SMA Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
CC59B-3COAX CBL BNC TO BNC |
3,523 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | - | - | - |
|
|
CTL1B-2.5COAX CBL BNC TO BNC |
3,727 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | - | - | 75 Ohms | - | - | Black | - | - | - | - |
|
|
FMCA1016-6COAX CBL RP-SMA TO UMCX |
3,066 |
|
- |
- | Bag | Active | RP-SMA to UMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
