Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FMCA1057-9COAX CBL WMCX TO WMCX |
4,036 |
|
- |
- | Bag | Active | WMCX to WMCX | WMCX Plug | Male | Free Hanging (In-Line) | - | WMCX Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 0.81mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
0732307092CASMA J STR BH TO SMA P RARG1741 |
2,716 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
2189-06COAX CBL S.FL2 TO S.FL2 |
4,474 |
|
- |
- | Bulk | Obsolete | S.FL2 to S.FL2 | S.FL2 Jack | Female | Free Hanging (In-Line) | - | S.FL2 Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.27mm OD Coaxial Cable | - | - | - | - | Gray | Shielded | - | - | - |
|
|
095-902-585-100COAX CBL MHF1 LK TO SMA |
1,219 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
CAB.J05COAX CBL SMA TO FAKRA II |
3,677 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra II (Gen 2.0) Jack | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Code D, Shielded | -40°C ~ 85°C | - | - |
|
|
0732307102CASMA J STR BH TO SMA P RARG3161 |
1,726 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
FMCA1053-6COAX CBL UMCX TO UMCX |
4,598 |
|
- |
- | Bag | Active | UMCX to UMCX | UMCX Plug | Male | Free Hanging (In-Line) | - | UMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.37mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
CCMX1-MM-RG178-18COAX CBL MMCX TO MMCX |
4,816 |
|
Datasheet |
CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
415-0202-MM100COAX CBL SMA TO MMCX |
1,284 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
CAB444RF-0300-A-1CABLE ASSEMBLY I-PEX MHF TO ISOL |
2,975 |
|
- |
Nautilus | Bag | Active | I-PEX MHF1 to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | - | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 85°C | - | - |
|
|
CBL-02-18-N1-S2Linear IC's |
2,024 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
095-900-553-050COAX CBL U.FL AMC TO MMCX |
4,194 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
CASMA-UFL-1COAX CBL U.FL TO SMA |
1,899 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | - | - | - | - | - | Gray | - | - | - | - |
|
|
0732307093CASMA J STR BH TO SMA P RARG1741 |
3,911 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
CBL-12-120-N1-T1COAX CBL N-TYPE TO TNC |
4,862 |
|
Datasheet |
CBL | Bulk | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | PFP 195 | - | - | - | - | Black | - | - | - | - |
|
|
CBL-60-180-M1-N1COAX CBL N-TYPE TO UHF MINI |
3,577 |
|
Datasheet |
CBL | Bulk | Active | N-Type to UHF, Mini | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF, Mini Plug | Male | Free Hanging (In-Line) | - | 180.0" (4.6m) 15.0' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
0732306990BNC P STR TO SMA STRRG1743IN |
2,297 |
|
- |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
0732306991BNC P STR TO SMA STRRG1746IN |
3,756 |
|
- |
73230 | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
FMCA2383-200CMCOAX CBL BNC TO BNC |
2,888 |
|
- |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-6 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|

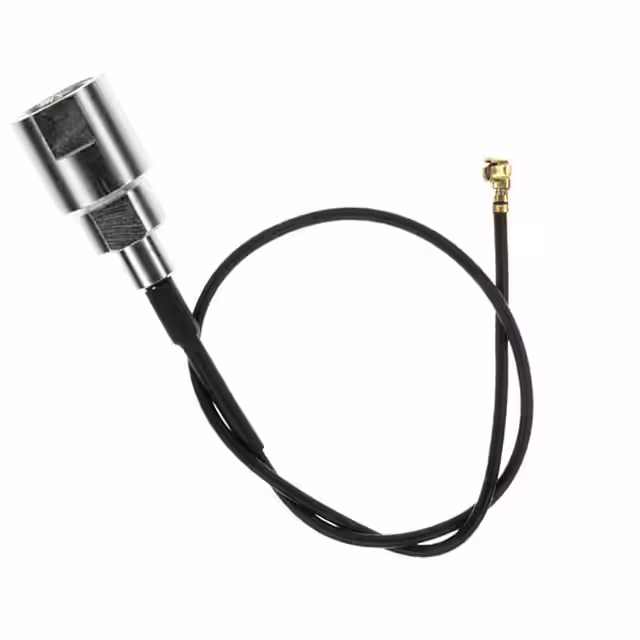

2032438-1COAX CBL U.FL TO FME |
2,173 |
|
Datasheet |
- | Bag | Obsolete | U.FL (UMCC) to FME | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | FME Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
