Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8511-12COAX CBL 7/16 DIN TO 7/16 DIN |
2,323 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Jack | Female | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8503-24COAX CBL 7/16 DIN TO N-TYPE |
2,637 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
Q-0304G0003024iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

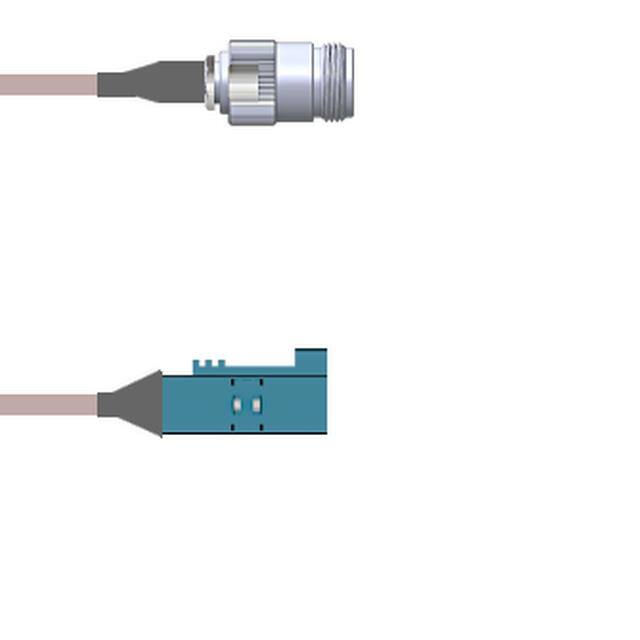

Q-2005E0005.25MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

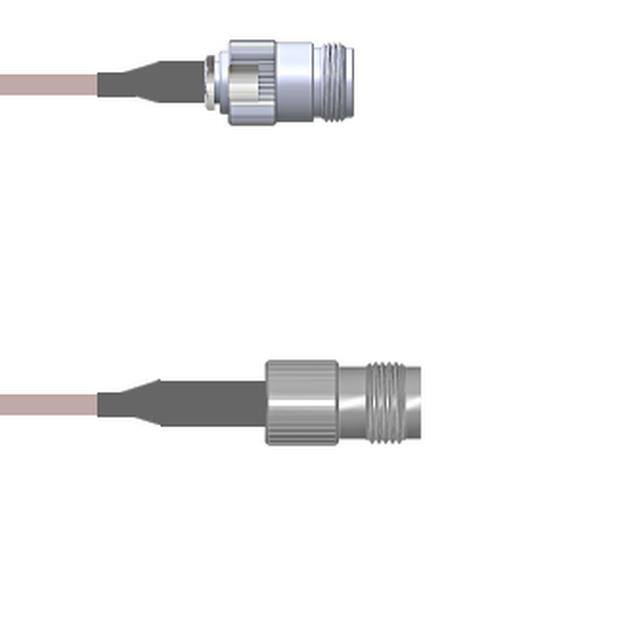

Q-2004G0005.25MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
Q-040520003.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3C8815/GR-72COAX CBL 1.0/2.3 TO BNC |
1,008 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/OR-72COAX CBL 1.0/2.3 TO BNC |
2,497 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/BL-72COAX CBL 1.0/2.3 TO BNC |
4,463 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/YW-72COAX CBL 1.0/2.3 TO BNC |
1,824 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/VL-72COAX CBL 1.0/2.3 TO BNC |
2,729 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/BK-72COAX CBL 1.0/2.3 TO BNC |
3,175 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/GY-72COAX CBL 1.0/2.3 TO BNC |
2,688 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/WH-72COAX CBL 1.0/2.3 TO BNC |
2,917 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/RD-72COAX CBL 1.0/2.3 TO BNC |
1,522 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/BR-72COAX CBL 1.0/2.3 TO BNC |
1,858 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -30°C ~ 75°C | - | - |
|
Q-0305A0003048iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-030520003002MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

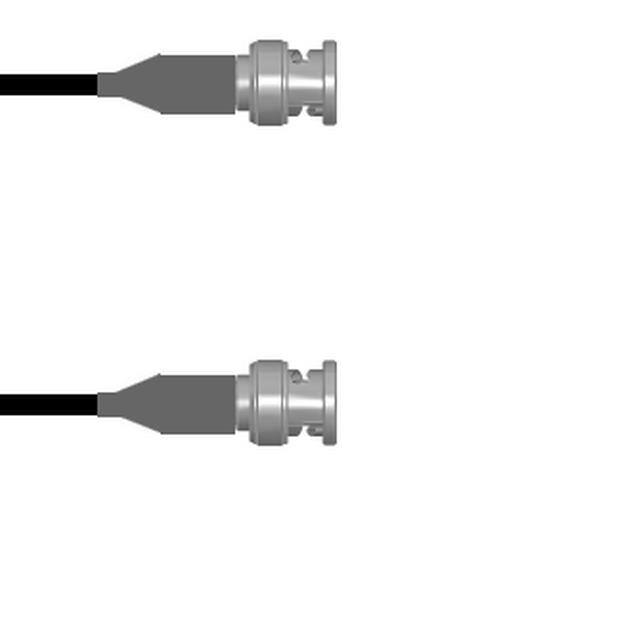

Q-0N00N001A.25MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-59 | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

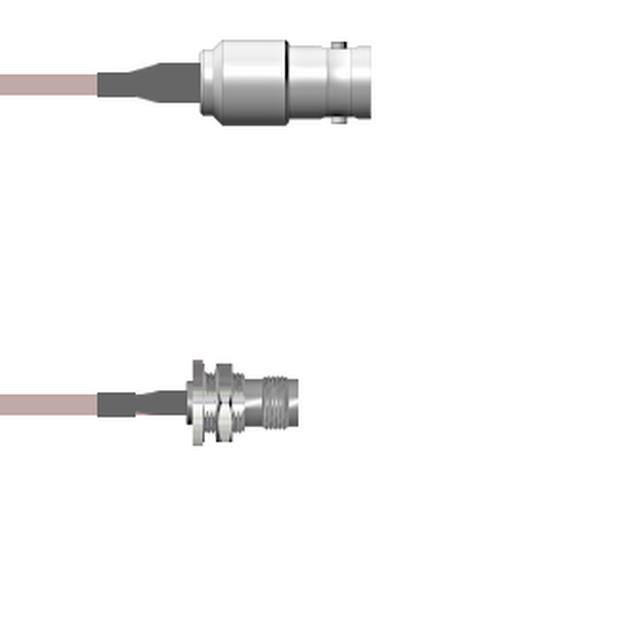

Q-0204C00011.5MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 59.1" (1.5m) 4.9' | RG-178 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
