Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q-200520003060iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

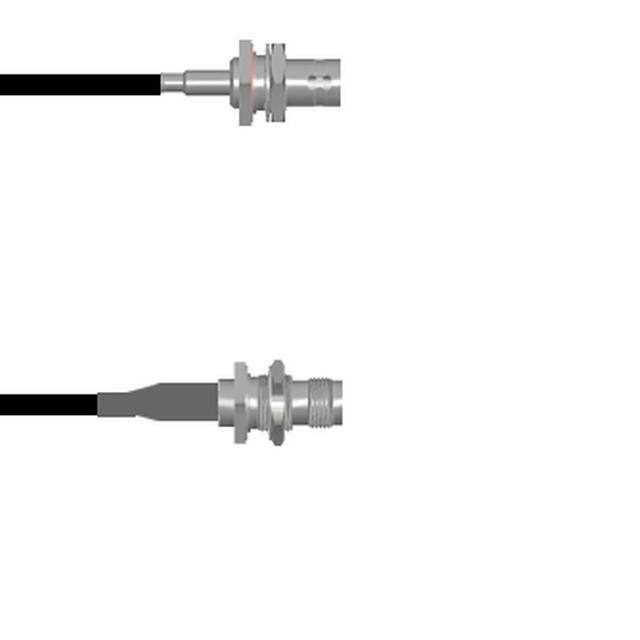

Q-0404F0003003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE35729-12COAX CBL BNC TO BNC |
3,954 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C4060-18COAX CBL SMA TO MMBX |
1,578 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3C4062-18COAX CBL SMA TO MMBX |
4,353 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE37944-48COAX CBL N-TYPE TO N-TYPE |
2,568 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE38137/BL-6075 Ohm F Male to 75 Ohm F Male R |
3,633 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | PE-P195 | 75 Ohms | 75 Ohms | 75 Ohms | - | Blue | - | - | - | - |
|
|
PE38137-6075 Ohm F Male to 75 Ohm F Male R |
1,386 |
|
- |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3C3922-4COAX CBL SMA TO MMBX |
3,907 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMBX Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE36147-12COAX CBL BNC TO F-TYPE |
1,419 |
|
Datasheet |
- | Retail Package | Active | BNC to F-Type | BNC Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-11A | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE39417-18COAX CBL SMA TO SMA |
2,840 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | Beige | - | - | - | - |
|
|
PE38756H-60Violet FAKRA Plug to FAKRA Jack |
1,554 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE3210-12COAX CBL SMA TO SMC |
4,119 |
|
Datasheet |
- | Retail Package | Active | SMA to SMC | SMA Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3210-6COAX CBL SMA TO SMC |
3,706 |
|
Datasheet |
- | Retail Package | Active | SMA to SMC | SMA Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE39456-6COAX CBL SMA TO N-TYPE |
1,149 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | - | - | - |
|
|
PE38756D-60Bordeaux FAKRA Plug to FAKRA Jac |
1,287 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE39426-6SMA Male to SMA Female Semi-Flex |
3,264 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | - | - | 50 Ohms | 18 GHz | Silver | - | -55°C ~ 125°C | - | - |
|
|
PE38132-48COAX CBL BNC TO BNC |
1,191 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Blue | - | - | - | - |
|
|
PE38132/RD-12COAX CBL BNC TO BNC |
4,100 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Red | - | - | - | - |
|
|
PE38755D-60COAX CBL FAKRA TO FAKRA |
1,408 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
