Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

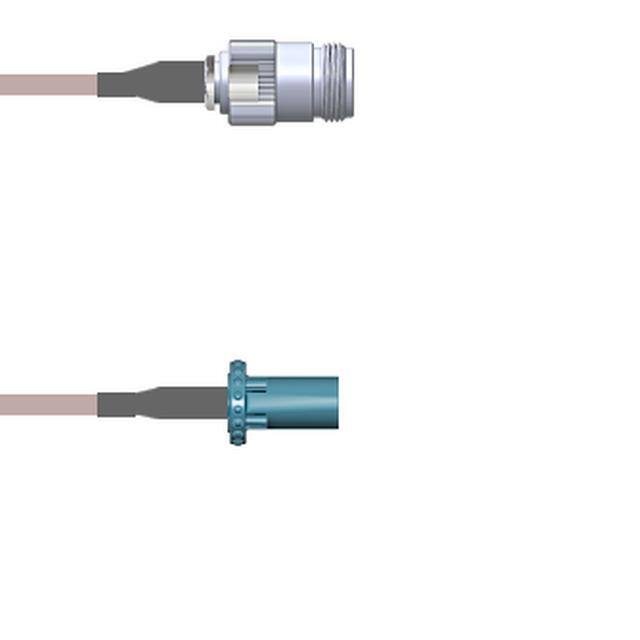

Q-2005A0005012iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
SHVP5WRG58CBL ASSY SHV PLUG TO PLUG 5.0m |
2,037 |
|
Datasheet |
- | Retail Package | Active | - | SHV Plug | Male | Free Hanging (In-Line) | - | SHV Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58A | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|

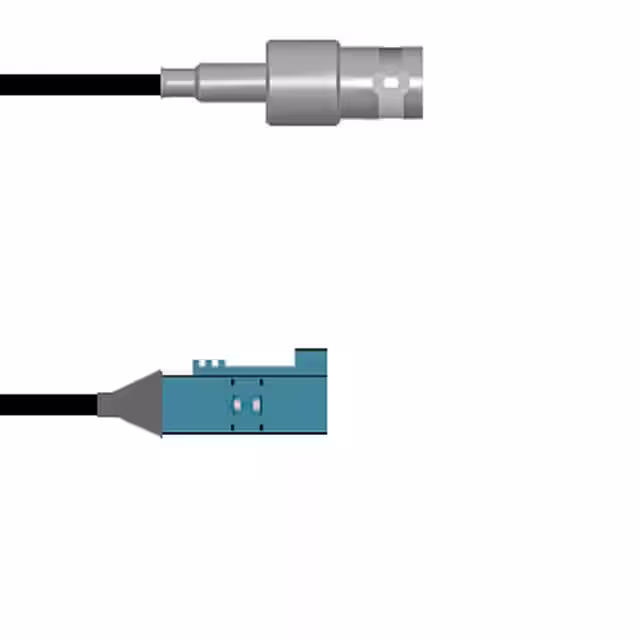

Q-0305E0003009iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE3C8502-50CMCOAX CBL 7/16 DIN TO N-TYPE |
2,903 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8444-50CMCOAX CBL 7/16 DIN TO N-TYPE |
4,808 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8516-50CMCOAX CBL 7/16 DIN TO N-TYPE |
2,808 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8503-50CMCOAX CBL 7/16 DIN TO N-TYPE |
4,810 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8490-50CMCOAX CBL 7/16 DIN TO N-TYPE |
4,551 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPF-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
Q-0304G0003009iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-2005E00030.5MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-030520003001MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-2004G00030.5MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0305E0003.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
Q-2001F00031.5MCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | - | - | 50 Ohms | 6 GHz | Black | Shielded | - | - | - |
|
|
Q-0304G0003.25MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
Q-0304F0003018iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3C3799-24Push-On SMP Female to Straight C |
1,802 |
|
Datasheet |
- | Retail Package | Active | SMP to Cable | SMP Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|

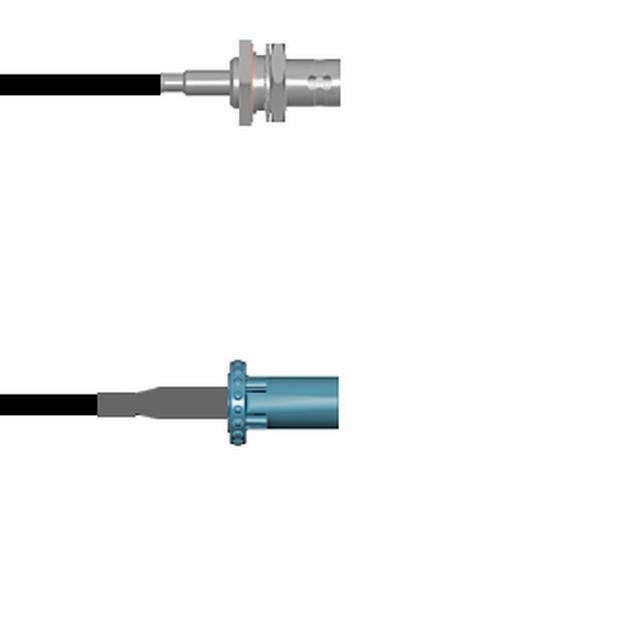

Q-0405A0003009iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-0305A0005.25MCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
PE3C4133-100CMCOAX CBL 7/16 DIN TO N-TYPE |
3,736 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | SPP-250LLPL | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Blue | - | -55°C ~ 200°C | - | - |
