Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3226LF-6COAX CBL SMA TO SMC |
3,302 |
|
Datasheet |
- | Retail Package | Active | SMA to SMC | SMA Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-223 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE34701-60COAX CBL BNC TO SMB MINI |
3,911 |
|
Datasheet |
- | Retail Package | Active | BNC to SMB Mini | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE34701LF-60COAX CBL BNC TO SMB MINI |
4,649 |
|
Datasheet |
- | Retail Package | Active | BNC to SMB Mini | BNC Plug | Male | Free Hanging (In-Line) | - | SMB Mini Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE33330-72COAX CBL BNC TO SMC |
3,169 |
|
Datasheet |
- | Retail Package | Active | BNC to SMC | BNC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE38130/YW-24COAX CBL BNC TO BNC |
4,623 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Yellow | - | - | - | - |
|
|
PE34490-12SMB Plug to SMB Plug Right Angle |
3,629 |
|
Datasheet |
- | Retail Package | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C4064-8COAX CBL MMBX TO MMBX |
2,957 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
PE39488-24COAX CBL TNC TO TNC |
3,338 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | - | - | 50 Ohms | 6 GHz | Black | - | -55°C ~ 125°C | - | - |
|
|
PE38137/YW-4875 Ohm F Male to 75 Ohm F Male R |
1,784 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PE-P195 | 75 Ohms | 75 Ohms | 75 Ohms | - | Yellow | - | - | - | - |
|
|
PE38132/GR-24COAX CBL BNC TO BNC |
4,507 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Green | - | - | - | - |
|
|
PE38132-24COAX CBL BNC TO BNC |
2,255 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 24.00" (609.60mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Blue | - | - | - | - |
|
|
PE39462-9COAX CBL SMA TO N-TYPE |
1,620 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000" (228.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | - | - | - |
|
|
PE3C4445-12COAX CBL SMA TO SSMC |
3,652 |
|
Datasheet |
- | Retail Package | Active | SMA to SSMC | SMA Plug | Male | Free Hanging (In-Line) | - | SSMC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
PE39440-6COAX CBL SMA TO SMA |
1,263 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE39474-18TNC Male to TNC Female Semi-Flex |
1,504 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | - | - | 50 Ohms | 6 GHz | Silver | - | - | - | - |
|

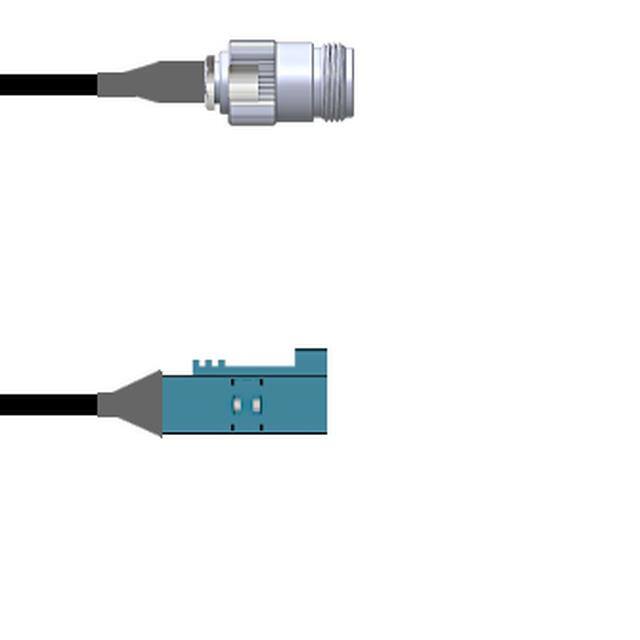

Q-2005E0003018iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-0405A0003006iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Fakra Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

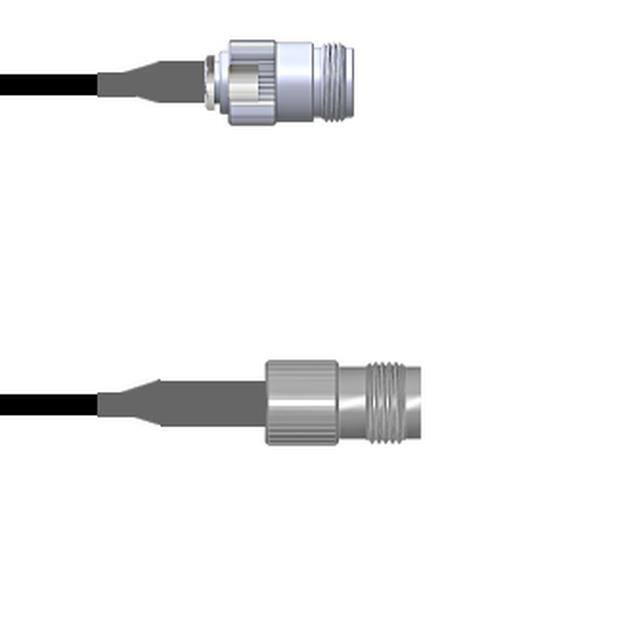

Q-2004G0003018iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
|
Q-200520003048iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|

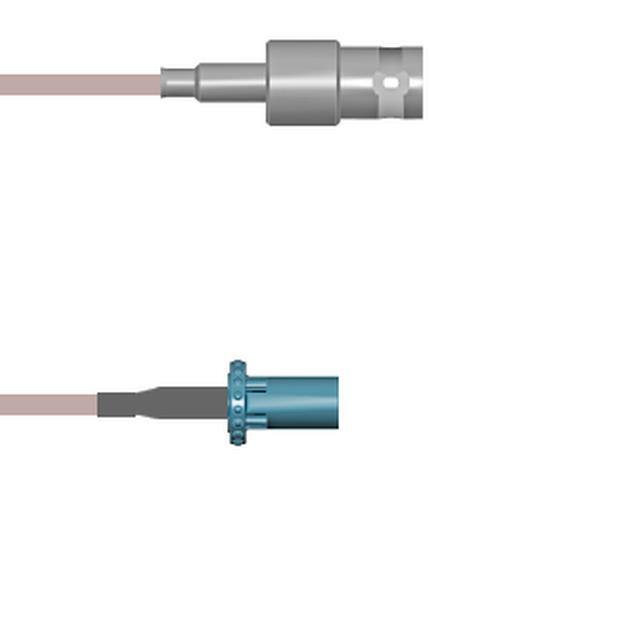

Q-0305A0005009iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
