Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8815/GY-36COAX CBL 1.0/2.3 TO BNC |
1,911 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/BR-36COAX CBL 1.0/2.3 TO BNC |
1,228 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/YW-36COAX CBL 1.0/2.3 TO BNC |
3,411 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3C8815/WH-36COAX CBL 1.0/2.3 TO BNC |
4,368 |
|
Datasheet |
- | Tape & Box (TB) | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -30°C ~ 75°C | - | - |
|
Q-0304F0003006iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
JX50265-39COAX CBL 4.3/10 TO 4.3/10 |
100 |
|
Datasheet |
- | Box | Active | 4.3/10 to 4.3/10 | 4.3/10 Jack | Female | - | - | 4.3/10 Plug | Male | - | - | 39.00" (990.60mm) | Hand Formable .141 | - | - | - | - | - | - | - | - | - |
|
|
JX50260-39COAX CBL 4.3/10 TO 4.3/10 |
100 |
|
Datasheet |
- | Box | Active | 4.3/10 to 4.3/10 | 4.3/10 Plug | Male | - | - | 4.3/10 Plug | Male | - | - | 39.00" (990.60mm) | Hand Formable .141 | - | - | - | - | - | - | - | - | - |
|
|
BT512327COAX CBL N-TYPE TO QMA |
1,062 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to QMA | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | QMA Plug | Male | Free Hanging (In-Line), Right Angle | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | - | White | Low Loss Shielded | -55°C ~ 155°C | - | - |
|
Q-2005E0003009iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-2004G0003009iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-200520003001MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-030520003.75MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
Q-2005E0003.25MCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

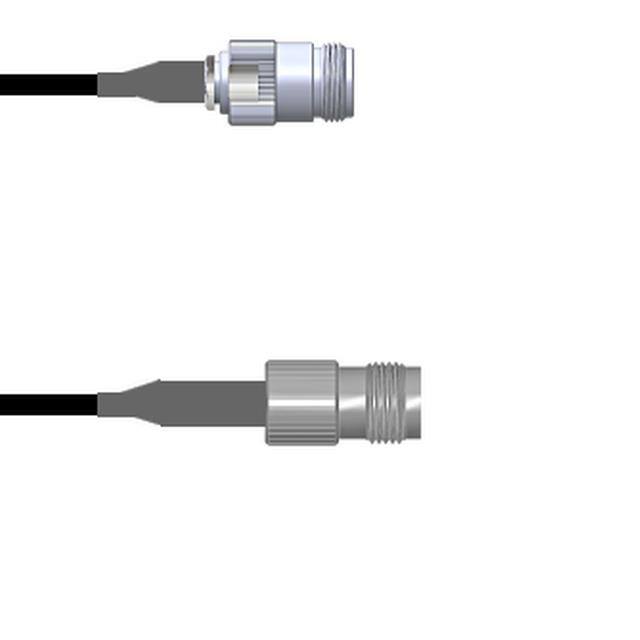

Q-2004G0003.25MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-2004F0003018iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0305A0003024iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE38130/YW-12COAX CBL BNC TO BNC |
2,378 |
|
Datasheet |
- | Retail Package | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 75 Ohms | 75 Ohms | 75 Ohms | 4.5 GHz | Yellow | - | - | - | - |
|
|
PE3C4068-8COAX CBL SMA TO MMBX |
2,412 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
PE3C4066-4COAX CBL SMA TO MMBX |
2,498 |
|
Datasheet |
- | Retail Package | Active | SMA to MMBX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMBX Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | 0.086" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | - | - | - | - |
|
|
PE3301-12COAX CBL MCX TO MCX |
4,897 |
|
Datasheet |
- | Retail Package | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-196 | 50 Ohms | 50 Ohms | 50 Ohms | - | White | - | - | - | - |
