Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE34488-12SMB Plug to SMB Plug Cable 12 In |
1,525 |
|
Datasheet |
- | Retail Package | Active | SMB to SMB | SMB Plug | Male | Free Hanging (In-Line) | - | SMB Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE38756D-48COAX CBL FAKRA TO FAKRA |
4,281 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE38137/YW-3675 Ohm F Male to 75 Ohm F Male R |
2,427 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | PE-P195 | 75 Ohms | 75 Ohms | 75 Ohms | - | Yellow | - | - | - | - |
|
|
PE3C8508-12COAX CBL N-TYPE TO N-TYPE |
3,968 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE38755D-48COAX CBL FAKRA TO FAKRA |
1,897 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C8444-12COAX CBL 7/16 DIN TO N-TYPE |
4,883 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
|
PE3C8516-12COAX CBL 7/16 DIN TO N-TYPE |
3,197 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to N-Type | 7/16 Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Blue | - | - | - | - |
|
Q-030520003018iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|

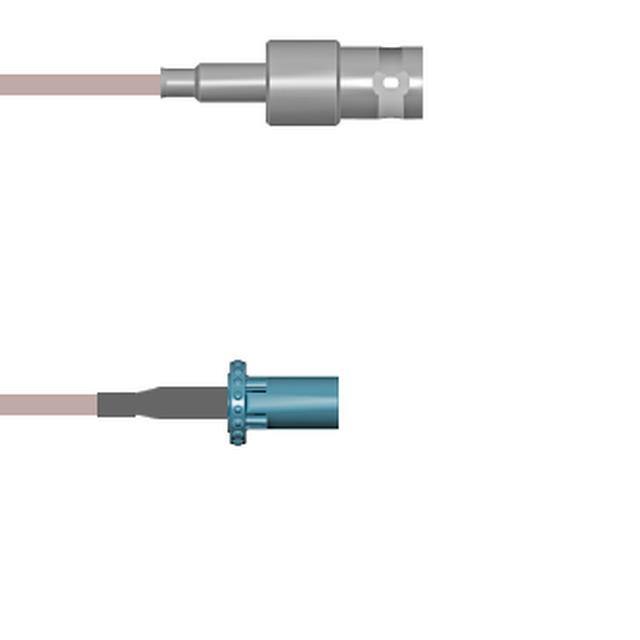

Q-0305A0005003iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
|
Q-2005A0005006iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | - | - | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

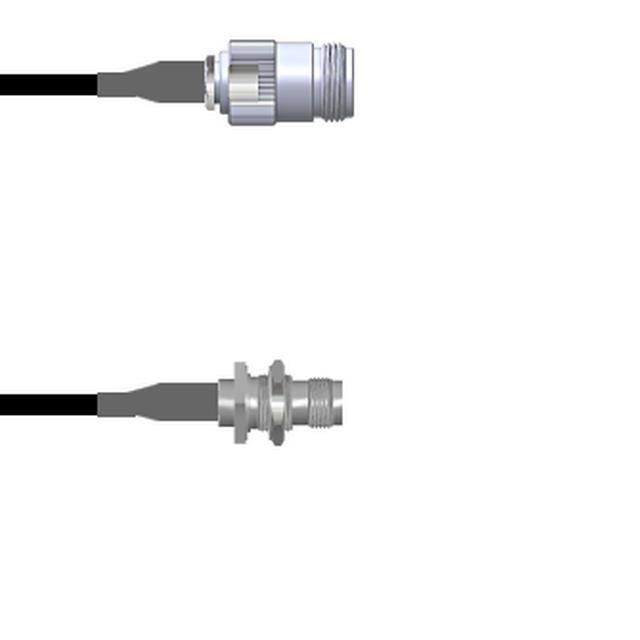

Q-2004F0003006iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 6.000" (152.40mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
Q-0305A0003012iCOAX CBL BNC TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | BNC to Fakra | BNC Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE3C1670/BL-4875 Ohm F Male to 75 Ohm F Male C |
4,868 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 75 Ohms | 75 Ohms | 75 Ohms | - | Blue | - | - | - | - |
|
|
PE3C5296-200CMCOAX CBL FAKRA TO FAKRA |
4,103 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Jack, Right Angle | Female | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | LMR 100 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
|
PE3C4492-6SMA Male to SMA Male Right Angle |
3,907 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Blue | - | - | - | - |
|
|
PE3C8508-50CMCOAX CBL N-TYPE TO N-TYPE |
2,807 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8509-50CMCOAX CBL N-TYPE TO N-TYPE |
2,036 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | SPO-250 | 50 Ohms | 50 Ohms | 50 Ohms | 5.8 GHz | Black | - | - | - | - |
|
|
PE3C8747/VL-120COAX CBL HD-BNC TO HD-BNC |
4,644 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Violet | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/BK-120COAX CBL HD-BNC TO HD-BNC |
2,516 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
Q-200520003.75MCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | - | - | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
