Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE39345H-36COAX CBL SMA TO FAKRA |
2,372 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
PE3C8742/BK-72COAX CBL BNC TO HD-BNC |
2,002 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|
|
PE33330-12COAX CBL BNC TO SMC |
3,667 |
|
Datasheet |
- | Retail Package | Active | BNC to SMC | BNC Plug | Male | Free Hanging (In-Line) | - | SMC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-59B | 75 Ohms | 75 Ohms | 75 Ohms | - | - | - | - | - | - |
|
|
PE3C4048-6COAX CBL MMBX TO MMBX |
4,788 |
|
Datasheet |
- | Retail Package | Active | MMBX to MMBX | MMBX Plug | Male | Free Hanging (In-Line) | - | MMBX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Tan | - | - | - | - |
|
|
PE39345D-36COAX CBL SMA TO FAKRA |
3,901 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | Fakra Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE39344H-60COAX CBL SMA TO FAKRA |
1,630 |
|
Datasheet |
- | Retail Package | Active | SMA to Fakra | SMA Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | - | - | - | - |
|
Q-2005A0003006iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
Q-030520003003iCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | - | - | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE38137/YW-1275 Ohm F Male to 75 Ohm F Male R |
2,649 |
|
Datasheet |
- | Retail Package | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | PE-P195 | 75 Ohms | 75 Ohms | 75 Ohms | - | Yellow | - | - | - | - |
|
|
PE38752H-60COAX CBL FAKRA TO FAKRA |
4,357 |
|
Datasheet |
- | Retail Package | Active | Fakra to Fakra | Fakra Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | - | - | - | - |
|
|
FDX12-UB-1-UB-03COAX CBL BNC TO BNC |
1,789 |
|
- |
- | Bag | Active | BNC to BNC | - | - | - | - | - | - | - | - | 119.0" (3.0m) 9.9' | - | - | - | - | - | - | - | - | - | - |
|

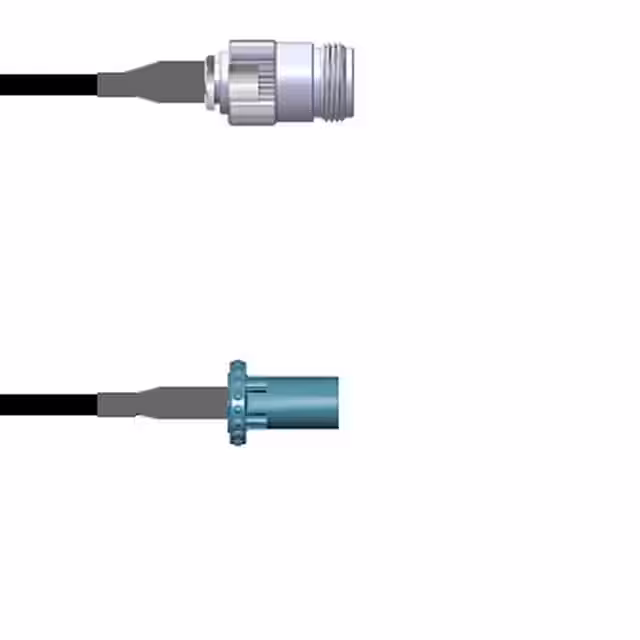

Q-2005A0003009iCOAX CBL N-TYPE TO FAKRA |
100 |
|
Datasheet |
- | Bag | Active | N-Type to Fakra | N-Type Jack | Female | Free Hanging (In-Line) | - | Fakra Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-174 | - | - | 50 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE3C8816/GR-72COAX CBL HD-BNC TO HD-BNC |
3,465 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/BL-72COAX CBL HD-BNC TO HD-BNC |
1,327 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/GY-72COAX CBL HD-BNC TO HD-BNC |
3,239 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Gray | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/WH-72COAX CBL HD-BNC TO HD-BNC |
3,215 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | White | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/BR-72COAX CBL HD-BNC TO HD-BNC |
1,358 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Brown | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/OR-72COAX CBL HD-BNC TO HD-BNC |
4,147 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/RD-72COAX CBL HD-BNC TO HD-BNC |
3,662 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -30°C ~ 75°C | - | - |
|
|
PE3C8816/VL-72COAX CBL HD-BNC TO HD-BNC |
4,869 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 72.0" (1.8m) 6.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Violet | - | -30°C ~ 75°C | - | - |
