Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3C8741/BK-120COAX CBL BNC TO BNC |
4,370 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Black | - | -30°C ~ 75°C | - | - |
|

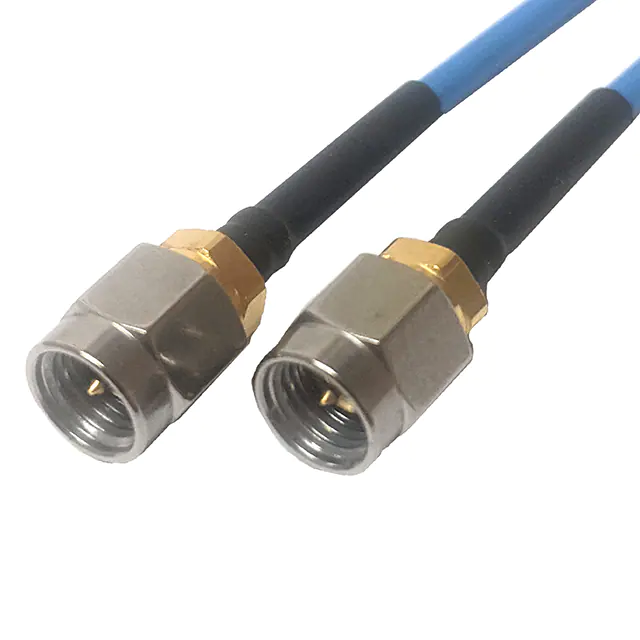

P1CA-SAMSAM-085CJ-96COAX CBL SMA TO SMA |
1,338 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | 0.085" Flexible Cable | 50 Ohms | - | - | 26.5 GHz | - | - | -85°C ~ 200°C | - | - |
|
|
PE3C8747/WH-12COAX CBL HD-BNC TO HD-BNC |
3,502 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | White | - | -30°C ~ 75°C | - | - |
|
095-850-166-060COAX CBL BNC TO BNC |
2,565 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | Belden 1694A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
|
PE3C8742/BL-36COAX CBL BNC TO HD-BNC |
2,384 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to HD-BNC | BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|

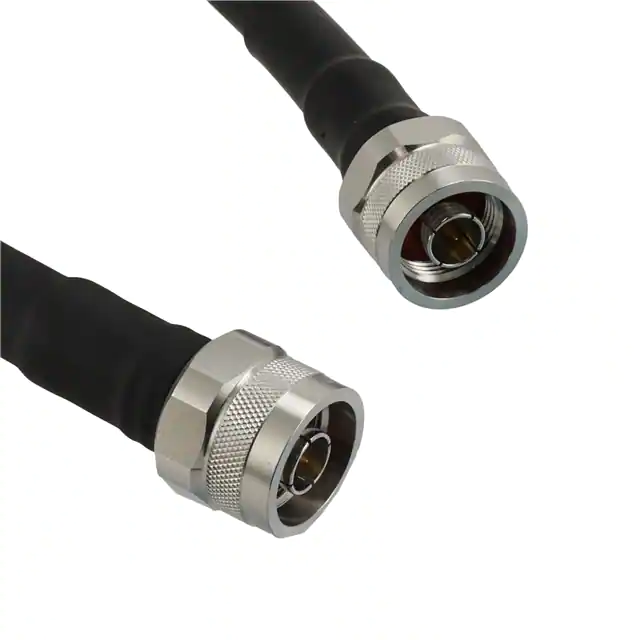

LUF400NMNM3.0FCOAX CBL N-TYPE TO N-TYPE |
3,620 |
|
Datasheet |
LMR® | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 2.5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|

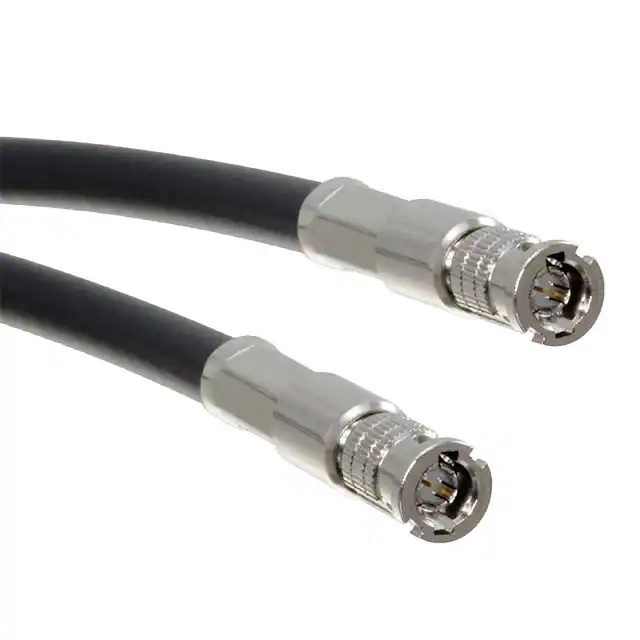

095-850-159-018COAX CBL HD-BNC TO HD-BNC |
3,215 |
|
Datasheet |
- | Bulk | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Belden 1505A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|

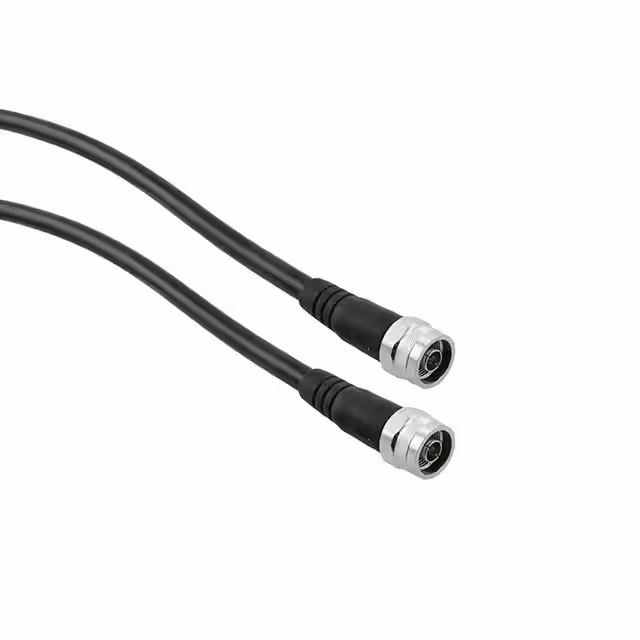

LFR400NMNM3.0FCOAX CBL N-TYPE TO N-TYPE |
4,078 |
|
Datasheet |
LMR® | Bag | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | LMR 400 | 50 Ohms | - | 50 Ohms | 2.5 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
PE3CA1103-6COAX CBL SMA TO CABLE |
3,193 |
|
Datasheet |
- | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | - | - | 125°C | - | - |
|
135111-07-12.00COAX CBL SMA TO SMA |
4,203 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-142 | 50 Ohms | - | 50 Ohms | 1 GHz | Copper | Shielded | - | - | - |
|
|
PE3CA1105-3COAX CBL SMA TO TEST POINT |
3,641 |
|
Datasheet |
- | Retail Package | Active | SMA to Test Point | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.000" (76.20mm) | - | - | 50 Ohms | 50 Ohms | 6 GHz | Tan | - | 125°C | - | - |
|
|
095-850-239-008COAX CBL BNC TO HD-BNC |
4,648 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Belden 1855A | - | - | 75 Ohms | 3 GHz | Black | Shielded | - | - | - |
|
|
PE3C8747/BL-120COAX CBL HD-BNC TO HD-BNC |
1,783 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Blue | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/OR-120COAX CBL HD-BNC TO HD-BNC |
1,406 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/YW-120COAX CBL HD-BNC TO HD-BNC |
4,685 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Yellow | - | -30°C ~ 75°C | - | - |
|
|
PE3C8747/GR-120COAX CBL HD-BNC TO HD-BNC |
2,205 |
|
Datasheet |
- | Tape & Box (TB) | Active | HD-BNC to HD-BNC | HD-BNC Plug | Male | Free Hanging (In-Line) | - | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 4855R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Green | - | -30°C ~ 75°C | - | - |
|
|
PE3CA1106-6COAX CBL SMA TO CABLE |
1,122 |
|
Datasheet |
- | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 0.047" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Silver | - | 125°C | - | - |
|
|
PE39424-18COAX CBL SMA TO SMA |
1,626 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | - | - | -55°C ~ 125°C | - | - |
|
|
PE3CA1102-6COAX CBL SMA TO CABLE |
1,851 |
|
Datasheet |
- | Retail Package | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | Free Hanging (In-Line) | - | 6.000" (152.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | 125°C | - | - |
|
|
VA03-00250SMMSMM-NCOAX CBL SMA TO SMA |
3,749 |
|
- |
VA03 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 2.50mm OD Coaxial Cable | - | - | 50 Ohms | 40 GHz | Violet | - | - | - | - |
