Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

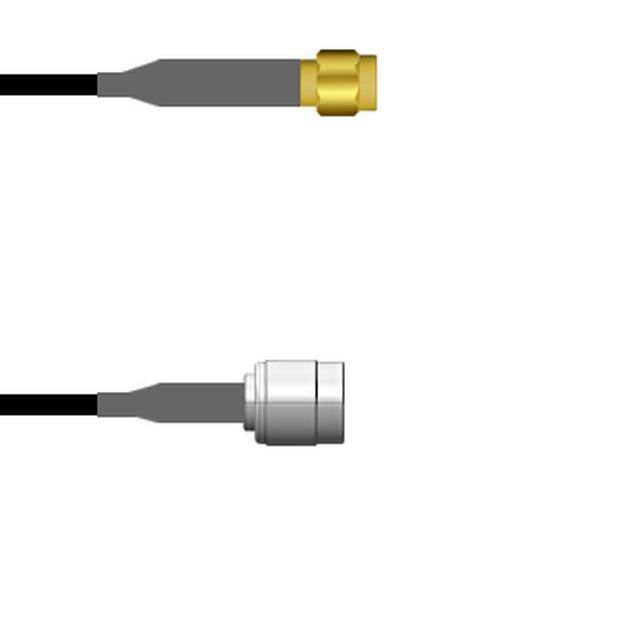

Q-680520003001MCOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

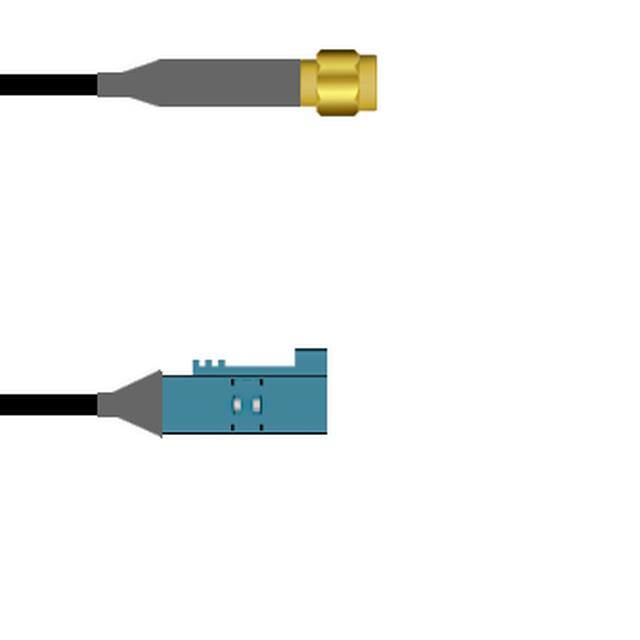

Q-6805E0003.25MCOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Plug | Female | Free Hanging (In-Line) | - | Fakra I (Gen 1.0) Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
PE3C8741/OR-36COAX CBL BNC TO BNC |
3,655 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | Belden 4694R | 75 Ohms | 75 Ohms | 75 Ohms | 12 GHz | Orange | - | -30°C ~ 75°C | - | - |
|
Q-6804G0003.25MCOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-6804F0003018ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
P1CA-STMSTM-ST085-36COAX CBL SMA TO SMA |
1,910 |
|
Datasheet |
P1CA | Box | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | ST085 | - | - | - | 18 GHz | Blue | - | -55°C ~ 125°C | - | - |
|
Q-6805A0005.25MCOAX CBL RP-SMA TO FAKRA II |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra II | RP-SMA Plug | Female | Free Hanging (In-Line) | - | Fakra I (Gen 1.0) Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Copper | Shielded | - | - | - |
|

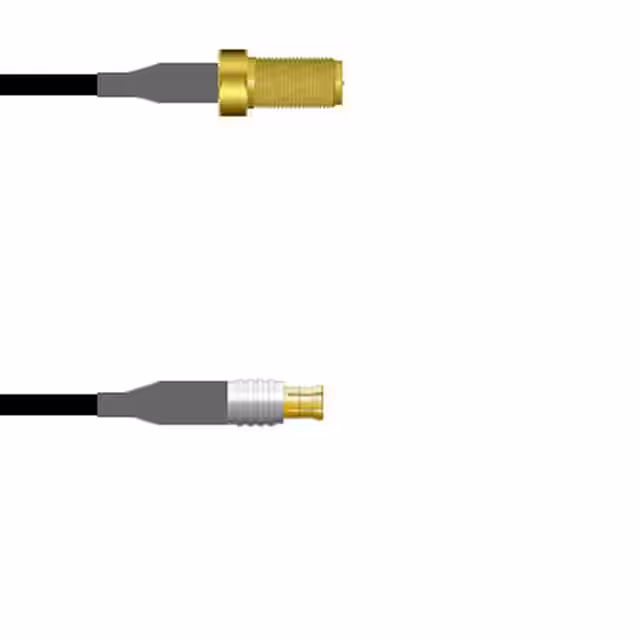

Q-7101F00031.5MCOAX CBL RP-SMA TO MCX |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to MCX | RP-SMA Jack | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

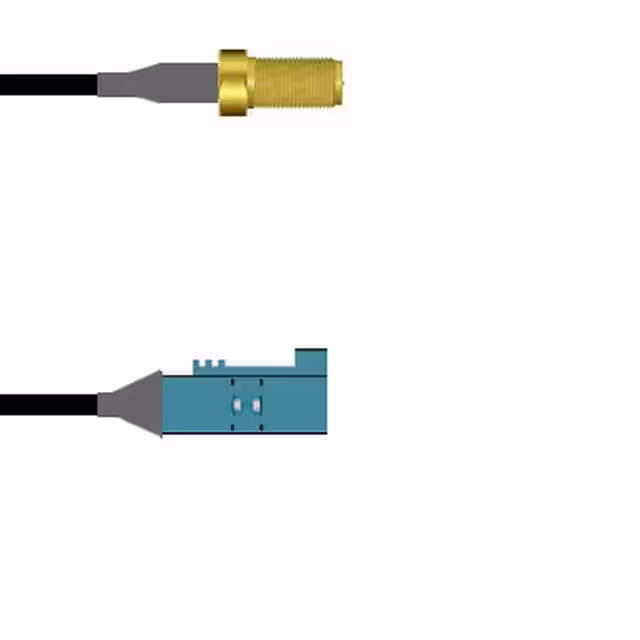

Q-7105E0003024ICOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

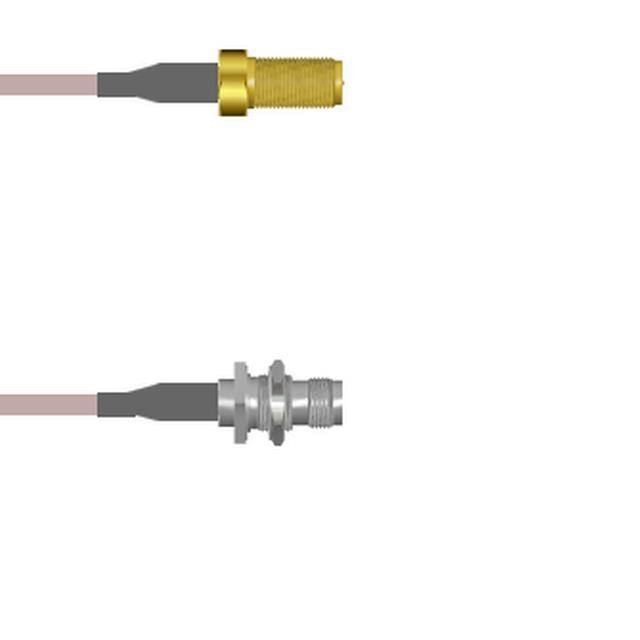

Q-7104F0005009ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 9.000" (228.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

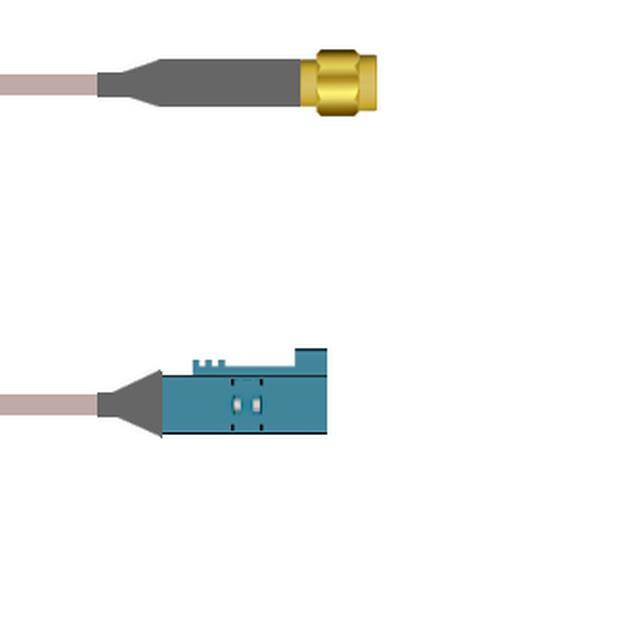

Q-6805E0005003ICOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Plug | Female | Free Hanging (In-Line) | - | Fakra I (Gen 1.0) Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-7104G0003024ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-680520005012ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

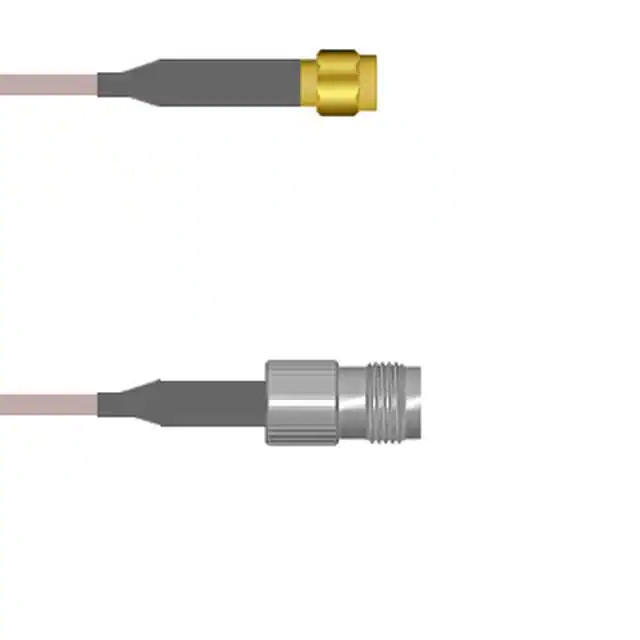

Q-6804G0005003ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

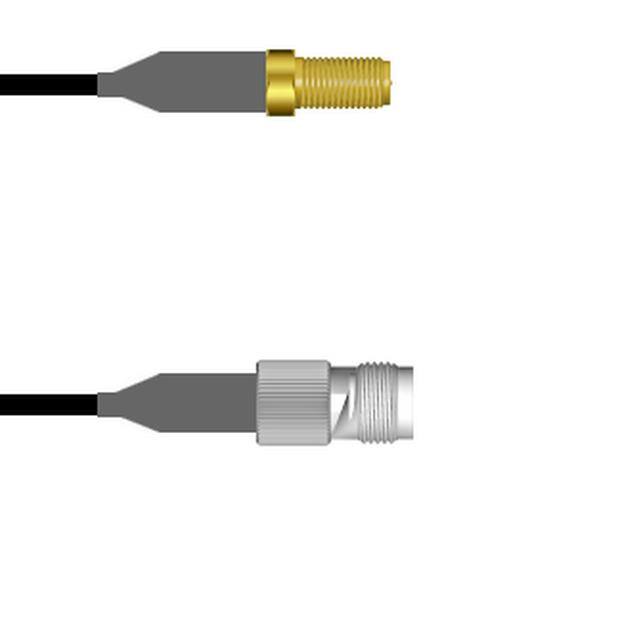

Q-7204J0008024ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|

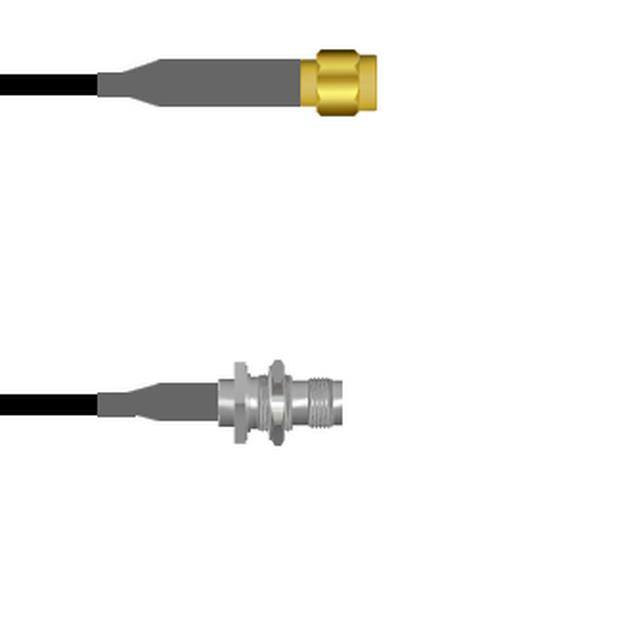

Q-6804F00030.5MCOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 19.69" (500.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-6805E0003012ICOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Plug | Female | Free Hanging (In-Line) | - | Fakra I (Gen 1.0) Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
095-850-210-250COAX CBL U.FL AMC TO BNC |
1,208 |
|
Datasheet |
- | Bulk | Active | U.FL (UMCC), AMC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

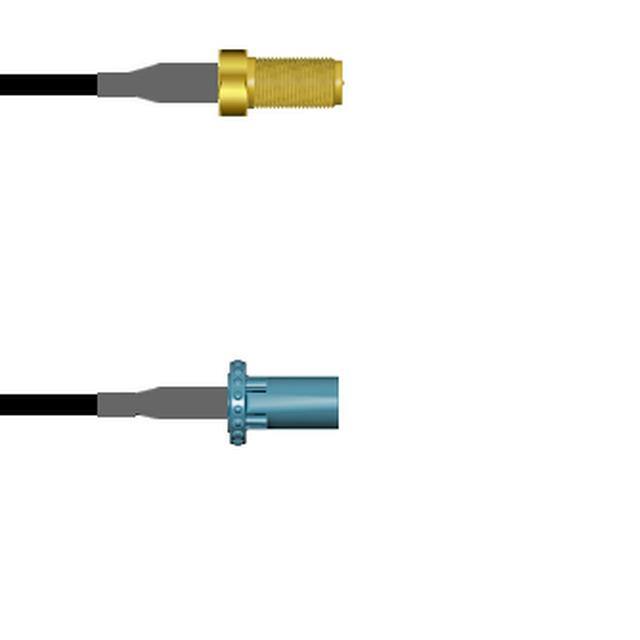

Q-7105A0003048ICOAX CBL RP-SMA TO FAKRA II |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra II | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-6804G0003012ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
