Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

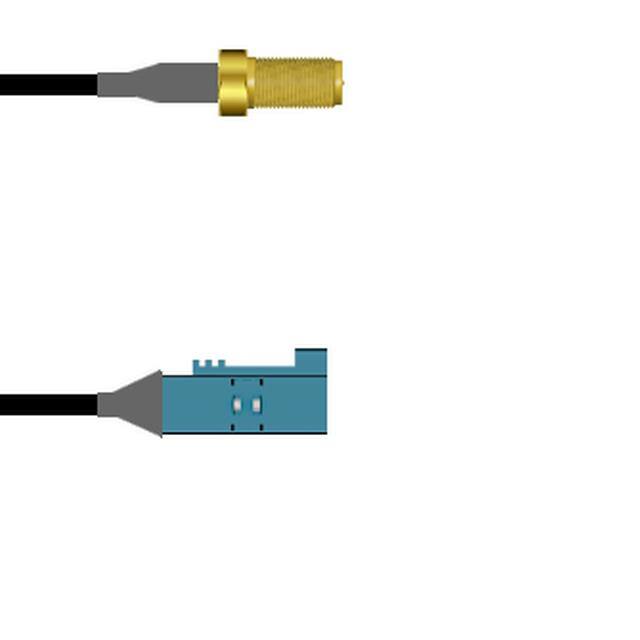

Q-7105E0003003ICOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
8859620R048COAX CBL SMA TO SMA |
4,877 |
|
Datasheet |
COAX-CBL-RS | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | -40°C ~ 85°C | - | - |
|

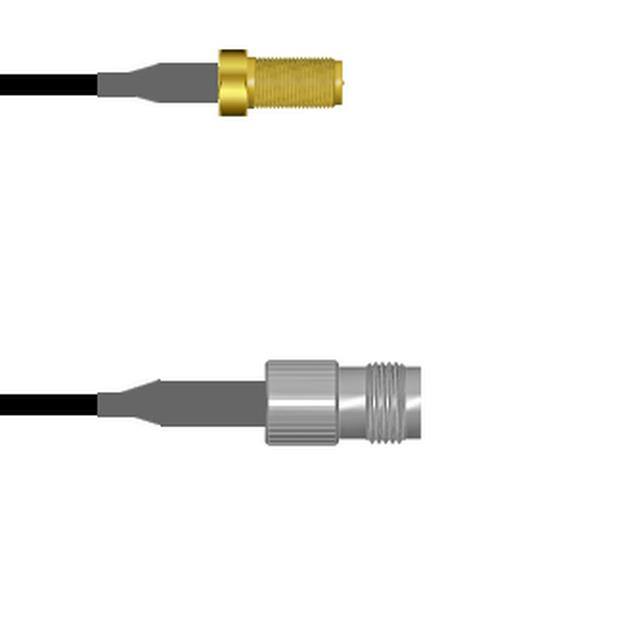

Q-7104G0003003ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
PE3C8813/BL-120COAX CBL BNC TO BNC |
1,624 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Blue | - | -20°C ~ 75°C | - | - |
|
|
PE3C8813/RD-120COAX CBL BNC TO BNC |
1,105 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Red | - | -20°C ~ 75°C | - | - |
|
|
PE3C8813/OR-120COAX CBL BNC TO BNC |
2,426 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | Belden 1694A | 75 Ohms | 75 Ohms | 75 Ohms | 6 GHz | Orange | - | -20°C ~ 75°C | - | - |
|

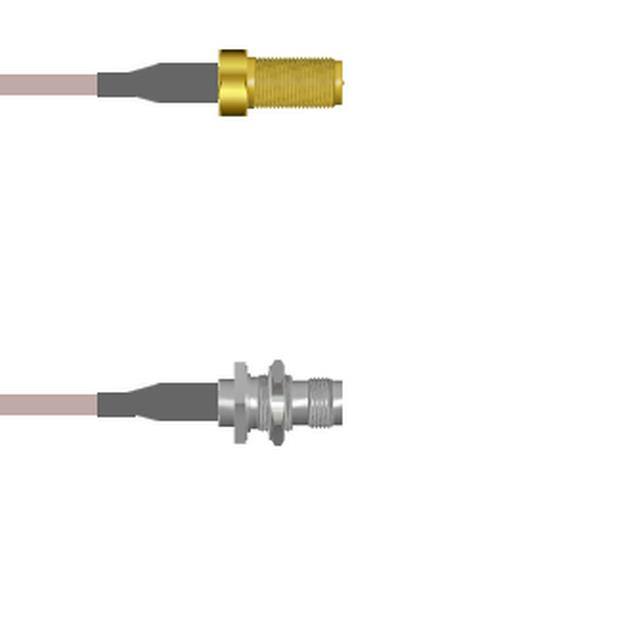

Q-7104F0005003ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000" (76.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

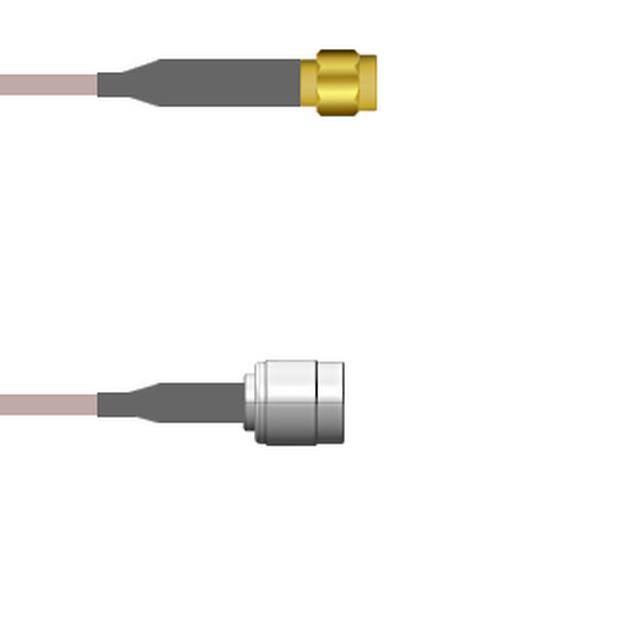

Q-680520005006ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|

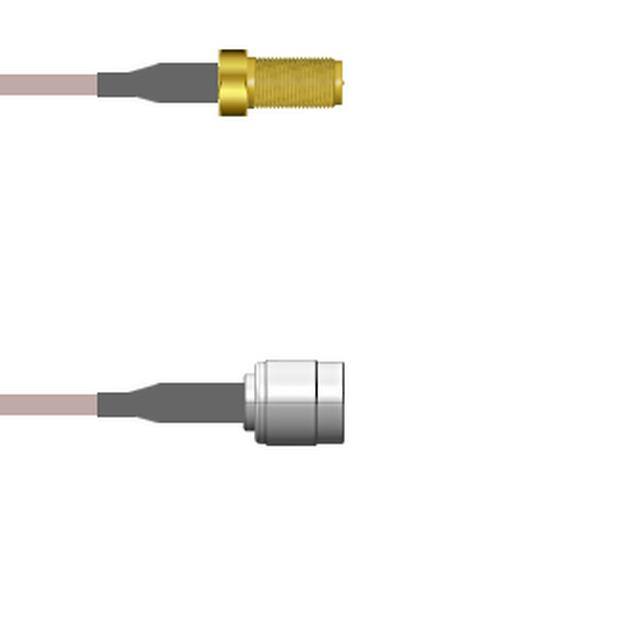

Q-710520005.25MCOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-7104F0003012ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
P1CA-SMBUFL-U137-3.4COAX CBL U.FL TO SMPM |
4,570 |
|
Datasheet |
P1CA | Bulk | Active | U.FL (UMCC) to SMPM | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMPM Jack | Female | Free Hanging (In-Line) | - | 3.40" (86.36mm) | 1.37mm OD Coaxial Cable | - | - | - | 6 GHz | Black | - | - | - | - |
|
Q-7105E0003006ICOAX CBL RP-SMA TO FAKRA III |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra III | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

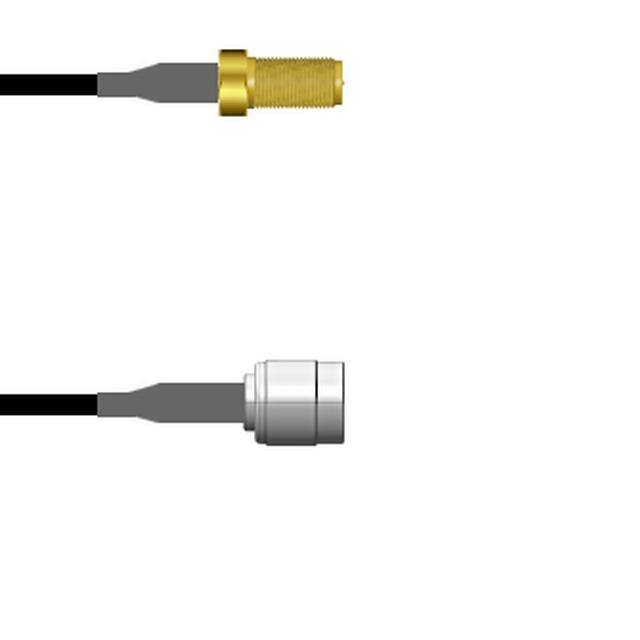

Q-710520003036ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

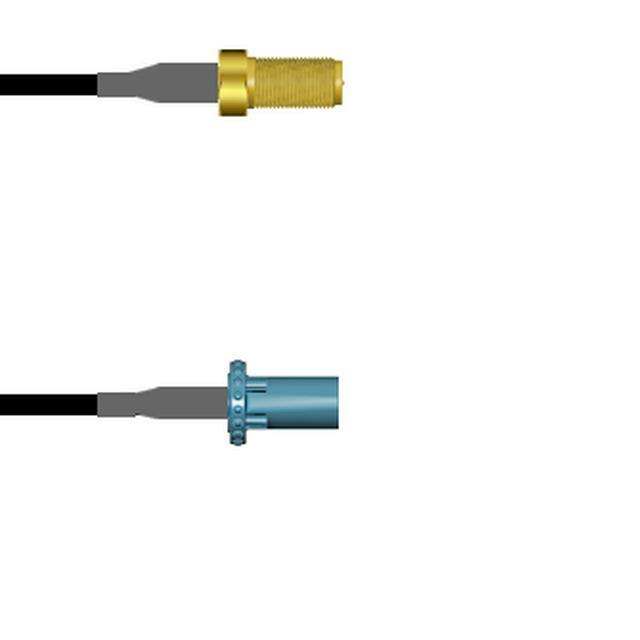

Q-7105A0003.75MCOAX CBL RP-SMA TO FAKRA II |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra II | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-7104G0003006ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Jack | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

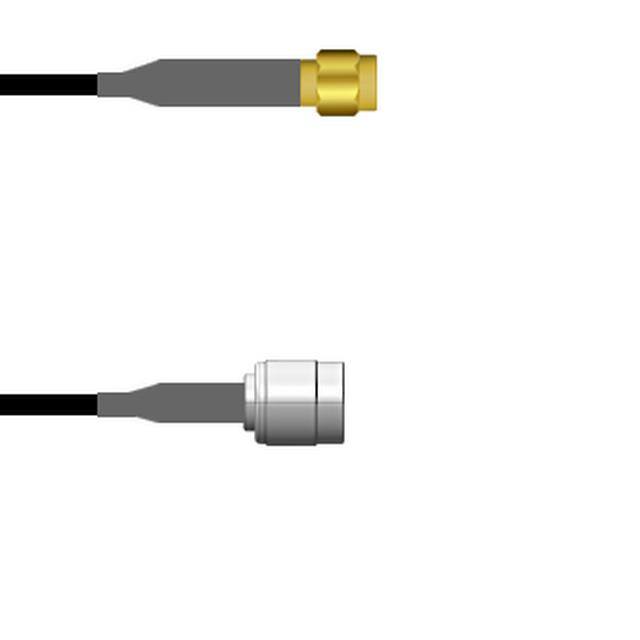

Q-680520003024ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|

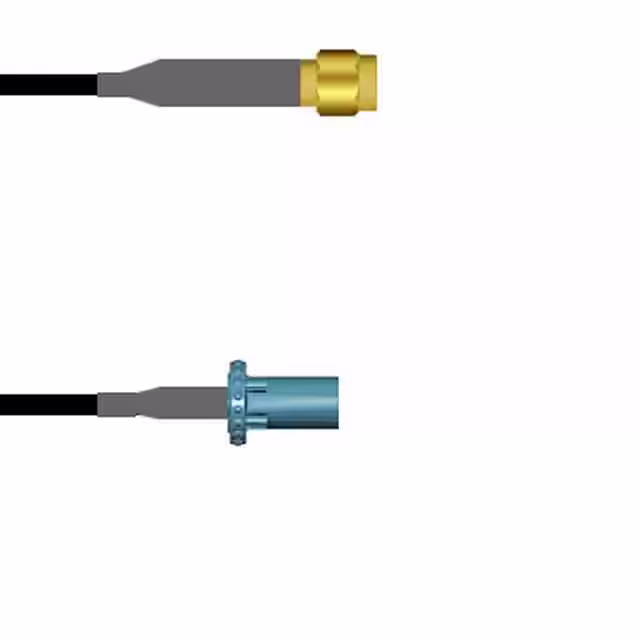

Q-6805A0003018ICOAX CBL RP-SMA TO FAKRA II |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra II | RP-SMA Plug | Female | Free Hanging (In-Line) | - | Fakra I (Gen 1.0) Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
Q-7105A0005009ICOAX CBL RP-SMA TO FAKRA II |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to Fakra II | RP-SMA Jack | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | - | - | - |
|
Q-6804F0003003ICOAX CBL RP-SMA TO TNC |
100 |
|
Datasheet |
- | Bag | Active | RP-SMA to TNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.000" (76.20mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
PE39428-9COAX CBL SMA TO SMA |
3,080 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 10 GHz | Silver | - | - | - | - |
