Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
086-9SMRC+COAX CBL SMA TO SMA |
2,848 |
|
Datasheet |
086 SMRC+ | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | - | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
086-11SMRSM+COAX CBL SMA TO SMA |
1,210 |
|
Datasheet |
086 SMRSM | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 11.000" (279.40mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
245101-04-M0.75COAX CBL BNC TO SMA |
4,936 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
CC58C-1.5COAX CBL BNC TO BNC |
3,285 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58C | 50 Ohms | - | - | - | Black | - | - | - | - |
|
|
BU-4150059048COAX CBL SMA TO N-TYPE |
1,299 |
|
Datasheet |
BU | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
85240996CBL ASSY |
2,246 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BU-4150028M1.5COAX CBL BNC TO SMA |
3,408 |
|
Datasheet |
BU | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | -65°C ~ 150°C | - | - |
|
255101-01-06.00COAX CBL MCX TO MCX |
4,930 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-902-514-006COAX CBL SMA TO SMA |
3,634 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
095-902-515-006COAX CBL RP-SMA TO RP-SMA |
1,202 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|
|
086-14SBSM+COAX CBL SMA TO SMA |
2,683 |
|
Datasheet |
086 SBSM | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 14.00" (355.60mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
095FPZFPZSH-024COAX CBL FAKRA TO FAKRA |
4,519 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C | - | - |
|
|
CO-213UHFMX20-005COAX CBL UHF TO UHF |
2,589 |
|
Datasheet |
- | Bag | Active | UHF to UHF | UHF Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-213 | 50 Ohms | - | - | - | Black | - | -40°C ~ 80°C | - | - |
|

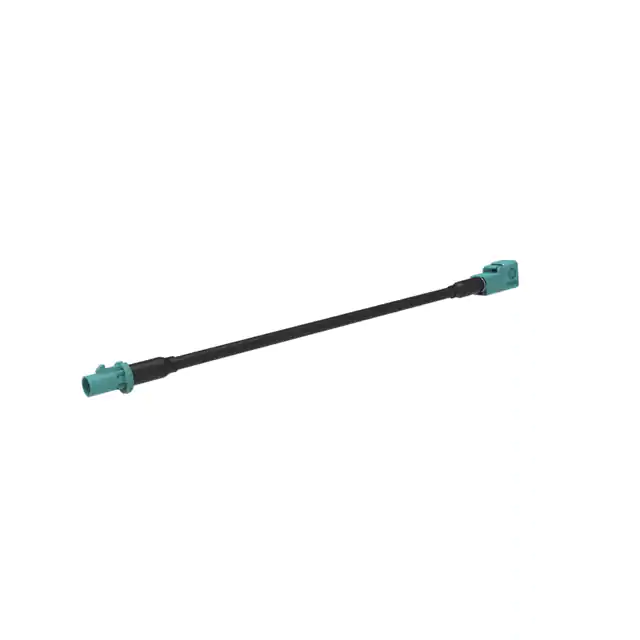

095FPZFJZSH-024COAX CBL FAKRA TO FAKRA |
3,189 |
|
Datasheet |
- | Bag | Active | Fakra to Fakra | Fakra III (Gen 3.0) Jack | Female | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | Shielded, Z Code | -40°C ~ 85°C | - | - |
|
|
CC174-12COAX CBL BNC TO BNC |
2,970 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-850-261-006COAX CBL BNC TO BNC |
2,980 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
BU-4150028M2.0COAX CBL BNC TO SMA |
4,990 |
|
Datasheet |
BU | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | -65°C ~ 150°C | - | - |
|
095-902-538-018COAX CBL RP-SMA TO RP-SMA |
4,070 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -65°C ~ 165°C | - | - |
|
|
CAB438RF-0100-A-1COAX CBL MMCX TO TNC |
4,686 |
|
Datasheet |
- | Bag | Active | MMCX to TNC | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -40°C ~ 125°C | - | - |
|
|
BU-4150038MM500COAX CBL SMA TO SMA |
1,428 |
|
Datasheet |
BU | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -65°C ~ 150°C | - | - |
