Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU-4150059MM750COAX CBL SMA TO N-TYPE |
1,495 |
|
Datasheet |
BU | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
141-9SMRSM+COAX CBL SMA TO SMA |
2,096 |
|
Datasheet |
141 SMRSM | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.000" (228.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
141-10SMRSM+COAX CBL SMA TO SMA |
1,658 |
|
Datasheet |
141 SMRSM | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
CC58C-2.5COAX CBL BNC TO BNC |
1,143 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 30.00" (762.00mm) | RG-58C | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-902-567-100COAX CBL U.FL AMC TO SMA |
3,074 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
AV-THLIN2BNCM-010COAX CBL BNC TO BNC |
2,395 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 120.0" (3.0m) 10.0' | RG-179 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | - | 80°C | - | - |
|
|
BU-4150028M1.0COAX CBL BNC TO SMA |
3,538 |
|
Datasheet |
BU | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | - | -65°C ~ 150°C | - | - |
|
|
095-902-587-150COAX CBL MHF1 LK TO RP-SMA |
3,237 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-902-587-200COAX CBL MHF1 LK TO RP-SMA |
1,455 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|

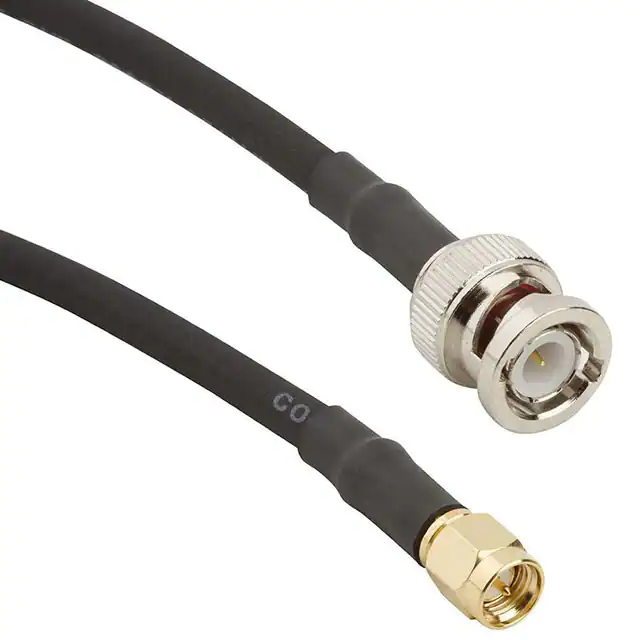

245101-04-18.00COAX CBL BNC TO SMA |
2,677 |
|
Datasheet |
- | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
095-902-587-300COAX CBL MHF1 LK TO RP-SMA |
1,710 |
|
Datasheet |
- | Bag | Active | I-PEX MHF1 LK to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
086-7SBSM+COAX CBL SMA TO SMA |
4,813 |
|
Datasheet |
086 SBSM | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 7.000" (177.80mm) | Hand Formable .086 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
L000869-03COAX CBL SMA TO SMA |
3,183 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Black | - | -30°C ~ 80°C | - | - |
|
|
2479977-1COAX CBL MMCX TO MMCX |
1,786 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 24.02" (610.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | -45°C ~ 125°C | - | - |
|
415-0003-MM750COAX CBL SMB TO SMB |
2,383 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
CC58C-05COAX CBL BNC TO BNC |
4,688 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58C | 50 Ohms | - | - | - | Black | - | - | - | - |
|
095Z820-162-006COAX CBL SMA TO FAKRA II |
1,557 |
|
Datasheet |
- | Bag | Active | SMA to Fakra II | SMA Plug | Male | Free Hanging (In-Line) | - | Fakra II (Gen 2.0) Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - | - | - |
|

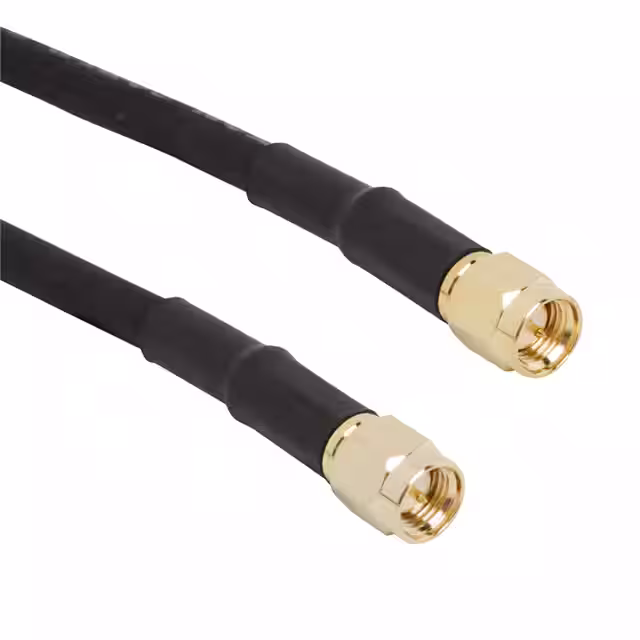

135101-04-18.00COAX CBL SMA TO SMA |
3,651 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
BU-4150038024COAX CBL SMA TO SMA |
100 |
|
Datasheet |
BU | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -65°C ~ 150°C | - | - |
|
|
BU-4150059012COAX CBL SMA TO N-TYPE |
4,510 |
|
Datasheet |
BU | Bag | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -65°C ~ 150°C | - | - |
