Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0073-018COAX CBL SMA TO MMCX |
3,318 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
CCN-MM-RG58-36COAX CBL N-TYPE TO N-TYPE |
3,797 |
|
Datasheet |
CCN | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | -40°C ~ 80°C | - | - |
|
095-850-274-048COAX CBL TNC TO TNC |
2,306 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
65503603230503COAX CBL SMA TO SMA |
2,291 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
59-048-1MCOAX CBL BNC TO BNC |
1,542 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | Shielded | 80°C | - | - |
|
115101-20-M1.00COAX CBL BNC TO BNC |
1,954 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|
0897616810COAX CBL SMA TO MMCX |
3,682 |
|
Datasheet |
89761 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|

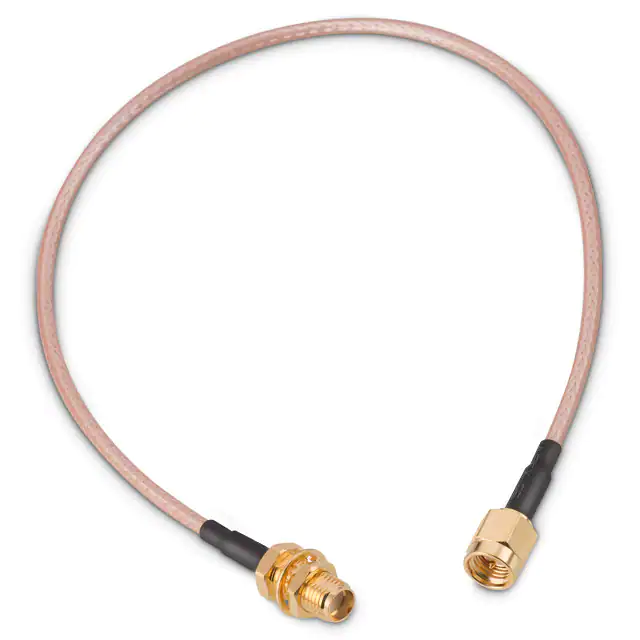

65503503230505COAX CBL SMA TO SMA |
2,978 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
115101-06-12.00COAX CBL BNC TO BNC |
3,635 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | Belden 8218 | 75 Ohms | 75 Ohms | 75 Ohms | - | Black | Shielded | - | - | - |
|
415-0001-MM150COAX CBL SMB TO SMB |
2,520 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Gray | Shielded | - | - | - |
|
|
415-0073-024COAX CBL SMA TO MMCX |
3,301 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
RF316-01SR1-03RP1-0305COAX CBL MMCX TO RP-SMA |
4,610 |
|
Datasheet |
RF316 | Bag | Active | MMCX to RP-SMA | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
415-0202-MM75COAX CBL SMA TO MMCX |
2,387 |
|
Datasheet |
- | Bag | Active | SMA to MMCX | SMA Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 2.953" (75.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0204-060COAX CBL SMA TO SMA |
1,177 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0205-024COAX CBL SMA TO SMA |
2,683 |
|
Datasheet |
- | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | - | - | - |
|
0732305314COAX CBL SMA TO SMA |
4,929 |
|
Datasheet |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | - | - | - | - | - | - | - |
|
415-0034-MM150COAX CBL SMA TO SMA |
1,263 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
415-0057-048COAX CBL BNC TO BNC |
4,785 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
245101-04-M0.25COAX CBL BNC TO SMA |
2,043 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
|
095-902-578-050COAX CBL U.FL AMC TO RP-SMA |
3,214 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
