Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCMX1-MM-RG316-12COAX CBL MMCX TO MMCX |
3,855 |
|
Datasheet |
CCMX1 | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CAB430RF-0200-A-1COAX CBL RP-SMA TO MHF5L |
1,285 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF5L | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF5L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
CCSMX-FBM-RG178-12COAX CBL SMA TO MMCX |
1,246 |
|
Datasheet |
CCSMX | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CCMX-MM-RG178-18COAX CBL MMCX TO MMCX |
2,299 |
|
Datasheet |
CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
MH113-MH1RP-01SB1-0100COAX CBL U.FL MHF1 TO SMA |
4,192 |
|
Datasheet |
MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
CCSMX1-FBM-RG316-18COAX CBL SMA TO MMCX |
3,864 |
|
Datasheet |
CCSMX1 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CSE-SBRM-610-SBRMCOAX CBL SMB TO SMB |
3,460 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C | - | - |
|
ASMGA015XC113S11COAX CBL SMA TO MHF4 |
3,124 |
|
Datasheet |
- | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -20°C ~ 60°C | - | - |
|

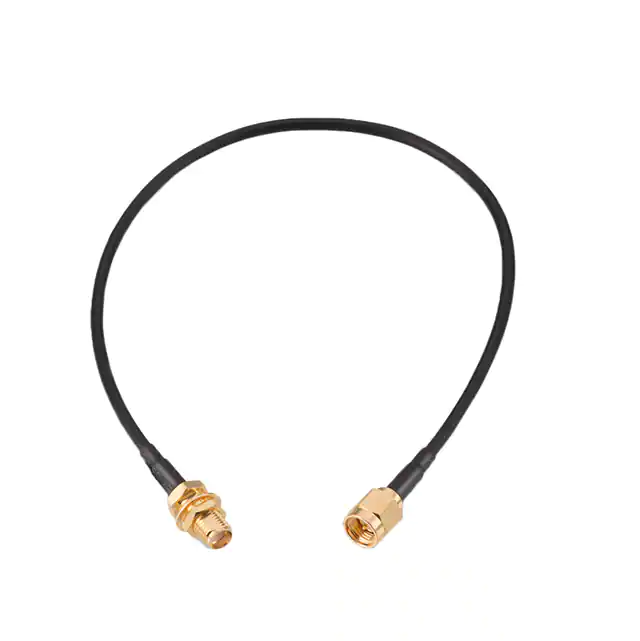

65503503215303COAX CBL SMA TO SMA |
2,503 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
415-0057-024COAX CBL BNC TO BNC |
2,621 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-59 | 75 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Black | Shielded | - | - | - |
|
415-0015-MM150COAX CBL MCX TO MCX |
2,947 |
|
Datasheet |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
65503503515301COAX CBL SMA TO SMA |
3,702 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
65503503230503COAX CBL SMA TO SMA |
1,388 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
MH113-MH1RP-01SB1-0300COAX CBL U.FL MHF1 TO SMA |
4,752 |
|
Datasheet |
MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
|
RF174-03RP1-03RP1-0152COAX CBL MMCX TO MMCX |
1,025 |
|
Datasheet |
RF174 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
0897616133COAX CBL MCX TO MCX |
3,676 |
|
Datasheet |
89761 | Bag | Active | MCX to MCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | - |
|
115101-20-06.00COAX CBL BNC TO BNC |
4,198 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|
|
65503503530501COAX CBL SMA TO SMA |
2,576 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
CABLE 379 RF-150-A-1COAX CBL MHF1 TO SMA |
4,207 |
|
Datasheet |
Nautilus | Bag | Active | I-PEX MHF1 to SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|

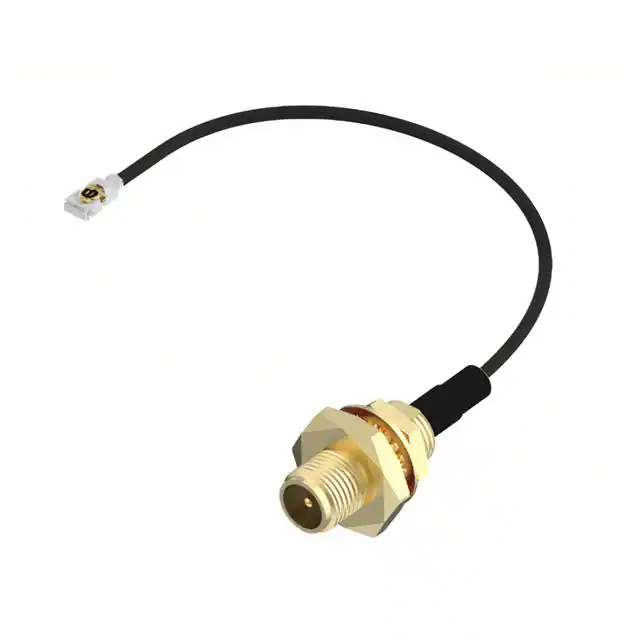

CAB466RF-0200-A-1COAX CBL RP-SMA TO MHF4L LK |
2,243 |
|
Datasheet |
Nautilus | Bag | Active | RP-SMA to I-PEX MHF4L LK | RP-SMA Jack | Male | Panel Mount | Bulkhead - Rear Side Nut | I-PEX MHF4L LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
