Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0001-018COAX CBL SMB TO SMB |
4,267 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Gray | Shielded | - | - | - |
|
RF174-02SP1-03RP1-0152COAX CBL MCX TO MMCX |
3,950 |
|
Datasheet |
RF174 | Bag | Active | MCX to MMCX | MCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF174-02RP1-03RP1-0152COAX CBL MCX TO MMCX |
4,559 |
|
Datasheet |
RF174 | Bag | Active | MCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
|
RF316-02RP1-03RP1-0152COAX CBL MMCX TO MMCX |
1,098 |
|
Datasheet |
RF316 | Bag | Active | MMCX to MMCX | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
415-0068-MM500COAX CBL MMCX TO MMCX |
3,607 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
095-900-557-300COAX CBL U.FL AMC TO MMCX |
1,783 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-900-548-018COAX CBL MMCX TO MMCX |
1,853 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
RF316-01BJ1-03SP1-0152COAX CBL MMCX TO SMA |
3,959 |
|
Datasheet |
RF316 | Bag | Active | MMCX to SMA | MMCX Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|

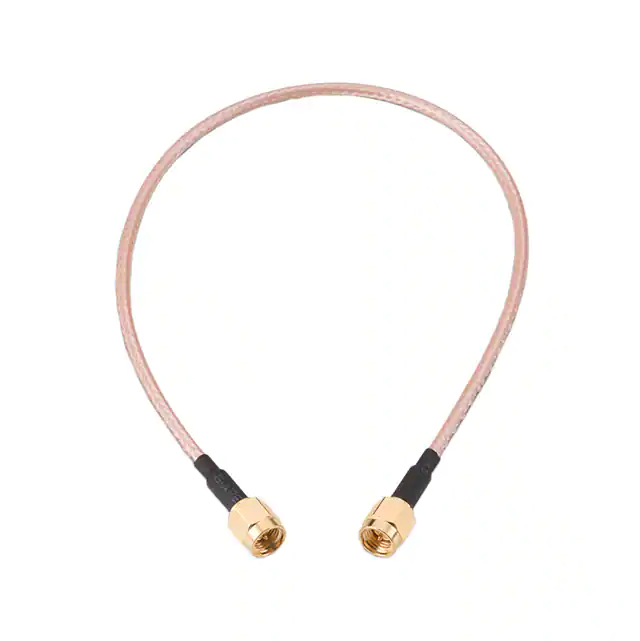

65503503530506COAX CBL SMA TO SMA |
1,636 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 DS | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 165°C | - | - |
|
65503603230501COAX CBL SMA TO SMA |
4,366 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RF316-01SP1-04SP3-0305COAX CBL BNC TO SMA |
1,551 |
|
Datasheet |
RF316 | Bag | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
265101-08-06.00COAX CBL MMCX TO MMCX |
3,619 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
095-900-553-300COAX CBL U.FL AMC TO MMCX |
2,699 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

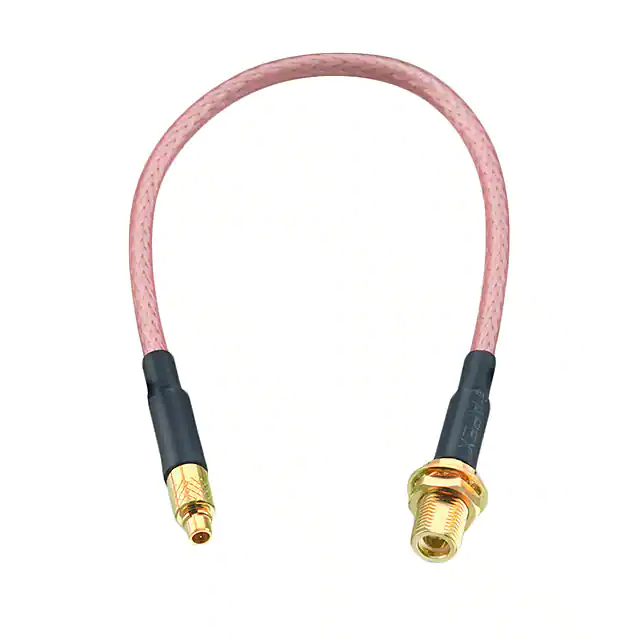

65560560215305COAX CBL MMCX TO MMCX |
1,932 |
|
Datasheet |
WR-CXASY | Bag | Active | MMCX to MMCX | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
0732309340COAX CBL SMA TO SMA |
4,319 |
|
- |
73230 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | Hand Formable .141 | - | - | 50 Ohms | - | Silver | - | - | - | - |
|
095-902-567-200COAX CBL U.FL AMC TO SMA |
4,585 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
|
095-902-578-300COAX CBL U.FL AMC TO RP-SMA |
4,779 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 11.811" (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
265101-08-12.00COAX CBL MMCX TO MMCX |
3,092 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|

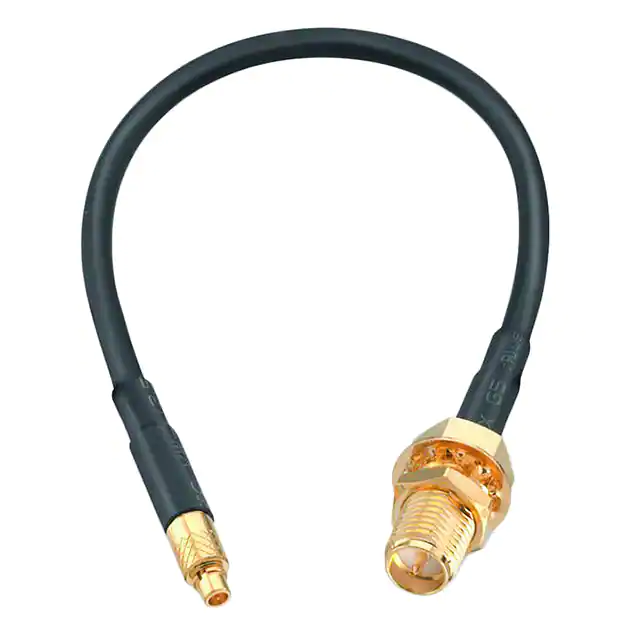

65530260515303COAX CBL RP-SMA TO MMCX |
1,455 |
|
Datasheet |
WR-CXASY | Bag | Active | RP-SMA to MMCX | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | -20°C ~ 80°C | - | - |
|
|
RF316-01RP1-01SP1-0152COAX CBL SMA TO SMA |
4,330 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
