Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-900-549-006COAX CBL MMCX TO MMCX |
4,087 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
RF316-05BJ3-03RP1-0152COAX CBL MMCX TO TNC |
4,862 |
|
Datasheet |
RF316 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
|
|
RF174-05BJ3-03RP1-0152COAX CBL MMCX TO TNC |
1,787 |
|
Datasheet |
RF174 | Bag | Active | MMCX to TNC | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
115101-19-M1.50COAX CBL BNC TO BNC |
4,239 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
095-902-572-050COAX CBL U.FL AMC TO SMA |
3,857 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
RF174-01SB1-02RP1-0305COAX CBL MCX TO SMA |
1,315 |
|
Datasheet |
RF174 | Bag | Active | MCX to SMA | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
265104-08-06.00COAX CBL MMCX TO MMCX |
3,836 |
|
Datasheet |
- | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
415-0004-M1.0COAX CBL SMB TO SMB |
1,967 |
|
Datasheet |
- | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

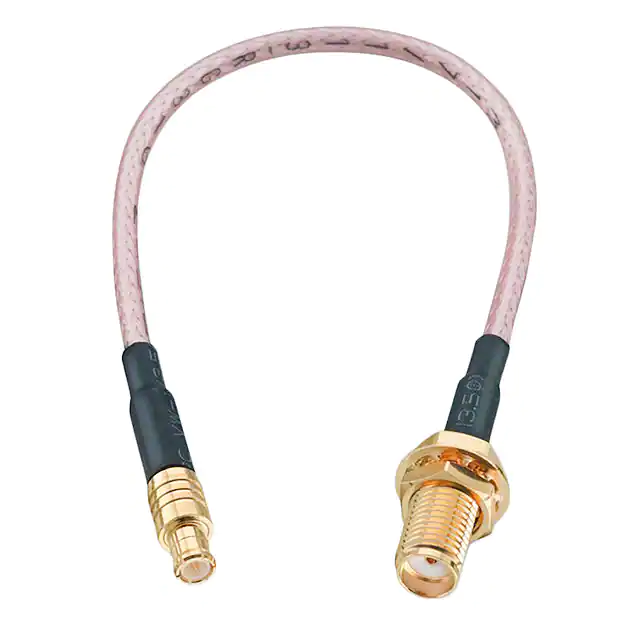

65503206515305COAX CBL SMA TO MCX |
1,323 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
095-902-567-300COAX CBL U.FL AMC TO SMA |
3,264 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | - | - | - |
|
095-850-272-012COAX CBL TNC TO TNC |
4,320 |
|
Datasheet |
TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
415-0034-MM500COAX CBL SMA TO SMA |
3,180 |
|
Datasheet |
- | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|

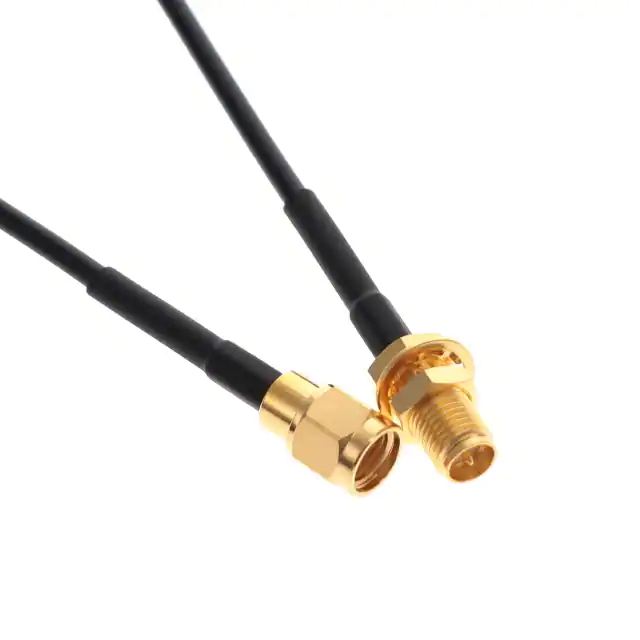

415-0201-012COAX CBL RP-SMA TO RP-SMA |
2,041 |
|
Datasheet |
- | Bag | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
RF174-04SP3-02SP1-0305COAX CBL BNC TO MCX |
3,355 |
|
Datasheet |
RF174 | Bag | Active | BNC to MCX | BNC Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
115101-20-60.00COAX CBL BNC TO BNC |
3,892 |
|
Datasheet |
- | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-59 | 75 Ohms | - | 75 Ohms | - | Black | - | - | - | - |
|
65503603215307COAX CBL SMA TO SMA |
4,429 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 12.4 GHz | Gray | Shielded | -65°C ~ 165°C | - | - |
|
|
095-902-572-150COAX CBL U.FL AMC TO SMA |
4,894 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-850-283-100COAX CBL U.FL AMC TO TNC |
4,104 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
141-6SMR+COAX CBL SMA TO SMA |
2,137 |
|
Datasheet |
141SMR | Bag | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
095-900-559-300COAX CBL U.FL AMC TO MCX |
3,373 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
