Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0071-036COAX CBL SMA TO MMCX |
2,915 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
095-900-557-200COAX CBL U.FL AMC TO MMCX |
4,613 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

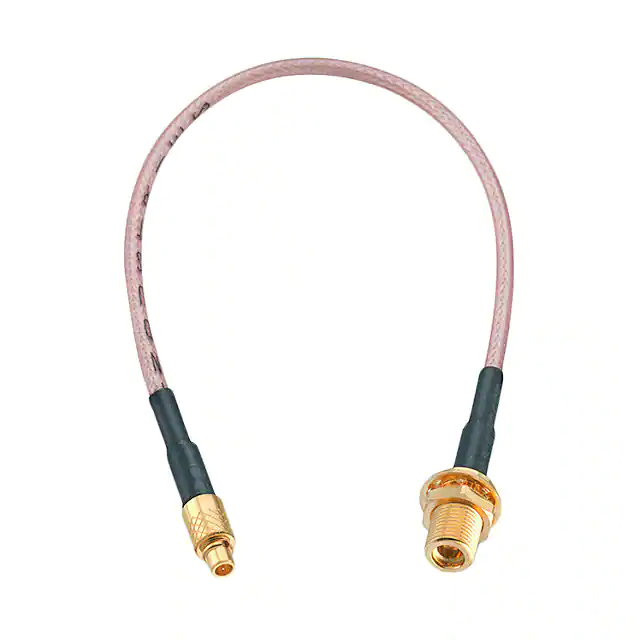

65560560215304COAX CBL MMCX TO MMCX |
3,180 |
|
Datasheet |
WR-CXASY | Bag | Active | MMCX to MMCX | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
RF174-03RP1-03RP1-0305COAX CBL MMCX TO MMCX |
4,073 |
|
Datasheet |
RF174 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
415-0068-MM150COAX CBL MMCX TO MMCX |
4,280 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
095-902-578-100COAX CBL U.FL AMC TO RP-SMA |
1,216 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
|
415-0068-MM250COAX CBL MMCX TO MMCX |
1,459 |
|
Datasheet |
- | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
095-900-553-200COAX CBL U.FL AMC TO MMCX |
2,733 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-900-548-006COAX CBL MMCX TO MMCX |
4,777 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
65503503515307COAX CBL SMA TO SMA |
3,964 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -65°C ~ 165°C | - | - |
|

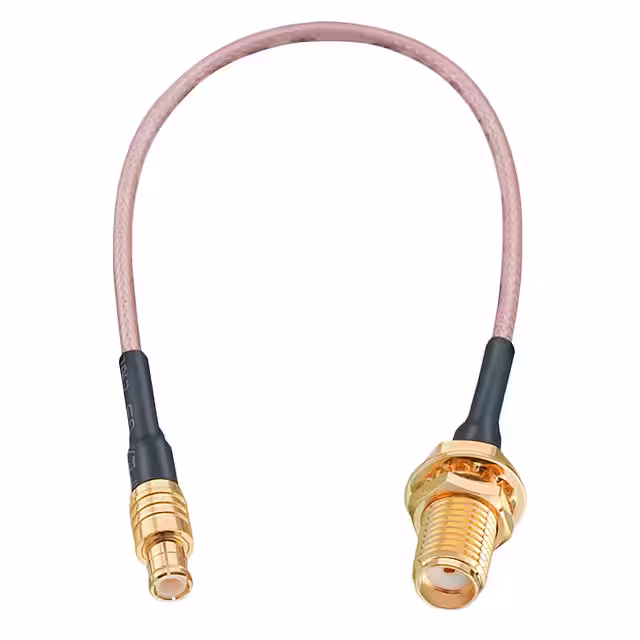

65503206515304COAX CBL SMA TO MCX |
3,018 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|
|
095-902-578-150COAX CBL U.FL AMC TO RP-SMA |
1,176 |
|
Datasheet |
- | Bag | Active | U.FL (UMCC), AMC to RP-SMA | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | - | - | - | - |
|
415-0073-036COAX CBL SMA TO MMCX |
1,901 |
|
Datasheet |
- | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
|
RF174-01SB1-01SP1-0305COAX CBL SMA TO SMA |
2,025 |
|
Datasheet |
RF174 | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.01" (305.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|

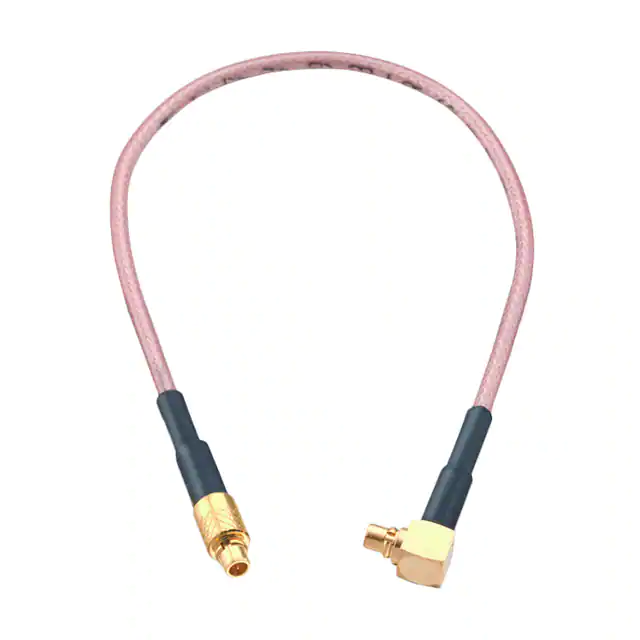

65560660515304COAX CBL MMCX TO MMCX |
4,992 |
|
Datasheet |
WR-CXASY | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | -55°C ~ 155°C | - | - |
|

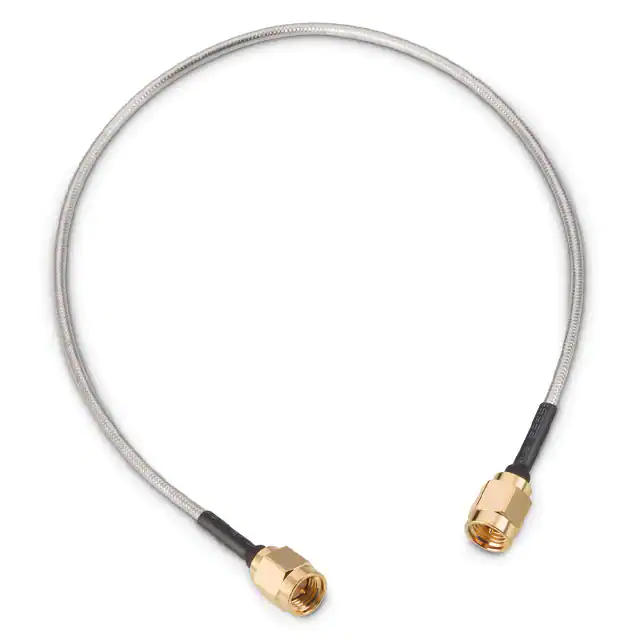

65503503515308COAX CBL SMA TO SMA |
3,775 |
|
Datasheet |
WR-CXASY | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | Hand Formable .085 | - | - | 50 Ohms | 18 GHz | Silver | Shielded | -65°C ~ 165°C | - | - |
|
|
RF174-01BJ1-03RP1-0152COAX CBL MMCX TO SMA |
4,771 |
|
Datasheet |
RF174 | Bag | Active | MMCX to SMA | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.984" (152.00mm) | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -50°C ~ 90°C | - | - |
|
0897616801COAX CBL SMA TO MMCX |
2,125 |
|
Datasheet |
89761 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
095-900-548-012COAX CBL MMCX TO MMCX |
4,143 |
|
Datasheet |
MMCX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
RF316-01SP1-01SP1-0152COAX CBL SMA TO SMA |
3,477 |
|
Datasheet |
RF316 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Amber | - | -50°C ~ 165°C | - | - |
