Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

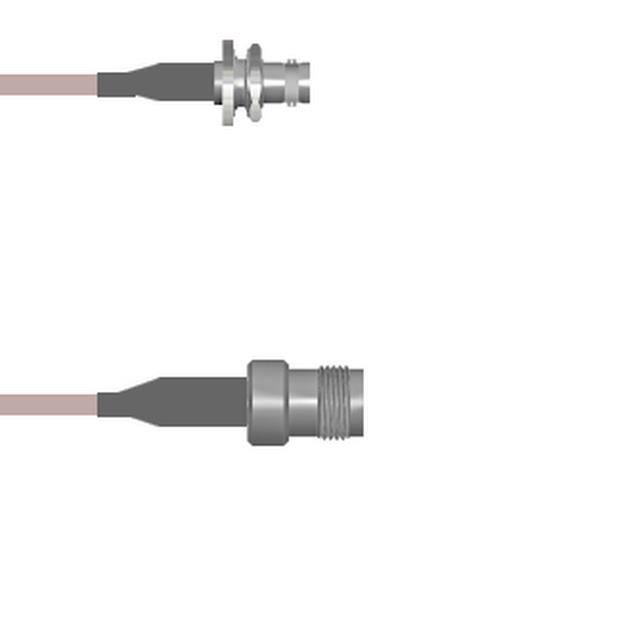

Q-0A04N000H003MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A04O000H003MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

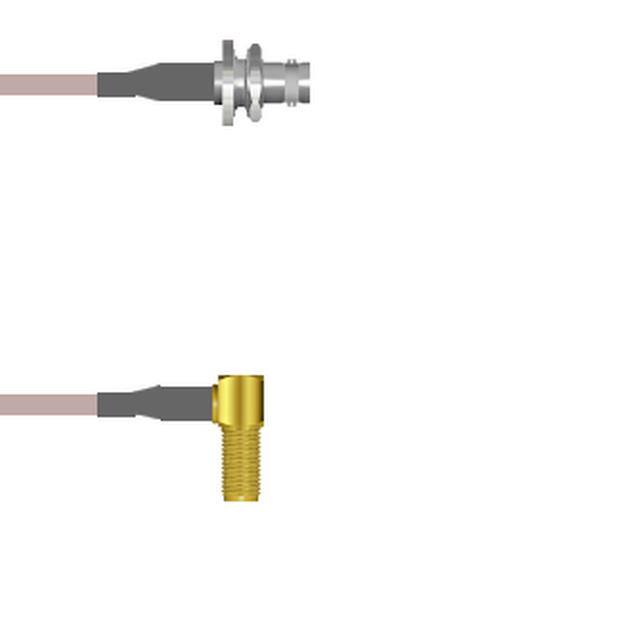

Q-0A02S000H2.5MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

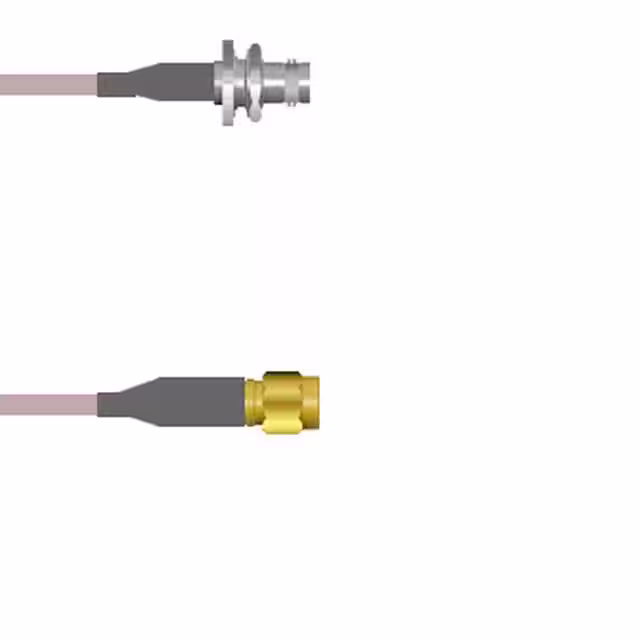

Q-0A03F000H003MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

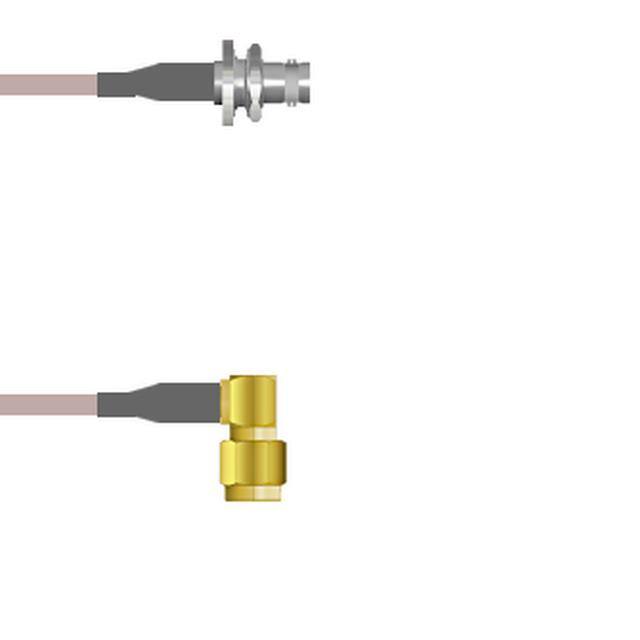

Q-0A038000H2.5MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A00Y000H003MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

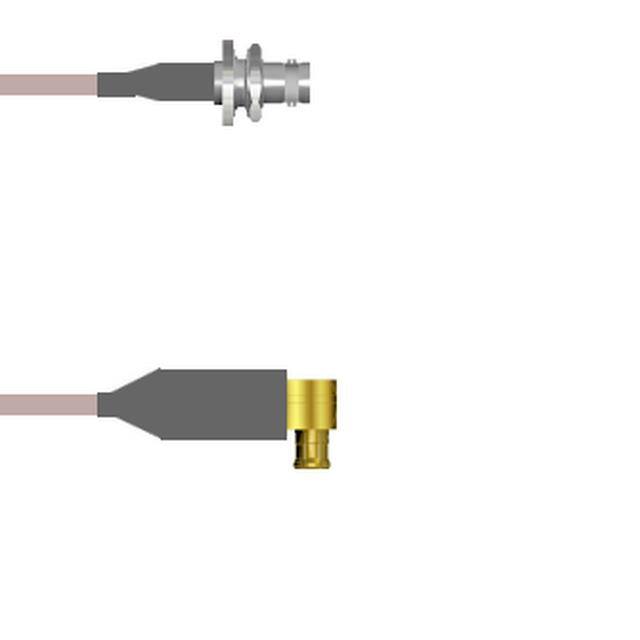

Q-0A019000H2.5MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

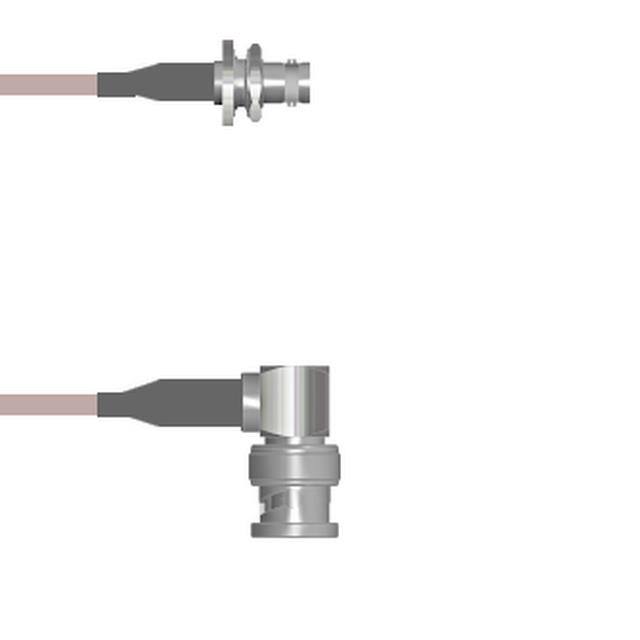

Q-0A00F000H003MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

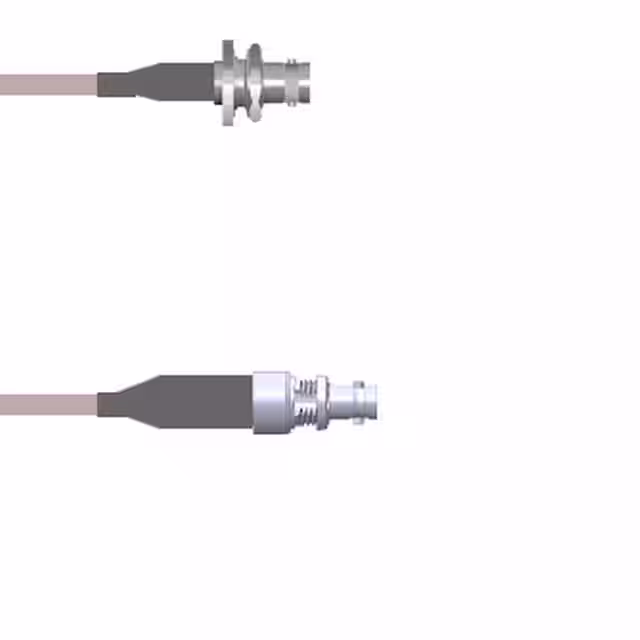

Q-0A00S000H003MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

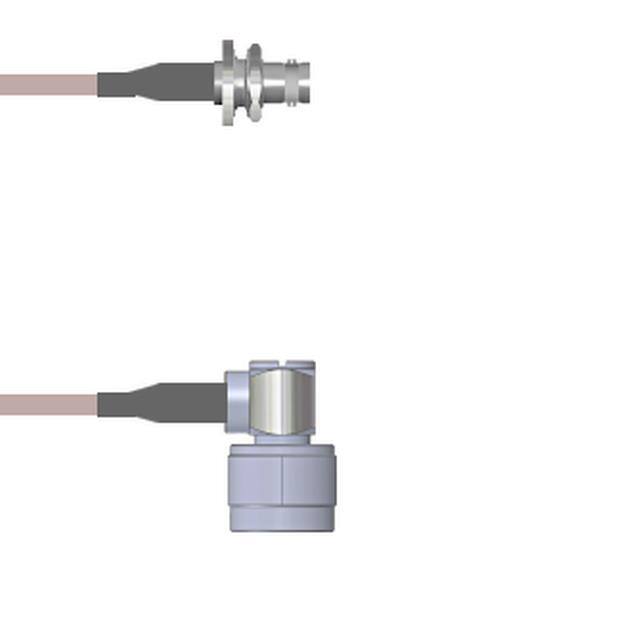

Q-0A02G000H003MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

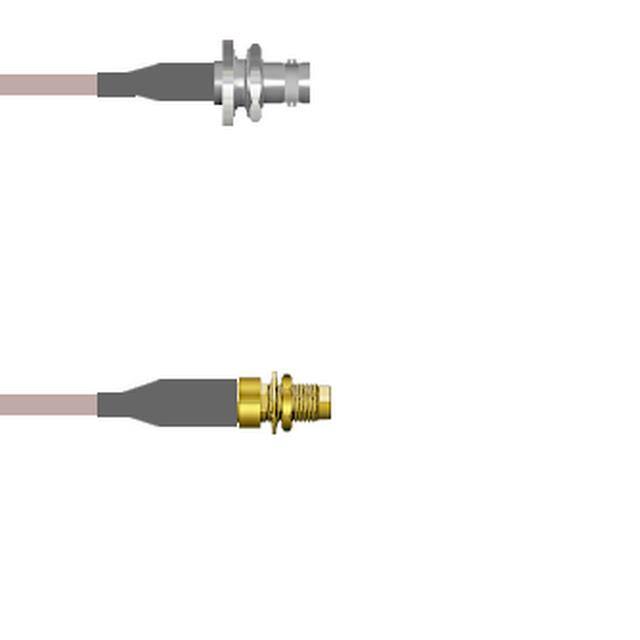

Q-0A031000H003MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-400-LSZH-BM-TMRA(QTY:200M)COAX CBL BNC TO TNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-716FC-SFRP(QTY:200M)COAX CBL 7/16 DIN TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | 7/16 DIN to RP-SMA | 7/16 Jack | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-BF-BMRA(QTY:200M)COAX CBL BNC TO BNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-BMRA-NMRA(QTY:200M)COAX CBL BNC TO N-TYPE |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-BM-UMRA(QTY:200M)COAX CBL BNC TO UHF |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to UHF | BNC Plug | Male | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-BM-TF(QTY:200M)COAX CBL BNC TO TNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to TNC | BNC Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-BF-SF(QTY:200M)COAX CBL BNC TO SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-716M-4195M(QTY:200M)COAX CBL 7/16 DIN TO 4.1/9.5 |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | 7/16 DIN to 4.1/9.5 | 7/16 Plug | Male | Free Hanging (In-Line) | - | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-NMRA-UM(QTY:200M)COAX CBL N-TYPE TO UHF |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | N-Type to UHF | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | UHF Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
