Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

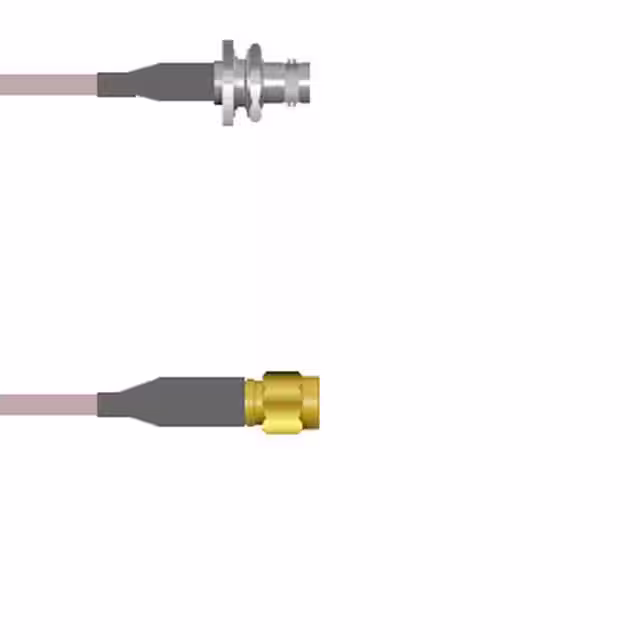

Q-0A03F000H2.5MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

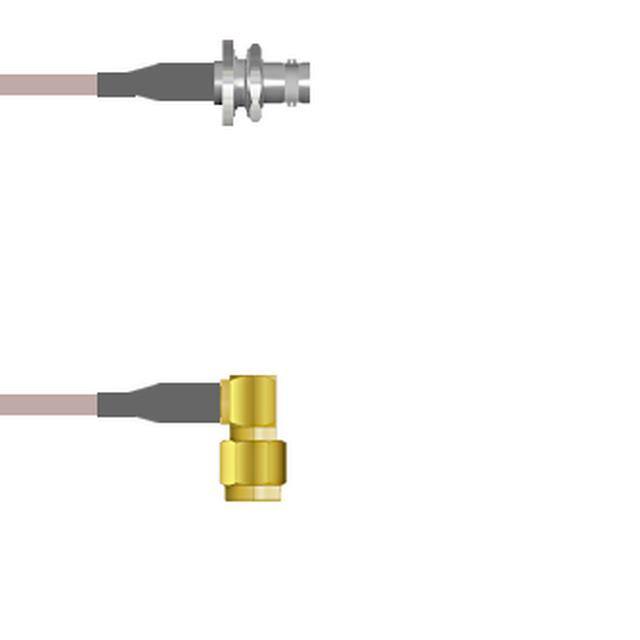

Q-0A038000H002MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

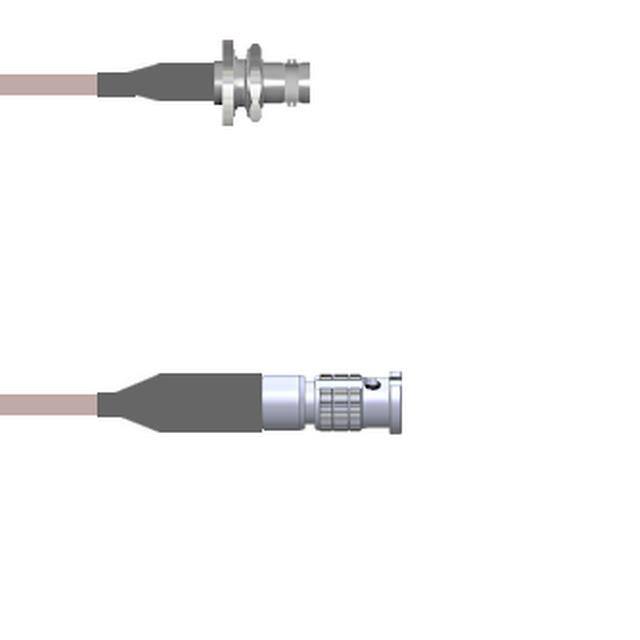

Q-0A00Y000H2.5MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A019000H002MCOAX CBL BNC TO MCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A00F000H2.5MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

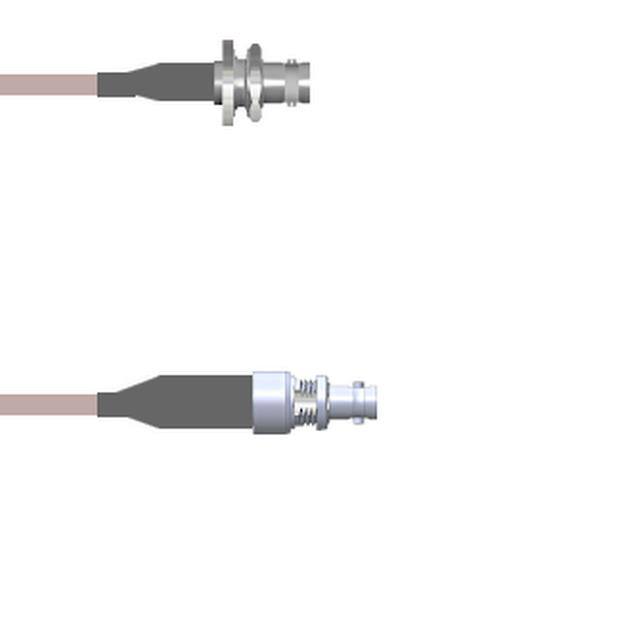

Q-0A00S000H2.5MCOAX CBL BNC TO HD-BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to HD-BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | HD-BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A02J000H003MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

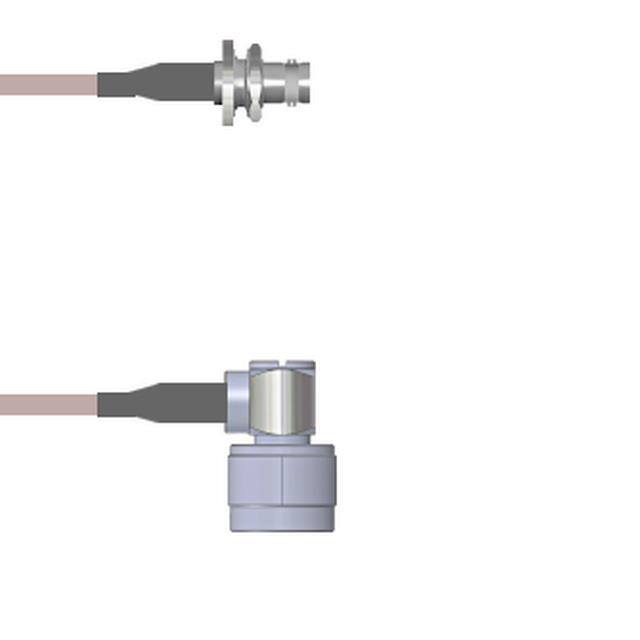

Q-0A02G000H2.5MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

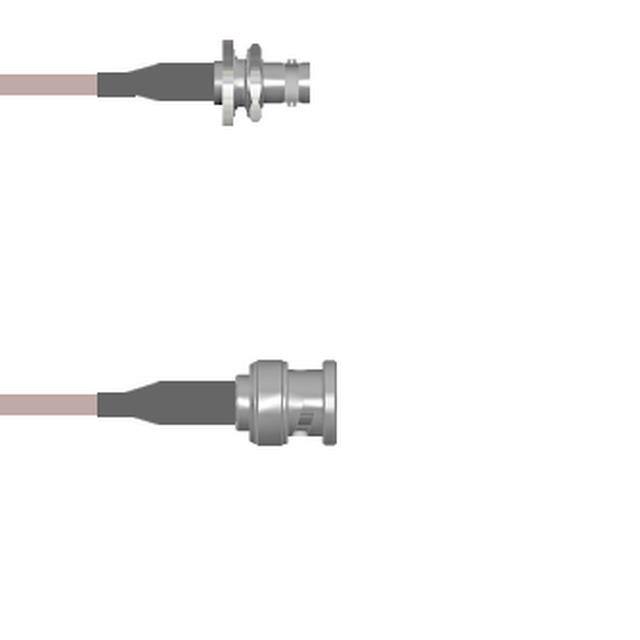

Q-0A00M000H003MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
LMR-240-FR-NM-NM(QTY:200M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-240-FR-SM-SM(QTY:200M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7874.0" (200.0m) 656.2' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

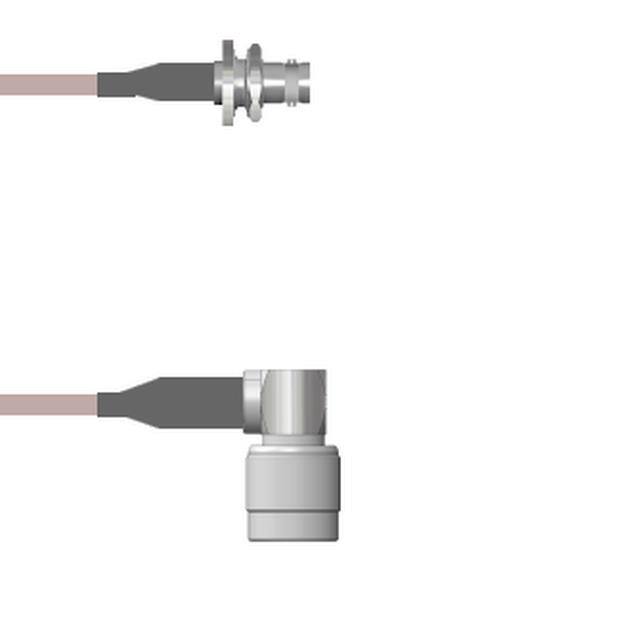

Q-0A04X000H003MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

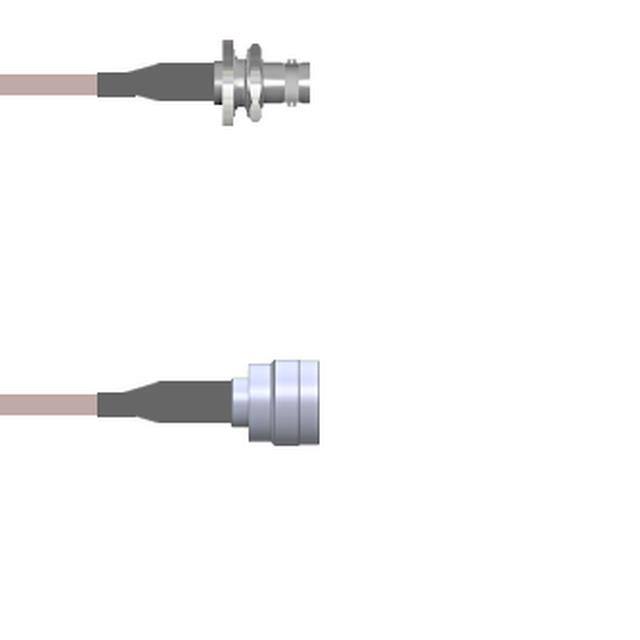

Q-0A056000H003MCOAX CBL BNC TO TNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to TNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

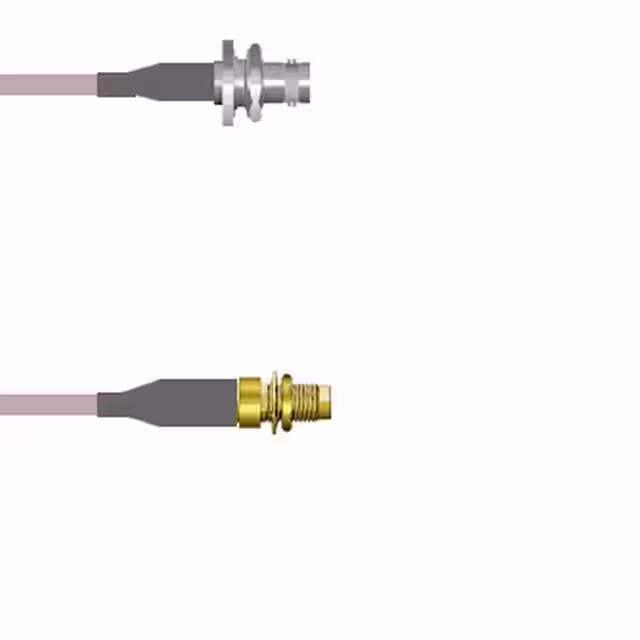

Q-0A031000H2.5MCOAX CBL BNC TO SMA |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A025000H003MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-900-FR-NM-NF(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-FR-NM-NM(QTY:80ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 960.0" (24.4m) 80.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
Q-0A00B000H003MCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
Q-0A024000H003MCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

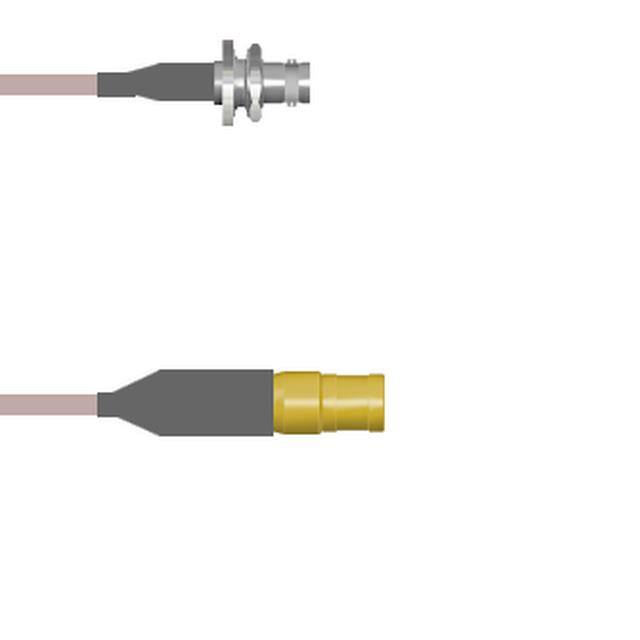

Q-0A03Y000H2.5MCOAX CBL BNC TO SMB |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Male | Free Hanging (In-Line) | - | 98.4" (2.5m) 8.2' | RG-142 | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
