Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-75-FR-NM-NM(QTY:100ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-75-FR-FM-FM(QTY:100ft)COAX CBL F-TYPE TO F-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
RG142-TNC-TNC(QTY:55m)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG142-SMRP-SMRP(QTY:55m)COAX CBL RP-SMA TO RP-SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG142-NF-NF(QTY:55m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG142-NM-SMRP(QTY:55m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | RP-SMA to N-Type | RP-SMA Jack | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG142-BM-SM(QTY:55m)COAX CBL BNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
RG142-NF-NM(QTY:55m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | RG-142 | 50 Ohms | - | - | 3 GHz | - | - | -55°C ~ 200°C | - | - |
|
|
LMR-400-SM-SM(QTY:60m)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2362.2" (60.0m) 196.9' | LMR 400 | 50 Ohms | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|

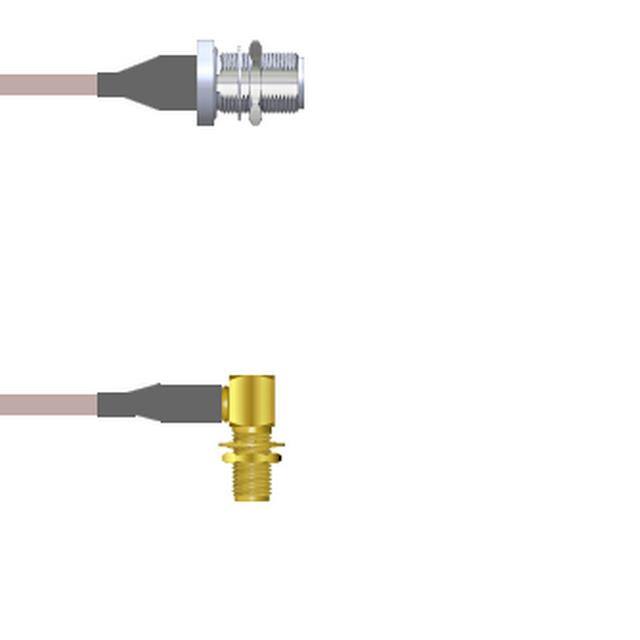

Q-2202Q000R108iCOAX CBL SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
PE3C3242-150CMCOAX CBL SMA TO TNC |
298 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE34760LF-60COAX CBL HN TO LC |
232 |
|
Datasheet |
- | Retail Package | Active | HN to LC | HN Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C8191-60LC Male to MHV Male Cable 60 Inc |
157 |
|
Datasheet |
- | Retail Package | Active | MHV to LC | MHV Plug | Male | Free Hanging (In-Line) | - | LC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3W10235-60COAX CBL 1.85MM TO 2.92MM |
2,084 |
|
Datasheet |
- | Retail Package | Active | 1.85mm to 2.92mm | 1.85mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | 0.047" Semi-Rigid Cable | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Tan | - | - | - | - |
|
|
PE36265-367/16 DIN Male Right Angle to 7/1 |
2,272 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3C5655-36HN Male to LC Male Right Angle C |
2,653 |
|
Datasheet |
- | Retail Package | Active | HN to LC | HN Plug | Male | Free Hanging (In-Line) | - | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | -20°C ~ 80°C | - | - |
|
|
LMR-600-UM-UM(QTY:35M)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | Free Hanging (In-Line) | - | 1378.0" (35.0m) 114.8' | LMR 600 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

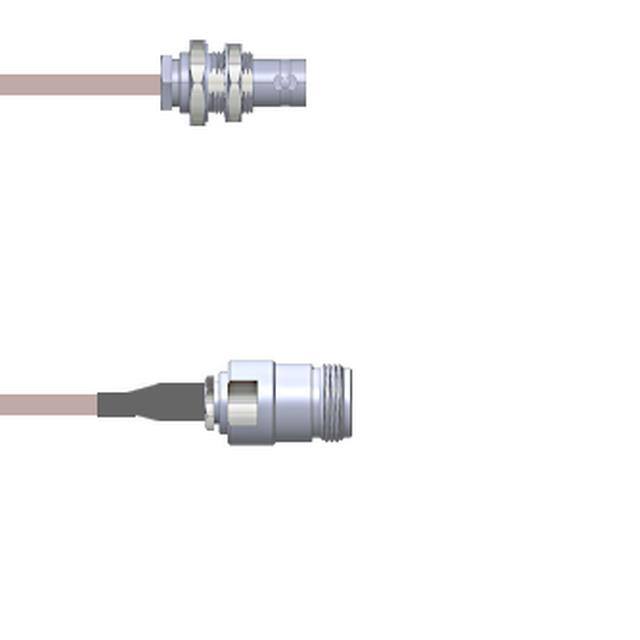

Q-0701V000R108iCOAX CBL BNC TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | BNC to N-Type | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|
|
LMR-400-LSZH-BM-SMRP(QTY:55M)COAX CBL BNC TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | BNC to RP-SMA | BNC Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-716FC-4310M(QTY:55M)COAX CBL 7/16 DIN TO 4.3/10 |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | 7/16 DIN to 4.3/10 | 7/16 Jack | Female | Free Hanging (In-Line) | - | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
