Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG214-LSZH-TM-UMRA(QTY:45M)COAX CBL TNC TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to UHF | TNC Plug | Male | Free Hanging (In-Line) | - | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-NF-NMRA(QTY:45M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TF-TM(QTY:45M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-4310M-716FC(QTY:45M)COAX CBL 4.3/10 TO 7/16 DIN |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | 4.3/10 to 7/16 DIN | 4.3/10 Plug | Male | Free Hanging (In-Line) | - | 7/16 Jack | Female | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-UMRA-UM(QTY:45M)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | UHF Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-BMRA(QTY:45M)COAX CBL TNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to BNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-BF(QTY:45M)COAX CBL TNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to BNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Jack | Female | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-TF(QTY:45M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | TNC Jack | Female | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-BM(QTY:45M)COAX CBL TNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to BNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
RG214-LSZH-TMRA-SM(QTY:45M)COAX CBL TNC TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to SMA | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | 1.1 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|

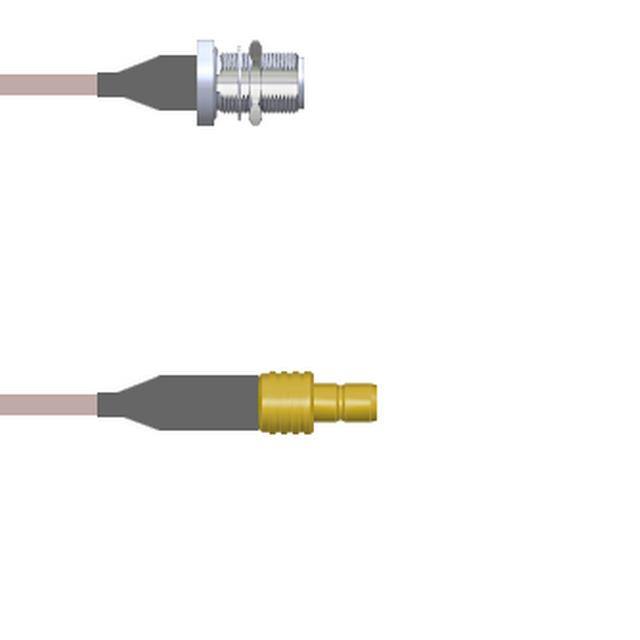

Q-2203N000R108iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Jack | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
LMR-600-75-NM-NM(QTY:100ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1200.0" (30.5m) 100.0' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-600-75-FR-NM-NM(QTY:18m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-600 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 708.7" (18.0m) 59.1' | LMR 600 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
PE3C2305-200CMSMA Male Right Angle to SMA Fema |
148 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | PE-P142LL | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3W06696LF-144COAX CBL 7/16 DIN TO HN |
2,479 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | 7/16 Plug | Male | Free Hanging (In-Line) | - | HN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 144.0" (3.7m) 12.0' | RG-217 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C3237-150CMCOAX CBL SMA TO N-TYPE |
1,500 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C1144-48COAX CBL TNC TO TNC |
2,917 |
|
Datasheet |
- | Retail Package | Active | TNC to TNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
LMR-400-75-NMH-NMH(Qty:55m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 75 Ohms | - | 75 Ohms | 2.5 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-75-FM-FM(Qty:55m)COAX CBL F-TYPE TO F-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | F-Type to F-Type | F-Type Plug | Male | Free Hanging (In-Line) | - | F-Type Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 75 Ohms | - | 75 Ohms | 2.5 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-400-75-NM-NM(QTY:55m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 75 Ohms | - | 75 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
