Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RG214-SM-SM(QTY:45M)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|

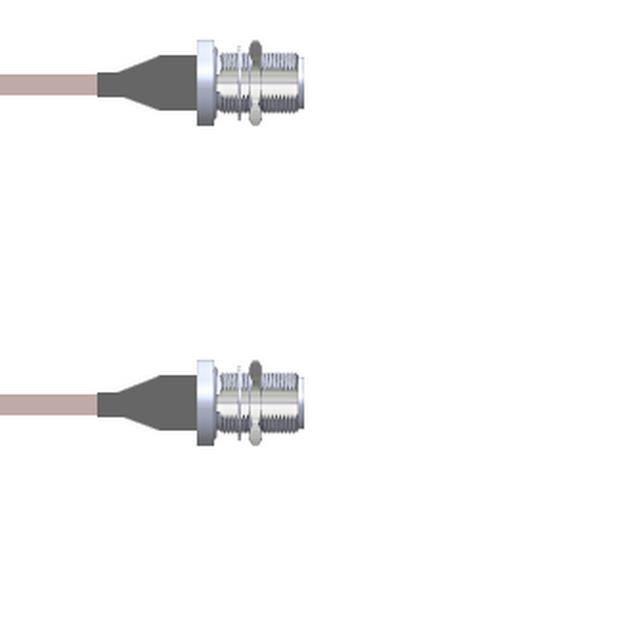

Q-22022000R084iCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 84.0" (2.1m) 7.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
LMR-240-UF-SM-SM(QTY:65m)COAX CBL SMA TO SMA |
10,000 |
|
Datasheet |
LMR®-240 | Tape & Box (TB) | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2559.0" (65.0m) 213.2' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|

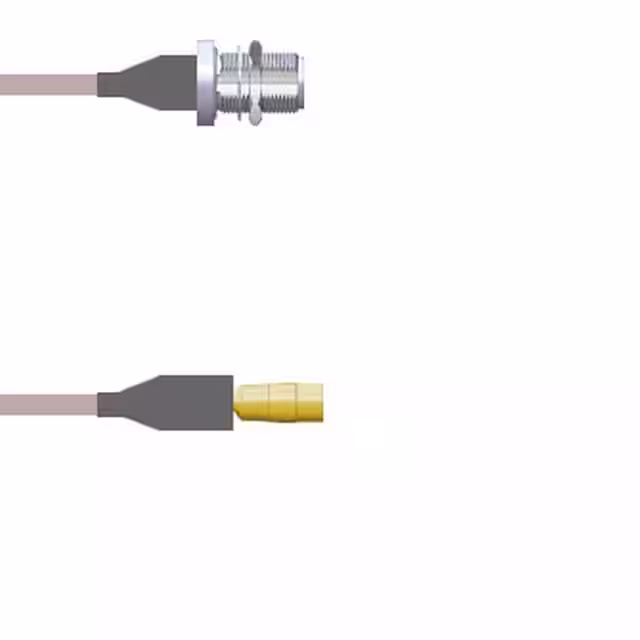

Q-2201L000R108iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

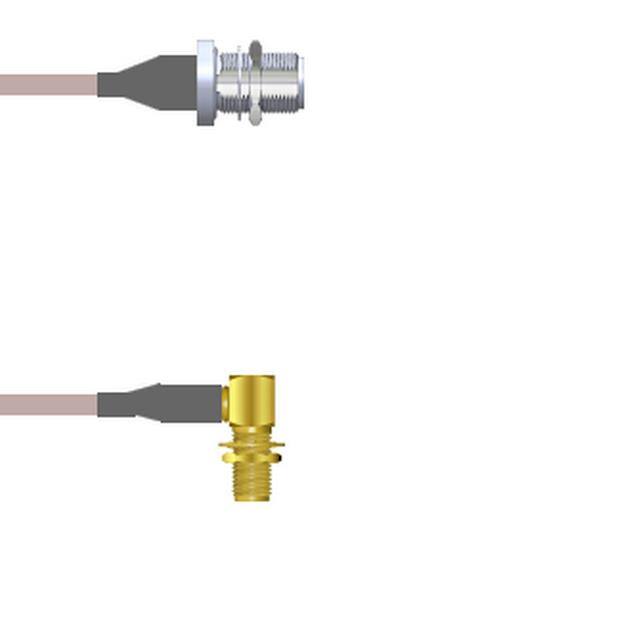

Q-2202Q000R003MCOAX CBL SMA TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMA to N-Type | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
PE36657-12COAX CBL 7/16 DIN TO 7/16 DIN |
150 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to 7/16 DIN | 7/16 Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | - | - | - | - | - |
|
|
PE3C1409-200CMCOAX CBL SMA TO TNC |
3,294 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C3238-100CMCOAX CBL SMA TO N-TYPE |
1,234 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C5244-100CMCOAX CBL SMA TO SMA |
3,111 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C1528-24COAX CBL SMA TO N-TYPE |
1,828 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C2985-48COAX CBL SMA TO N-TYPE |
1,470 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
TEA80-N1S1-F30COAX CBL SMA TO N-TYPE |
250 |
|
Datasheet |
TEA | Bulk | Active | SMA to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 360.0" (9.1m) 30.0' | 4.95mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Blue | Shielded | -55°C ~ 125°C | - | - |
|

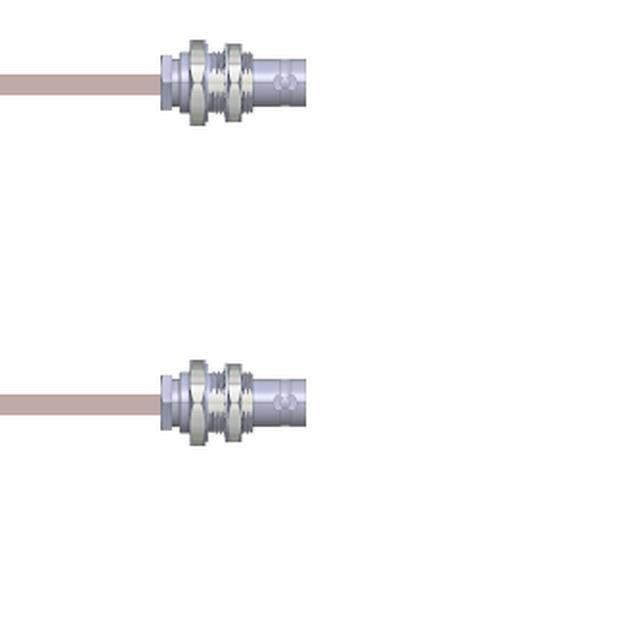

Q-07007000R108iCOAX CBL BNC TO BNC |
100 |
|
Datasheet |
- | Bag | Active | BNC to BNC | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|

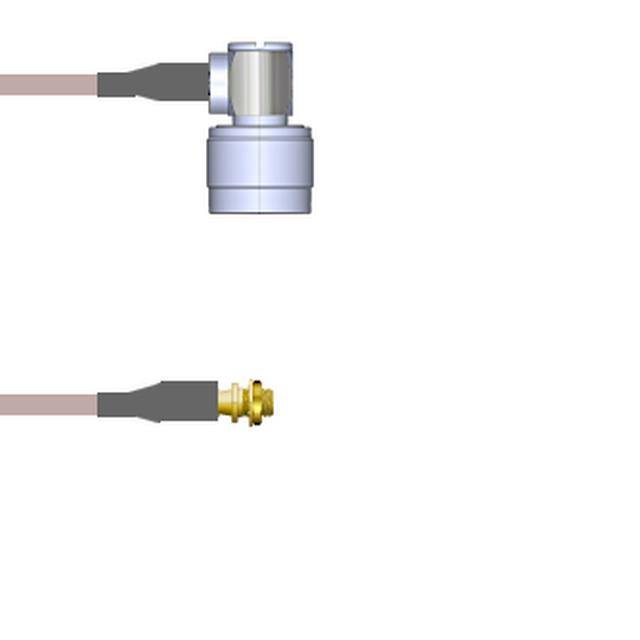

Q-2D01K000R108iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|
|
LMR-400-UF-716M-TMRA(QTY:55M)COAX CBL 7/16 DIN TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 7/16 DIN to TNC | 7/16 Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-SM-TMRA(QTY:55M)COAX CBL SMA TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-BF-SM(QTY:55M)COAX CBL BNC TO SMA |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to SMA | BNC Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-BF-BF(QTY:55M)COAX CBL BNC TO BNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-BF-NF(QTY:55M)COAX CBL BNC TO N-TYPE |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | BNC to N-Type | BNC Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-UF-4195M-TMRA(QTY:55M)COAX CBL 4.1/9.5 TO TNC |
1,000 |
|
Datasheet |
LMR®-400 | Tape & Box (TB) | Active | 4.1/9.5 to TNC | 4.1/9.5 Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 2165.4" (55.0m) 180.4' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
