Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE3930-900COAX CBL TWINAX TO TWINAX |
2,545 |
|
Datasheet |
- | Retail Package | Active | Twinax to Twinax | Twinax Plug | Male | Free Hanging (In-Line) | - | Twinax Plug | Male | Free Hanging (In-Line) | - | 900.0" (22.9m) 75.0' | - | - | - | 95 Ohms | 400 MHz | Black | - | - | - | - |
|
|
PE3C5268-36COAX CBL N-TYPE TO TNC |
1,312 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5264-60COAX CBL SMA TO TNC |
2,985 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5242-60COAX CBL SMA TO SMA |
1,722 |
|
Datasheet |
- | Retail Package | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5265-60COAX CBL SMA TO TNC |
2,655 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3W11978/HS-12COAX CBL 1.0/2.3 TO N-TYPE |
4,920 |
|
Datasheet |
- | Retail Package | Active | N-Type to LC | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-214 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | -20°C ~ 80°C | - | - |
|
|
PE3C5282-36COAX CBL N-TYPE TO TNC |
1,526 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|
|
PE3C5279-36COAX CBL SMA TO N-TYPE |
3,009 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|

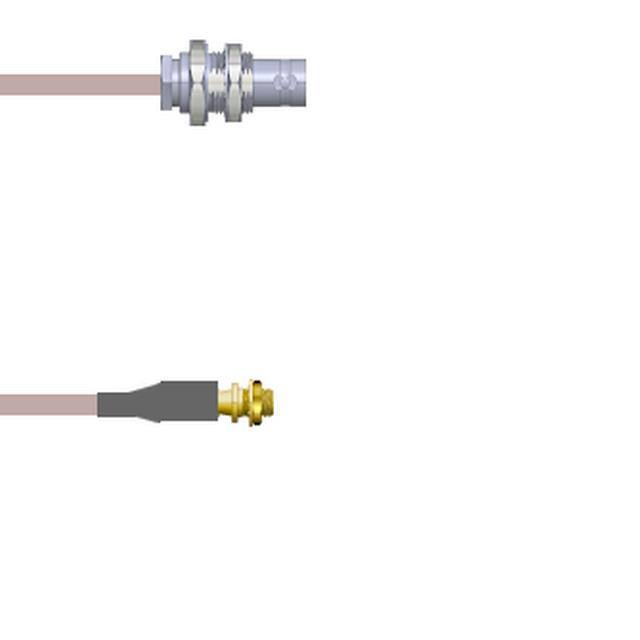

Q-0701K000R003MCOAX CBL BNC TO MMCX |
100 |
|
Datasheet |
- | Bag | Active | BNC to MMCX | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 118.1" (3.0m) 9.8' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|

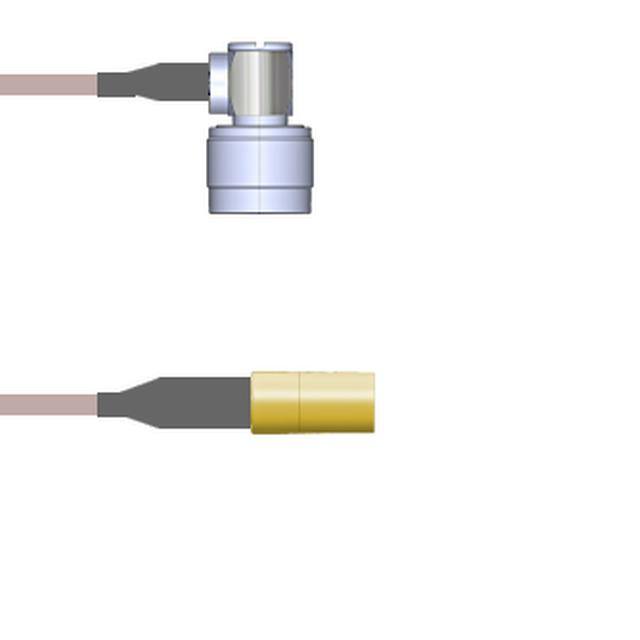

Q-2D03Z000R108iCOAX CBL SMB TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | SMB to N-Type | SMB Plug | Female | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
RG214-BM-BM(QTY:45M)COAX CBL BNC TO BNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-UM-UM(QTY:45M)COAX CBL UHF TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | UHF to UHF | UHF Plug | Male | - | - | UHF Plug | Male | - | - | 1771.7" (45.0m) 147.6' | RG-214 | - | - | - | - | - | - | - | - | - |
|
|
RG214-NM-NM(QTY:45M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-BM-NM(QTY:45M)COAX CBL BNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | BNC to N-Type | BNC Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-TM-NM(QTY:45M)COAX CBL N-TYPE TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-UM-NMRA(QTY:45M)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | UHF Plug | Male | - | - | N-Type Plug, Right Angle | Male | - | - | 1771.7" (45.0m) 147.6' | RG-214 | - | - | - | - | - | - | - | - | - |
|
|
RG214-NM-SM(QTY:45M)COAX CBL SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-TM-TM(QTY:45M)COAX CBL TNC TO TNC |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
|
|
RG214-NM-UM(QTY:45M)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to UHF | N-Type Plug | Male | Free Hanging (In-Line) | - | UHF Plug | Male | - | - | 1771.7" (45.0m) 147.6' | RG-214 | - | - | - | - | - | - | - | - | - |
|
|
RG214-NM-NMRA(QTY:45M)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1771.7" (45.0m) 147.6' | RG-214 | 50 Ohms | - | 50 Ohms | 11 GHz | Black | - | -40°C ~ 90°C | - | - |
