Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-900-DB-NM-NM(QTY:17ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
LMR-900-DB-NM-NF(QTY:17ft)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
LMR®-900 | Tape & Box (TB) | Active | N-Type to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 204.0" (5.2m) 17.0' | LMR 900 | 50 Ohms | - | 50 Ohms | - | Black | - | -40°C ~ 85°C | - | - |
|
|
PE36167LF-60SMA Male to 7/16 DIN Male Cable |
121 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-401 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE36167-60SMA Male to 7/16 DIN Male Cable |
121 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to SMA | 7/16 Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0" (1.5m) 5.0' | RG-401 | 50 Ohms | 50 Ohms | 50 Ohms | - | Copper | - | - | - | - |
|
|
PE3C1041/HS2-48COAX CBL N-TYPE TO TNC |
4,039 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Plug | Male | Free Hanging (In-Line) | - | TNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | PE-P142LL | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 165°C | - | - |
|
|
PE3C3244-150CMCOAX CBL N-TYPE TO TNC |
1,382 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C1084-24COAX CBL N-TYPE TO TNC |
2,122 |
|
Datasheet |
- | Retail Package | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3W02444-182.92mm Female Bulkhead to 2.92mm |
1,654 |
|
Datasheet |
- | Retail Package | Active | 2.92mm to 2.92mm | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2.92mm Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 18.00" (457.20mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | - | Gray | - | - | - | - |
|
|
PE3W00314-50CMCOAX CBL HN TO LC |
3,533 |
|
Datasheet |
- | Retail Package | Active | HN to LC | HN Plug | Male | Free Hanging (In-Line) | - | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE3W00589-12LC Male Right Angle to HN Male C |
3,517 |
|
Datasheet |
- | Retail Package | Active | HN to LC | LC Plug, Right Angle | Male | Free Hanging (In-Line) | - | HN Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-393 | 50 Ohms | 50 Ohms | 50 Ohms | - | Tan | - | - | - | - |
|
|
PE363LF-48COAX CBL 2.4MM TO 2.4MM |
3,792 |
|
Datasheet |
- | Retail Package | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 48.0" (1.2m) 4.0' | - | 50 Ohms | 50 Ohms | 50 Ohms | 40 GHz | Gray | - | - | - | - |
|
|
PE3C5255-150CMCOAX CBL N-TYPE TO N-TYPE |
2,523 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | - | - | - |
|

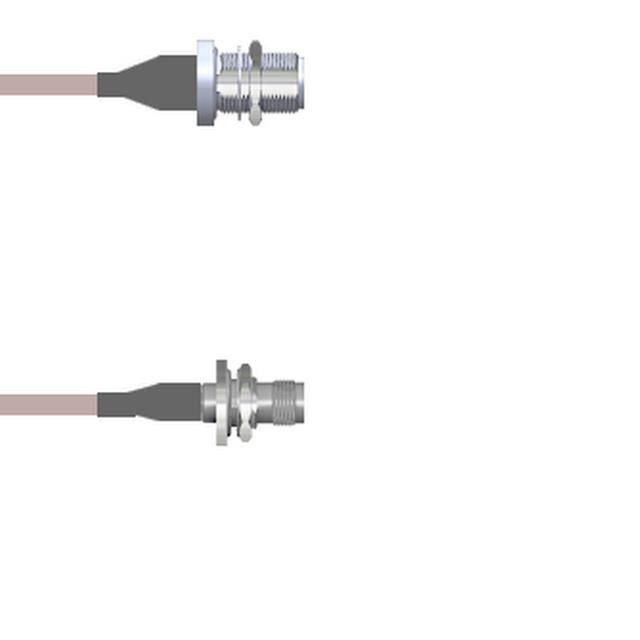

Q-2204H000R108iCOAX CBL N-TYPE TO TNC |
100 |
|
Datasheet |
- | Bag | Active | N-Type to TNC | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
RG303-NFBH-TMRP(QTY:60m)COAX CBL RP-TNC TO N-TYPE |
10,000 |
|
Datasheet |
- | Spool | Active | RP-TNC to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | RP-TNC Plug | Female | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-NM-NFBH(QTY:60m)COAX CBL N-TYPE TO N-TYPE |
10,000 |
|
Datasheet |
- | Spool | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-QM-NM(QTY:60m)COAX CBL QMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Spool | Active | QMA to N-Type | QMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-NM-BF(QTY:60m)COAX CBL N-TYPE TO BNC |
10,000 |
|
Datasheet |
- | Spool | Active | N-Type to BNC | N-Type Plug | Male | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-NFBH-UM(QTY:60m)COAX CBL N-TYPE TO UHF |
10,000 |
|
Datasheet |
- | Spool | Active | N-Type to UHF | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | UHF Plug | Male | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-NF-SFRP(QTY:60m)COAX CBL RP-SMA TO N-TYPE |
10,000 |
|
Datasheet |
- | Spool | Active | RP-SMA to N-Type | N-Type Jack | Female | Free Hanging (In-Line) | - | RP-SMA Jack | Male | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
|
|
RG303-QM-TF(QTY:60m)COAX CBL QMA TO TNC |
10,000 |
|
Datasheet |
- | Spool | Active | QMA to TNC | QMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Free Hanging (In-Line) | - | 2362.8" (60.0m) 196.9' | RG-303 | 50 Ohms | - | - | - | - | - | - | - | - |
