Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LMR-400-LSZH-TM-SF(QTY:50M)COAX CBL TNC TO SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | TNC to SMA | TNC Plug | Male | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-TMRA-BF(QTY:50M)COAX CBL TNC TO BNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | TNC to BNC | TNC Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | BNC Jack | Female | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-TM-SMRP(QTY:50M)COAX CBL TNC TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | TNC to RP-SMA | TNC Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-SMRA-716M(QTY:50M)COAX CBL SMA TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | SMA to 7/16 DIN | SMA Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-UM-NMRA(QTY:50M)COAX CBL UHF TO N-TYPE |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | UHF to N-Type | UHF Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-UM-SMRP(QTY:50M)COAX CBL UHF TO RP-SMA |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | UHF to RP-SMA | UHF Plug | Male | Free Hanging (In-Line) | - | RP-SMA Plug | Female | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-SMRP-BF(QTY:50M)COAX CBL RP-SMA TO BNC |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | RP-SMA to BNC | RP-SMA Plug | Female | Free Hanging (In-Line) | - | BNC Jack | Female | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|
|
LMR-400-LSZH-UMRA-716M(QTY:50M)COAX CBL UHF TO 7/16 DIN |
1,000 |
|
Datasheet |
LMR® LSZH | Tape & Box (TB) | Active | UHF to 7/16 DIN | UHF Plug, Right Angle | Male | Free Hanging (In-Line), Right Angle | - | 7/16 Plug | Male | Free Hanging (In-Line) | - | 1968.5" (50.0m) 164.0' | LMR 400 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | -40°C ~ 85°C | - | - |
|

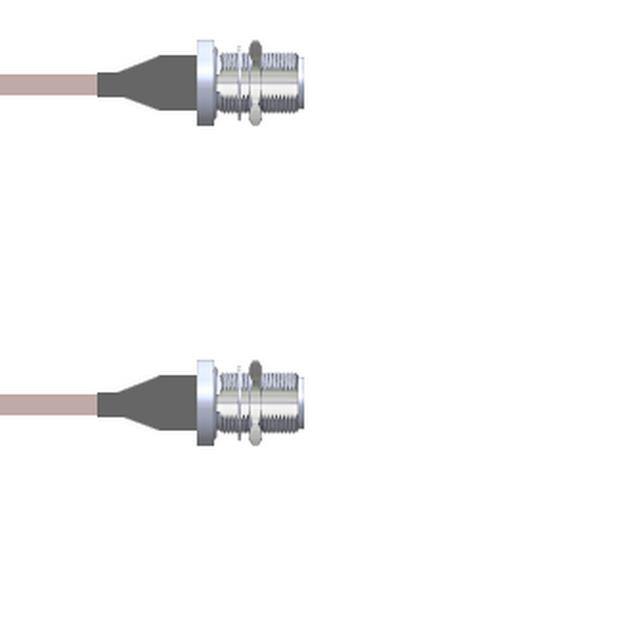

Q-22022000R2.5MCOAX CBL N-TYPE TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | N-Type to N-Type | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 98.4" (2.5m) 8.2' | RG-316 DB | - | - | 50 Ohms | 11 GHz | Copper | Shielded | - | - | - |
|
|
PE3C3240-24COAX CBL N-TYPE TO N-TYPE |
136 |
|
Datasheet |
- | Retail Package | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C1173-100CMCOAX CBL SMA TO TNC |
3,939 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3W06696LF-96COAX CBL 7/16 DIN TO HN |
2,120 |
|
Datasheet |
- | Retail Package | Active | 7/16 DIN to HN | 7/16 Plug | Male | Free Hanging (In-Line) | - | HN Plug, Right Angle | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-217 | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | - | - | - | - |
|
|
PE3C1617-50CMCOAX CBL SMA TO TNC |
4,540 |
|
Datasheet |
- | Retail Package | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|
|
PE3C2985-100CMCOAX CBL SMA TO N-TYPE |
3,274 |
|
Datasheet |
- | Retail Package | Active | SMA to N-Type | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 39.4" (1.0m) 3.3' | - | 50 Ohms | 50 Ohms | 50 Ohms | 18 GHz | Green | - | -55°C ~ 125°C | - | - |
|

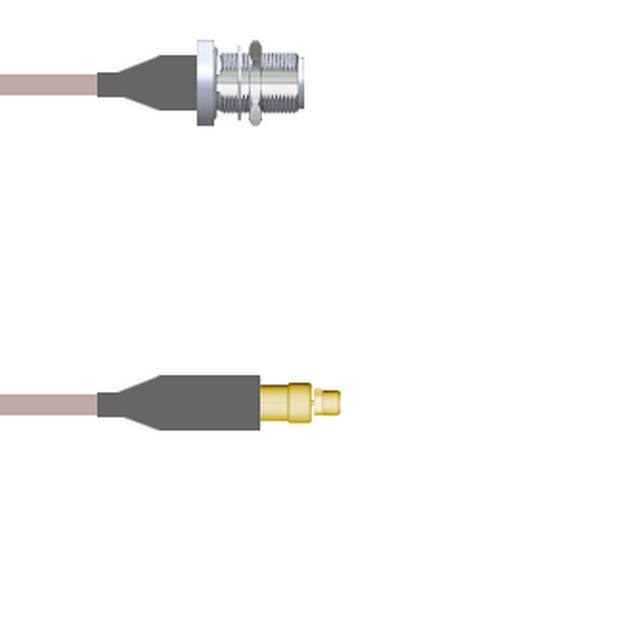

Q-2201R000R108iCOAX CBL MMCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MMCX to N-Type | MMCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

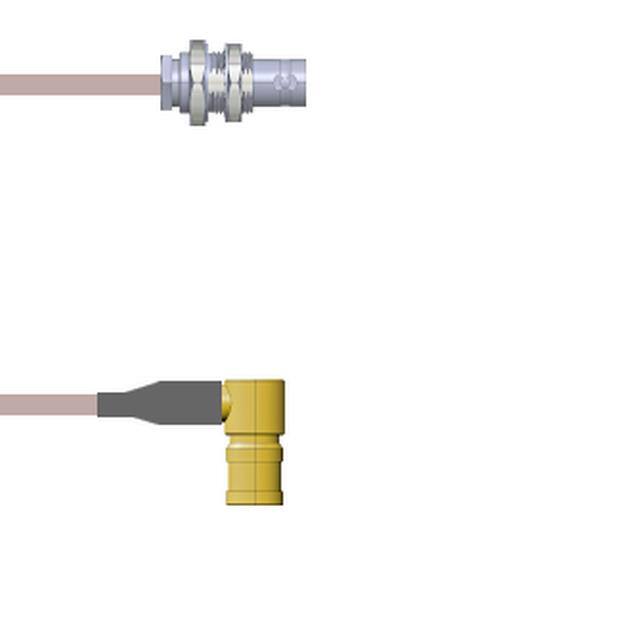

Q-0703T000R108iCOAX CBL BNC TO SMB |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug, Right Angle | Male | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|
V3A33-PGFPMR-S16COAX CBL SMPS TO SMPM |
100 |
|
Datasheet |
VITA | Bulk | Active | SMPS to SMPM | SMPS Jack | Female | Free Hanging (In-Line) | - | SMPM Jack, Right Angle | Female | Free Hanging (In-Line) | - | 16.00" (406.40mm) | 0.047" Flexible Cable | - | - | - | 18 GHz | Black | Shielded | - | - | - |
|

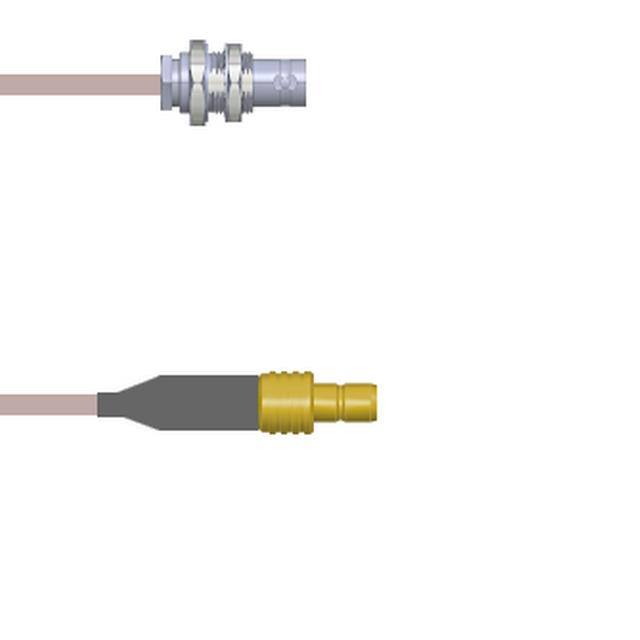

Q-0703N000R108iCOAX CBL BNC TO SMB |
100 |
|
Datasheet |
- | Bag | Active | BNC to SMB | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Jack | Female | Free Hanging (In-Line) | - | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 2 GHz | Copper | Shielded | - | - | - |
|

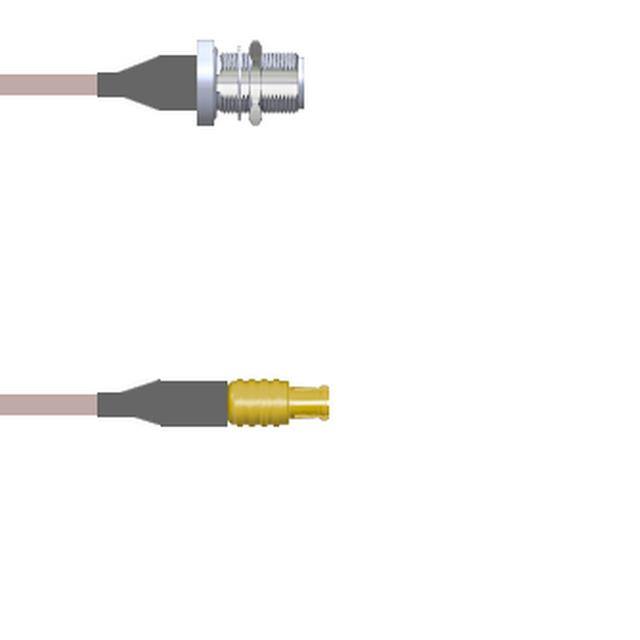

Q-2201D000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
|

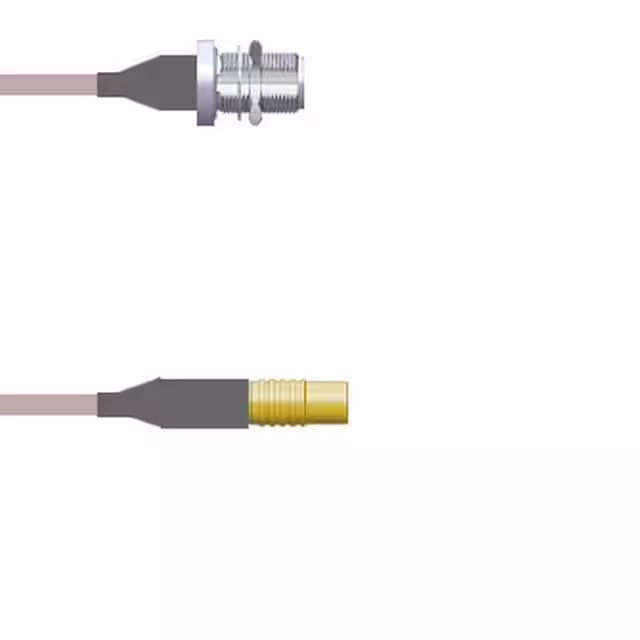

Q-22013000R108iCOAX CBL MCX TO N-TYPE |
100 |
|
Datasheet |
- | Bag | Active | MCX to N-Type | MCX Jack | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 108.0" (2.7m) 9.0' | RG-316 DB | - | - | 50 Ohms | 6 GHz | Copper | Shielded | - | - | - |
