Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI35P-28E210-C-1XAUD. PIEZO IND 6-28V PNL MNT |
975 |
|
Datasheet |
CI35P | Tray | Active | Indicator, Internally Driven | AC, DC | 24 V | 6 ~ 28V | 2.1kHz | Piezo | Single Tone | - | 80dB @ 24V, 61cm | 22mA | Top | -30°C ~ 85°C | - | - | IP68 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.409" Dia (35.80mm) |
|

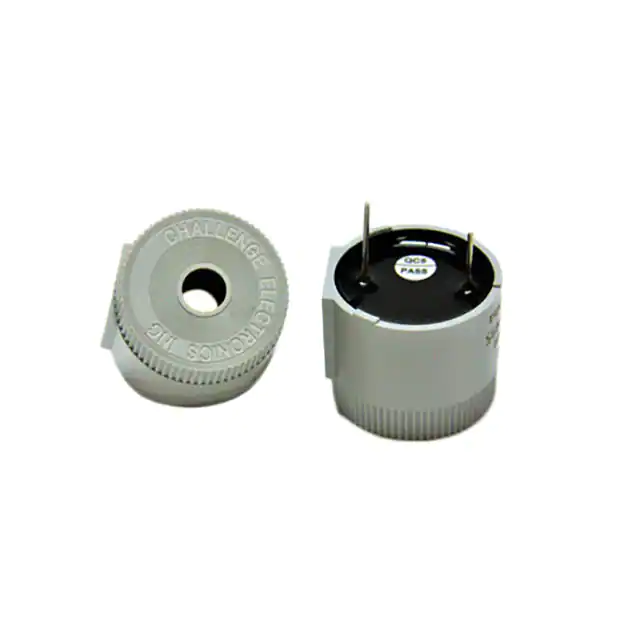

CI25P-16T290-T-1XBUZZER PIEZO 12V 25.4MM TH |
337 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 16V | 2.9kHz | Piezo | Localization | - | 85dB @ 12V, 61cm | 40mA | Top | -30°C ~ 65°C | - | - | IP68 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.000" Dia (25.40mm) |
|

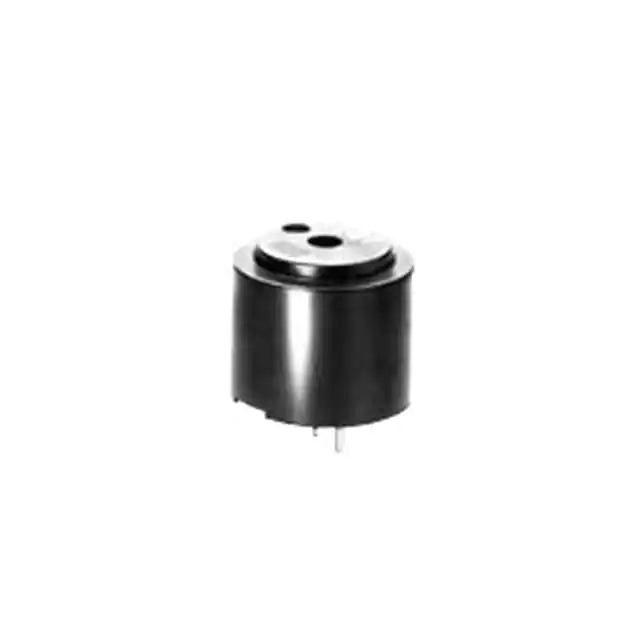

SDC1614LT-01BUZZER MAGNETIC 12V 16MM TH |
308 |
|
Datasheet |
SDC | Tray | Last Time Buy | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 1.9kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 25mA | Top | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
BRP4535S-24-CBUZZER PIEZO 24V 43.5MM PNL MNT |
360 |
|
Datasheet |
BRP4535 | Tray | Active | Indicator, Internally Driven | DC | 24 V | 3 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 24V, 30cm | 40mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.713" Dia (43.50mm) |
|
HPS22ABUZZER PIEZO 9V 22MM SMD |
385 |
|
Datasheet |
HPS | Box | Active | - | - | 9 V | 2 ~ 30V | 4kHz | Piezo | - | - | 100dB @ 9V, 10cm | - | Top | -20°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.866" Dia (22.00mm) |
|
|
CI44S-15W45-M-1BUZZER 10V 44MM FLANGE MULT TONE |
466 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 10 V | 8 ~ 15V | 450Hz | - | Multiple Tone | - | 65dB @ 10V, 100cm | 60mA | Top | -20°C ~ 55°C | - | Medical | - | Panel Mount, Flange | Wire Leads | 1.732" Dia (44.00mm) |
|
CI35P-30E240-C-10XBUZZER PIEZO 12V 35.2MM PNL MNT |
1,171 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 30V | 2.4kHz | Piezo | Single Tone | - | 71dB @ 6V, 61cm | 35mA | Top | -30°C ~ 65°C | - | - | IP68 - Dust Tight, Waterproof | Panel Mount | Quick Connect Tab - 0.250" (6.35mm) | 1.386" Dia (35.20mm) |
|

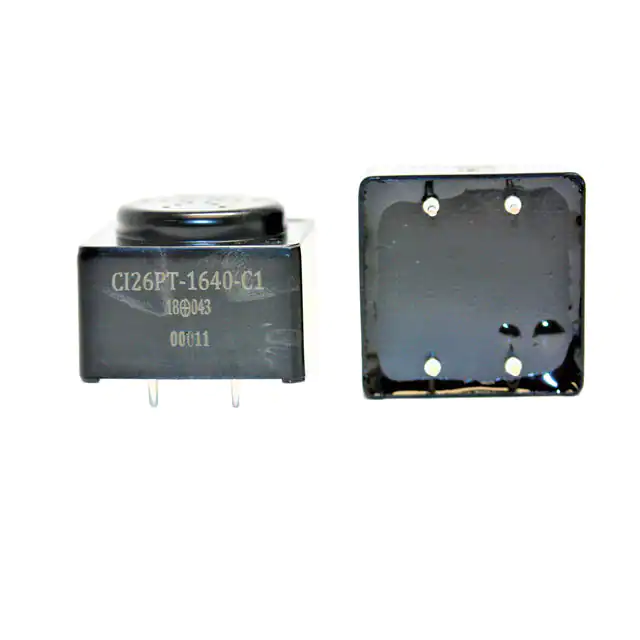

CI26P-16T40-C-1XBUZZER PIEZO 12V 26X26MM TH |
191 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 8 ~ 16V | 400Hz | Piezo | Single Tone | - | 95dB @ 12V, 10cm | 60mA | Top | -40°C ~ 105°C | - | - | IP67 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.024" L x 1.024" W (26.00mm x 26.00mm) |
|
|
CI35P-30E240-P-23XBUZZER PIEZO 12V 29MM PNL MNT |
973 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 6 ~ 30V | 2.4kHz | Piezo | Pulse | - | 75dB @ 12V, 61cm | 80mA | Top | -30°C ~ 65°C | - | - | IP67 - Dust Tight, Waterproof | Panel Mount | Terminal Block | 1.142" Dia (29.00mm) |
|

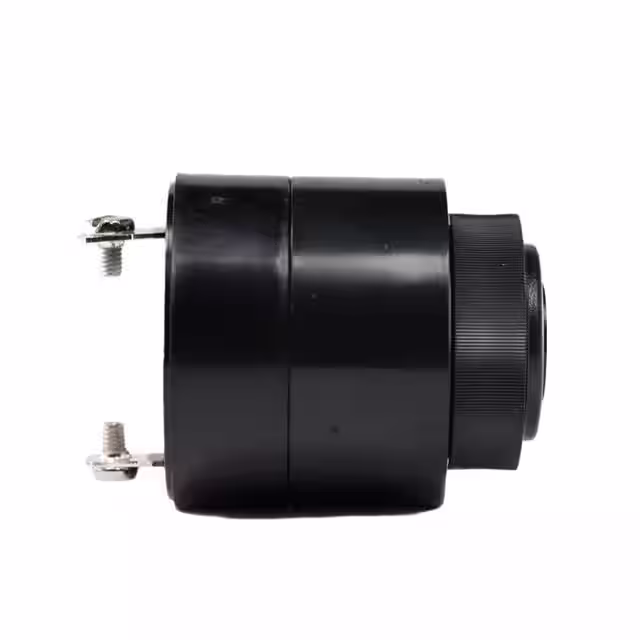

BRP4549S-110-CPBUZZER PIEZO 110V 43.5MM PNL MNT |
400 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 2.9kHz | Piezo | Pulse | - | 80dB @ 110V, 30cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminals | 1.713" Dia (43.50mm) |
|

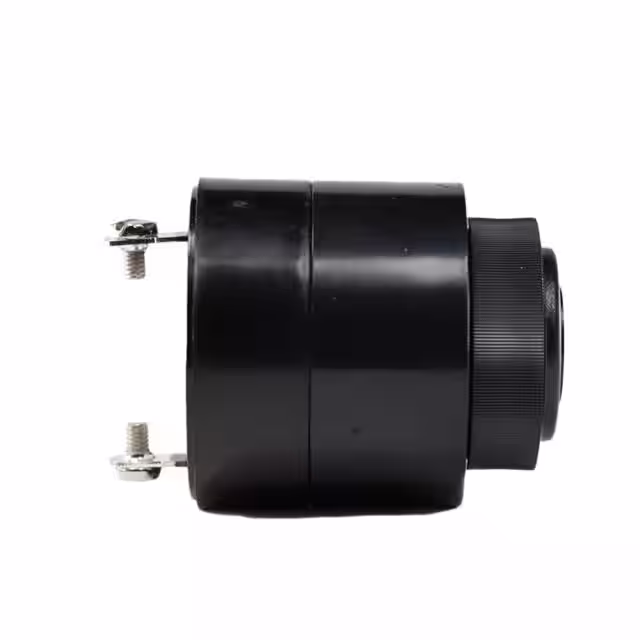

BRP4549S-240-CPBUZZER PIEZO 240V 43.5MM PNL MNT |
400 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | AC | 240 V | 60 ~ 250V | 2.9kHz | Piezo | Pulse | - | 90dB @ 240V, 30cm | 30mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminals | 1.713" Dia (43.50mm) |
|
|
CI36P-30E290-P-5XBUZZER PIEZO 24V 36MM PNL MT |
285 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 24 V | 5 ~ 30V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 5V, 61cm | 25mA | Top | -30°C ~ 65°C | - | - | IP68 - Dust Tight, Waterproof | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.417" Dia (36.00mm) |
|
|
M-80BUZZER PIEZO 26.16MM TH |
999 |
|
Datasheet |
M-80/M-100 | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 15V, 61cm | 10 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Through Hole | PC Pins | 1.030" Dia (26.16mm) |
|
|
M-100WBUZZER PIEZO 26.16MM PNL MNT |
990 |
|
Datasheet |
M-80/M-100 | Bulk | Active | Indicator, Internally Driven | DC | - | 3 ~ 6V | 2.9kHz | Piezo | Single Tone | - | 102dB @ 6V, 61cm | 10 ~ 60mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.030" Dia (26.16mm) |
|
|
M-80WBUZZER PIEZO 26.2MM PNL MNT |
848 |
|
Datasheet |
M-80/M-100 | Bulk | Active | Indicator, Internally Driven | DC | - | 5 ~ 15V | 2.9kHz | Piezo | Single Tone | - | 103dB @ 15V, 61cm | 10 ~ 50mA | Top | -20°C ~ 65°C | UL, UR | - | IP68 - Dust Tight, Waterproof | Panel Mount | Wire Leads | 1.031" Dia (26.20mm) |
|
M22BZ-024DCSBUZZER MAGN 24V 29.6MM PNL MNT |
750 |
|
Datasheet |
M22 | Bulk | Active | Transducer, Externally Driven | DC | 24 V | - | 2.5kHz | Magnetic | Pulse, Slow | - | 80dB @ 24V, 100cm | 50mA | - | -20°C ~ 65°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminals | 1.165" Dia (29.60mm) |
|
|
M22BZ-024DCFBUZZER MAGN 24V 29.6MM PNL MNT |
730 |
|
Datasheet |
M22 | Bulk | Active | Transducer, Externally Driven | DC | 24 V | - | 2.5kHz | Magnetic | Pulse, Fast | - | 80dB @ 24V, 100cm | 50mA | - | -20°C ~ 65°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminals | 1.165" Dia (29.60mm) |
|
M22BZ-024DCFLBUZZER MAGN 24V 29.6MM PNL MNT |
750 |
|
Datasheet |
M22 | Bulk | Active | Transducer, Externally Driven | DC | 24 V | - | 2.5kHz | Magnetic | Pulse, Fast, Visual Indicator | - | 80dB @ 24V, 100cm | 50mA | - | -20°C ~ 65°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminals | 1.165" Dia (29.60mm) |
|
|
M22BZ-220ACSBUZZER MAGN 220V 29.6MM PNL MNT |
750 |
|
Datasheet |
M22 | Bulk | Active | Transducer, Externally Driven | AC | 220 V | - | 2.5kHz | Magnetic | Pulse, Slow | - | 80dB @ 220V, 100cm | 50mA | - | -20°C ~ 65°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminals | 1.165" Dia (29.60mm) |
|
|
M22BZ-110ACSBUZZER MAGN 110V 29.6MM PNL MNT |
750 |
|
Datasheet |
M22 | Bulk | Active | Transducer, Externally Driven | AC | 110 V | - | 2.5kHz | Magnetic | Pulse, Slow | - | 80dB @ 110V, 100cm | 50mA | - | -20°C ~ 65°C | CE | - | IP65 - Dust Tight, Water Resistant | Panel Mount | Screw Terminals | 1.165" Dia (29.60mm) |
