Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CI12E-07T230-C-6BUZZER MAGNETIC 3-7V TH |
3,091 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 95dB @ 5V, 10cm | 35mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
CT12E-04S200-1MAGNETIC XDCR 2-4V SMT |
988 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 2kHz | Magnetic | - | - | 80dB @ 3V, 10cm | 80mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.472" Dia (12.00mm) |
|

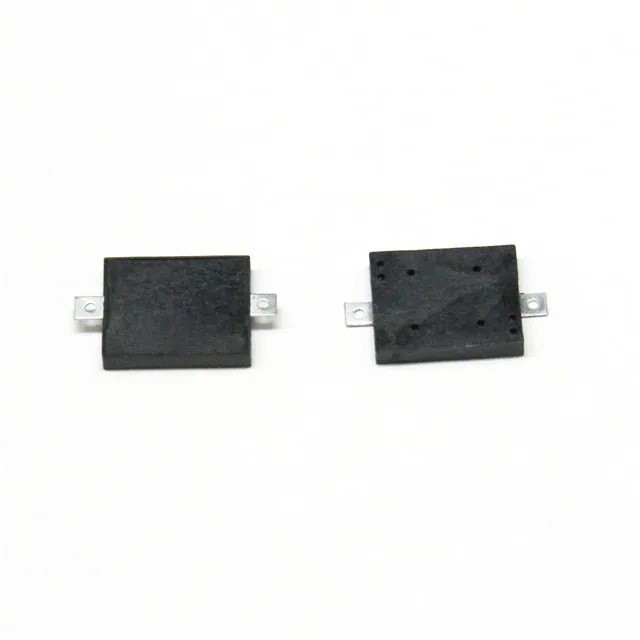

CT11P-25S410-2BUZZER PIEZO 5V 12X12MM" W SMD |
4,513 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 5 V | 1 ~ 25V | 4.1kHz | Piezo | Single Tone | - | 70dB @ 5V, 10cm | 3mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.433" L x 0.354" W (11.00mm x 9.00mm) |
|
|
OWPB-181880S-20-12BUZZER PIEZO 12V 18X18MM SMD |
433 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 25V (Max) | 2kHz | Piezo | Single Tone | - | 90dB @ 9V, 10cm | 15mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.709" L x 0.709" W (18.00mm x 18.00mm) |
|

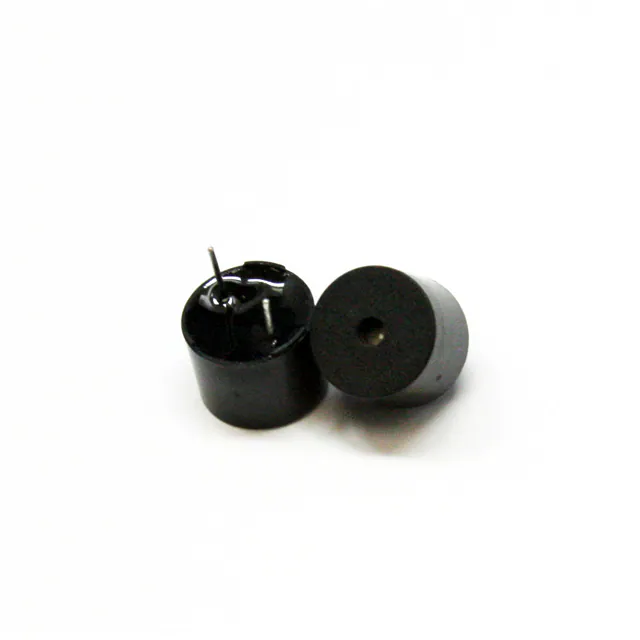

CI12E-07T230-C-5BUZZER MAGNETIC 5V 12MM TH |
3,142 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 7V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
OWPB-3045W-32.5-24BUZZER PIEZO 24V 30MM FLANGE |
182 |
|
Datasheet |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 24 V | 40V (Max) | 3.125kHz | Piezo | Single Tone | - | 115dB @ 24V, 10cm | 100mA | Top | -30°C ~ 60°C | - | - | - | Wire Lead | Wire Leads | 1.181" Dia (30.00mm) |
|
|
OWPB-3308W-32.5-24BUZZER PIEZO 24V 32MM FLANGE |
636 |
|
Datasheet |
- | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 24 V | - | 3.125kHz | Piezo | Single Tone | - | 120dB @ 24V, 10cm | 80mA | Top | -20°C ~ 60°C | - | - | - | Wire Lead | Wire Leads | 1.260" Dia (32.00mm) |
|
|
CT10E-04S283-6MAGNETIC XDCR 3-4.5V SMT |
1,994 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 3 ~ 4.5V | 2.83kHz | Magnetic | Single Tone | - | 90dB @ 3.6V, 10cm | 100mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
|
|
AST0927MW-3.6TRQBUZZER MAGNETIC 3.6V 9MM SMD |
752 |
|
Datasheet |
AST | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 3.6 V | 2 ~ 5V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 3.6V, 10cm | 90mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.354" Dia (9.00mm) |
|
BRP2207P-30BUZZER PIEZO 30V 22MM TH |
600 |
|
Datasheet |
BRP2207P-30 | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 30 V | 1 ~ 30V | 4kHz | Piezo | Single Tone | - | 95dB @ 30V, 30cm | - | Top | -40°C ~ 120°C | - | - | - | Through Hole | PC Pins | 0.866" Dia (22.00mm) |
|
|
CT08E-04S270-5BUZZER MAGNETIC 3.6V 0.3X0.3 SMD |
793 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 2.5 ~ 4.5V | 2.7kHz | Magnetic | Single Tone | - | 97dB @ 3.6V, 10cm | 100mA | Side | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.335" L x 0.335" W (8.50mm x 8.50mm) |
|
TE054003-1BUZZER ELECTRO 3V 5X5MM SMD |
54,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Electromechanical | - | - | 78dB @ 3V, 10cm | 100mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
|
CT25E-16T150-1BUZZER MAGNETIC 12V 25MM TH |
589 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 8 ~ 16V | 1.5kHz | Magnetic | Single Tone | - | 104dB @ 12V, 10cm | 55mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.984" Dia (25.00mm) |
|

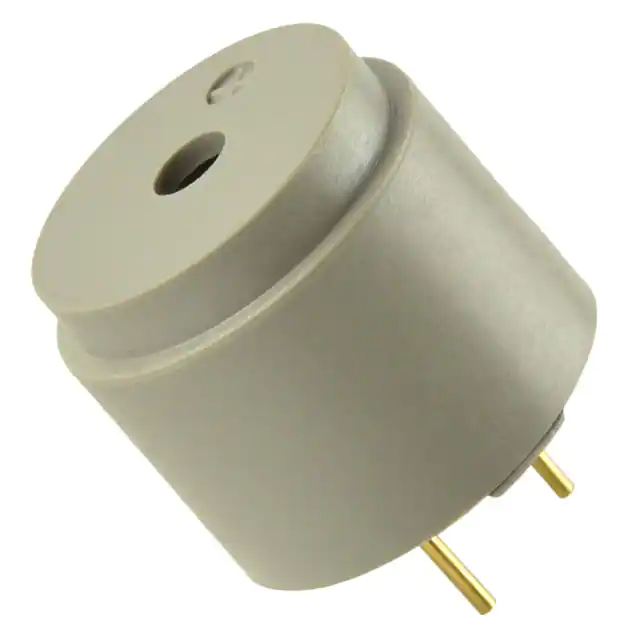

CMT-1614C-120BUZZER MAGNETIC 12V 16.00MM TH |
1,474 |
|
Datasheet |
CMT | Bulk | Active | Transducer, Externally Driven | Zero-Peak Signal | 12 V | 9 ~ 13V | 2.048kHz | Magnetic | Single Tone | - | 85dB @ 12V, 10cm | 80mA | Top | -40°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
|
OWPB-4013PA-32-9BUZZER PIEZO 9V 40MM TH |
467 |
|
Datasheet |
- | Bulk | Active | Transducer, Externally Driven | DC | 9 V | 6 ~ 12V | 3.2kHz | Piezo (with Feedback) | Single Tone | - | 110dB @ 9V, 10cm | 50mA | Top | -30°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.575" Dia (40.00mm) |
|
|
CT12E-07T240-1XMAGNETIC XDCR 3-7V TH |
989 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Zero-Peak Signal | 5 V | 3 ~ 7V | 2.4kHz | Magnetic | - | - | 85dB @ 5V, 10cm | 60mA | Top | -30°C ~ 80°C | - | - | IPX7 | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
OWMB-323220SA-40-12BUZZER MAGN 3.2X3.2MM W SMD |
1,396 |
|
Datasheet |
- | Cut Tape (CT) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3 V | 2 ~ 4V | 4kHz | Magnetic | Single Tone | - | 72dB @ 3V, 5cm | 100mA | Top | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
|
|
CT10E-04S283-4BUZZER MAGN 3.6V 10X10MMW SMD |
3,841 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 3.6 V | 3 ~ 4.6V | 2.83kHz | Magnetic | Single Tone | - | 93dB @ 3.6V, 10cm | 100mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
|

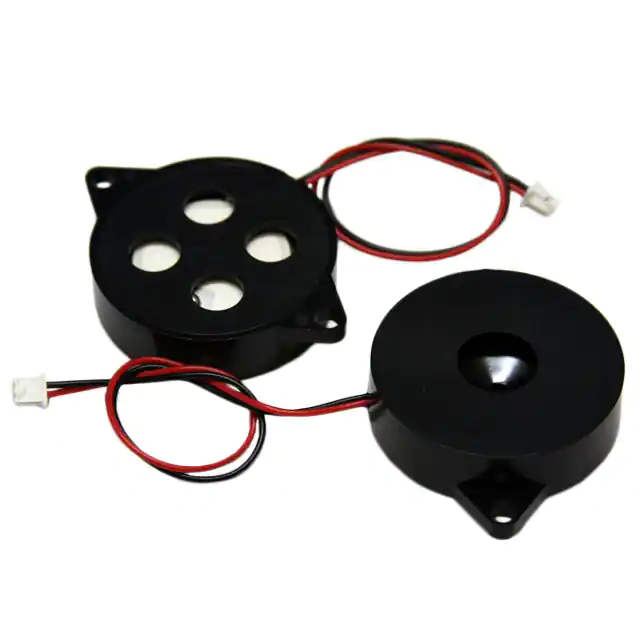

CT31P-30W520-1BUZZER PIEZO 18V 31.6MM FLANGE |
1,862 |
|
Datasheet |
- | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 18 V | 1 ~ 30V | 5.2kHz | Piezo | Single Tone | - | 120dB @ 18V, 10cm | 10mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads with Connector | 1.244" Dia (31.60mm) |
|
|
CI12E-13T230-C-1XMAGNETIC INDICATOR 9-13V TH |
1,000 |
|
Datasheet |
- | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 13V | 2.3kHz | Magnetic | Single Tone | - | 88dB @ 12V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | IPX7 | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
