Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AT-4625-TT-HT-RBUZZER PIEZO 20V 45.4MM TH |
216 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 20 V | 3 ~ 30V | 2.5kHz | Piezo | - | - | 120dB @ 20V, 10cm | 80mA | Top | -40°C ~ 105°C | - | - | - | Through Hole | PC Pins | 1.787" Dia (45.40mm) |
|
|
AT-3425-TWT-RBUZZER PIEZO 12V 33.6MM TH |
1,945 |
|
Datasheet |
AT | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 12 V | 3 ~ 28V | 2.5kHz | Piezo (with Feedback) | Single Tone | - | 85dB @ 12V, 10cm | 7mA | Top | -30°C ~ 85°C | - | Washable | - | Through Hole | PC Pins | 1.323" Dia (33.60mm) |
|
|
CS-3624BUZZER MAGNETIC 24V 32X17 FLANGE |
931 |
|
Datasheet |
CS | Tray | Active | Indicator, Internally Driven | DC | 24 V | 20 ~ 28V | - | Magnetic | Single Tone | - | 78dB @ 24V, 30cm | 35mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.910" L x 0.669" W (23.30mm x 17.00mm) |
|
|
CMI-1295-85T3VDC, 85DB, INDICATOR |
429 |
|
Datasheet |
CMI | Tray | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.3kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | Washable | Waterproof | Through Hole | PC Pins | 0.472" Dia (12.00mm) |
|
|
PK-09N50PQ2.5-505DC 77-84DB 5000HZ CONT 10 |
1,465 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 2.5 ~ 5.5V | 5kHz | Piezo | Single Tone | - | 80dB @ 5V, 10cm | 3mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.413" Dia (10.50mm) |
|
|
AST0840MFD-4.4TRQBUZZER MAGN 4.4V 0.34X 0.34 SMD |
1,890 |
|
Datasheet |
AST | Tape & Reel (TR) | Active | Transducer, Externally Driven | Peak-Peak Signal | 4.4 V | 3.6 ~ 5V | 4kHz | Magnetic | - | - | 105dB @ 4.4V, 10cm | 140mA | Top | -30°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.339" L x 0.335" W (8.60mm x 8.50mm) |
|

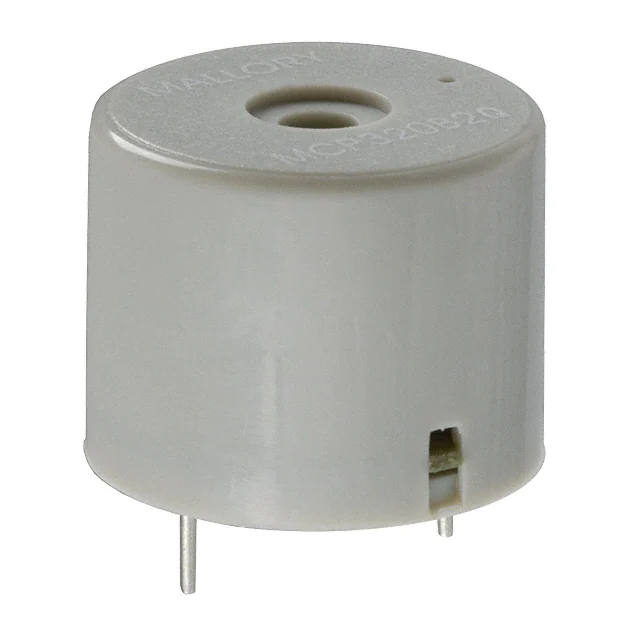

MCP320B2QBUZZER PIEZO 12V 23.4MM TH |
4,472 |
|
Datasheet |
MCP | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 20V | 2.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 20mA | Top | -20°C ~ 90°C | - | - | - | Through Hole | PC Pins | 0.921" Dia (23.40mm) |
|
|
AT-5210-TT-RBUZZER PIEZO 18V 51.5MM TH |
8,372 |
|
Datasheet |
AT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 18 V | 1 ~ 60V | 1kHz | Piezo | Single Tone | - | 105dB @ 18V, 10cm | 10mA | Top | -40°C ~ 105°C | - | - | - | Through Hole | PC Pins | 2.028" Dia (51.50mm) |
|
|
AST200QBUZZER MAGN 3V8.7X8.7MMSMD |
1,181 |
|
Datasheet |
AST | Tube | Active | Transducer, Externally Driven | Peak-Peak Signal | 3 V | 2 ~ 4V | 2.73kHz | Magnetic | Single Tone | - | 85dB @ 3V, 10cm | 80mA | Side | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.343" L x 0.343" W (8.70mm x 8.70mm) |
|
|
PL-27N26WQBUZZER PIEZO 12V 30MM FLANGE |
493 |
|
Datasheet |
PL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 2.5kHz | Piezo | Pulse, Slow | - | 90dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.181" Dia (30.00mm) |
|
|
CEP-4411ACBUZZER PIEZO 110V 41.80MM FLANGE |
904 |
|
Datasheet |
CEP | Box | Active | Indicator, Internally Driven | AC, DC | 110 V | 30 ~ 120V | 2.8kHz | Piezo | Single Tone | - | 88dB @ 110V, 30cm | 7mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
|
|
CS-3606BUZZER MAGNETIC 6V 32X17 FLANGE |
680 |
|
Datasheet |
CS | Tray | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | - | Magnetic | Single Tone | - | 78dB @ 6V, 30cm | 35mA | Top | -30°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.910" L x 0.669" W (23.30mm x 17.00mm) |
|

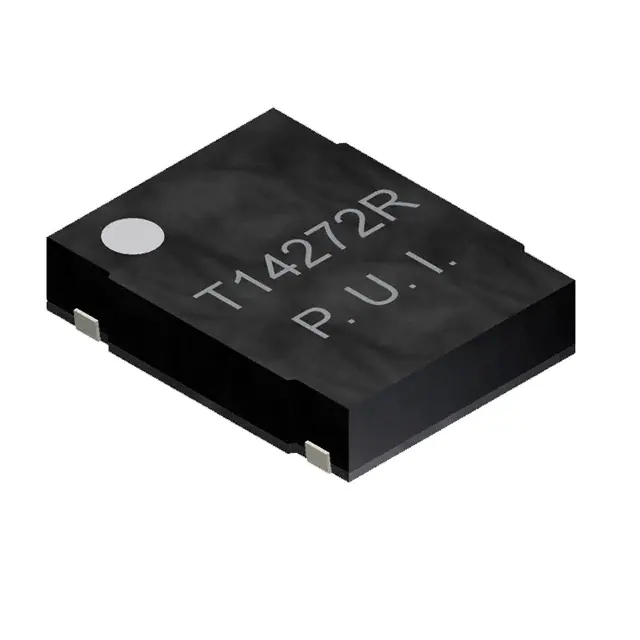

SMT-1427-S-2-RBUZZER MAGNETIC 1.5V 11X14MM SMD |
578 |
|
Datasheet |
SMT | Tape & Reel (TR) | Active | Transducer, Externally Driven | Zero-Peak Signal | 1.5 V | 1.2 ~ 1.7V | 2.7kHz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 1.5V, 10cm | 80mA | Side | -40°C ~ 85°C | - | - | - | Surface Mount | Solder Pads | 0.433" L x 0.551" W (11.00mm x 14.00mm) |
|
|
CPE-253BUZZER PIEZO 12V 28.00MM FLANGE |
599 |
|
Datasheet |
CPE | Box | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 3.5kHz | Piezo | Pulse, Slow | - | 87dB @ 12V, 30cm | 6mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.102" Dia (28.00mm) |
|
|
AI-2304-TF-LW120-5V-RBUZZER MAGN 4.5V 32X17MM FLANGE |
321 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 4.5 V | 3 ~ 6V | 400Hz | Electromechanical/Magnetic | Single Tone | - | 75dB @ 4.5V, 10cm | 20mA | Top | -10°C ~ 60°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.260" L x 0.669" W (32.00mm x 17.00mm) |
|
|
CPI-3116-3-100TBUZZER PIEZO 3V 31MM TH |
832 |
|
Datasheet |
CPI | Box | Active | Indicator, Internally Driven | DC | 3 V | 2.5 ~ 3.5V | 3.2kHz | Piezo | Single Tone | - | 97dB @ 3V, 30cm | 30mA | Top | -35°C ~ 80°C | - | - | - | Through Hole | PC Pins | 1.220" Dia (31.00mm) |
|
|
AI-2304-TT-24V-2-RBUZZER MAGNETIC 24V 23X17MM TH |
408 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 24 V | 15 ~ 27V | 400Hz | Electromechanical/Magnetic | Single Tone | - | 85dB @ 24V, 10cm | 30mA | Top | -20°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.669" W (23.00mm x 17.00mm) |
|
|
PK-27H35P-24VQ18-28DC 94-110DB 3500HZ CONT 30X |
230 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 100dB @ 24V, 10cm | 20mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
PK-20A25WQBUZZER PIEZO 12V 23MM FLANGE |
325 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 2.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 25mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 0.906" Dia (23.00mm) |
|
|
CPE-420BUZZER PIEZO 12V 41.80MM FLANGE |
592 |
|
Datasheet |
CPE | Box | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 16V | 2.8kHz | Piezo | Single Tone | - | 102dB @ 12V, 30cm | 50mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.646" Dia (41.80mm) |
