Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMI-1324-TW-5V-3-RBUZZER MAGNETIC 5V 12.8X12.8 SMD |
2,529 |
|
Datasheet |
SMI | Tape & Reel (TR) | Active | Indicator, Internally Driven | DC | 5 V | 3 ~ 7V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 88dB @ 5V, 10cm | 30mA | Top | -30°C ~ 70°C | - | Washable | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|
|
PK-35H29W-24VQBUZZER PIEZO 24V 42MM FLANGE |
1,077 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 100dB @ 24V, 30cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) |
|
|
PL-20A35EWQBUZZER PIEZO 12V 28MM FLANGE |
809 |
|
Datasheet |
PL | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Pulse, Slow | - | 95dB @ 12V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.102" Dia (28.00mm) |
|
|
CPT-2521C-500BUZZER PIEZO 20V 25.60MM FLANGE |
4,309 |
|
Datasheet |
CPT | Tray | Active | Transducer, Externally Driven | Peak-Peak Signal | 20 V | 50V (Max) | 3.7kHz | Piezo | Single Tone | - | 95dB @ 20V, 30cm | 40mA | Top | -30°C ~ 85°C | - | - | IP68 - Dust Tight, Waterproof | Panel Mount, Flange | Wire Leads | 1.008" Dia (25.60mm) |
|
|
SMI-1324-TW-3V-R-T/RBUZZER MAGNETIC 3V 12.8X12.8 SMD |
1,582 |
|
Datasheet |
SMI | Tape & Reel (TR) | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 5V | 2.4kHz | Electromechanical/Magnetic | Single Tone | - | 75dB @ 3V, 10cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Surface Mount | Solder Pads | 0.504" L x 0.504" W (12.80mm x 12.80mm) |
|
|
CPE-244BUZZER PIEZO 12V 14.00MM TH |
3,664 |
|
Datasheet |
CPE | Tray | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 16V | 5kHz | Piezo | Single Tone | - | 80dB @ 12V, 30cm | 35mA | Top | -30°C ~ 85°C | - | - | IP67 - Dust Tight, Waterproof | Through Hole | PC Pins | 0.551" Dia (14.00mm) |
|
|
SDC1614L5-01BUZZER MAGNETIC 5V 16MM TH |
203 |
|
Datasheet |
SDC | Tray | Last Time Buy | Indicator, Internally Driven | DC | 5 V | 4 ~ 8V | 1.9kHz | Magnetic | Single Tone | - | 85dB @ 5V, 10cm | 30mA | Top | -10°C ~ 70°C | - | - | - | Through Hole | PC Pins | 0.630" Dia (16.00mm) |
|
|
CPS-5449-105PMBUZZER PIEZO 24V 54.00MM FLANGE |
338 |
|
Datasheet |
CPS | Box | Active | Indicator, Internally Driven | DC | 24 V | 6 ~ 28V | 3.5kHz | Piezo | Siren | - | 95dB @ 24V, 100cm | 150mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 2.126" Dia (54.00mm) |
|
|
MSR205NRBUZZER PIEZO 23MM TH |
925 |
|
Datasheet |
MSR | Bulk | Active | Indicator, Internally Driven | DC | - | 2 ~ 5V | 3.9kHz | Piezo | Single Tone | - | 85dB @ 2V, 30cm | 10mA | Top | -40°C ~ 85°C | - | - | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
|
|
CPE-750BUZZER PIEZO 12V 37.80MM PNL MNT |
481 |
|
Datasheet |
CPE | Box | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 3.6kHz | Piezo | Single Tone | - | 80dB @ 12V, 30cm | 8mA | Top | -30°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.488" Dia (37.80mm) |
|
|
AI-3232-TWF-LW160INDICATOR 12VDC 116DB 3200HZ |
486 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 1 ~ 12V | 3.2kHz | - | Single Tone | - | 116dB @ 12V, 10cm | 80mA | Top | -40°C ~ 85°C | - | - | IP65 - Dust Tight, Water Resistant | Panel Mount, Flange | Wire Leads | 1.240" Dia (31.50mm) |
|
|
PS-580QBUZZER PIEZO 12V 50MM FLANGE |
700 |
|
Datasheet |
PS | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 5 ~ 15V | 2.8kHz | Piezo | Single Tone | - | 100dB @ 12V, 100cm | 150mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.969" Dia (50.00mm) |
|
|
AI-4429-P-C12-2-RBUZZER PIEZO 12V 43MM PNL MNT |
230 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 1 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 105dB @ 12V, 10cm | 30mA | Top | -25°C ~ 75°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|
|
AI-4429-P-CP12-2-RBUZZER PIEZO 12V 43MM PNL MNT |
197 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 16V | 2.9kHz | Piezo | Pin Selectable | 1.5 PPS | 105dB @ 12V, 10cm | 25mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|

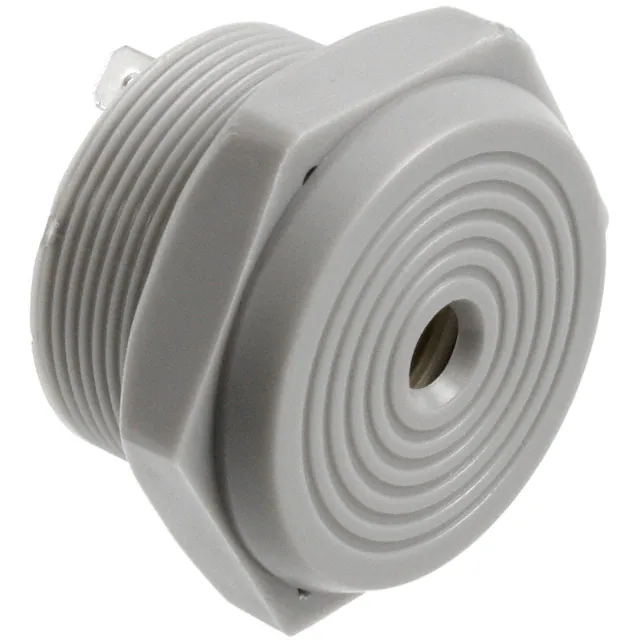

PK-27N35EPQBUZZER PIEZO 12V 36.5MM PNL MNT |
378 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 28V | 3.5kHz | Piezo | Single Tone | - | 90dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|
|
PK-27A35EPQBUZZER PIEZO 12V 36.5MM PNL MNT |
1,428 |
|
Datasheet |
PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 15mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.189" (4.80mm) | 1.437" Dia (36.50mm) |
|

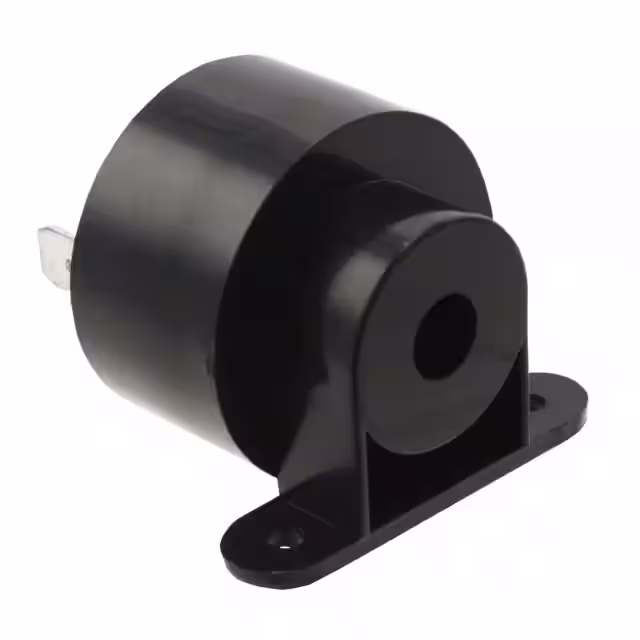

MAS27A29ERB120QBUZZER PIEZO 120V FLANGE RA |
143 |
|
Datasheet |
MAS | Bulk | Active | Indicator, Internally Driven | AC | 120 V | 60 ~ 130V | Multiple | Piezo | Single Tone | - | 90dB @ 120V, 30cm | 20mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange, Right Angle | Screw Terminal, Quick Connect Tab - 0.248" (6.30mm) | 1.752" L x 1.220" W (44.50mm x 31.00mm) |
|
|
AI-4328-P-C28-2-RBUZZER PIEZO 12V 43MM PNL MNT |
1,062 |
|
Datasheet |
AI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 28V | 2.8kHz | Piezo | Single Tone | - | 97dB @ 12V, 10cm | 8mA | Top | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.256" (6.50mm) | 1.693" Dia (43.00mm) |
|

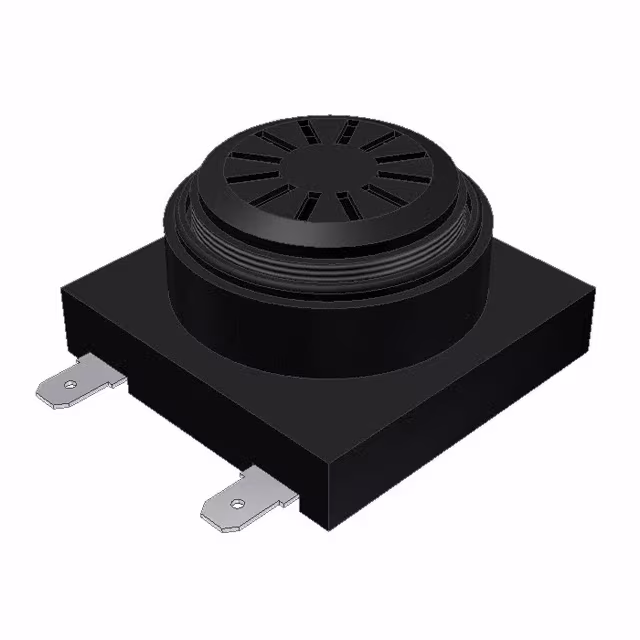

AI-4028-P-SP32-RBUZZER PIEZO 12V 40X40MM PNL MNT |
231 |
|
Datasheet |
AI | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 4 ~ 32V | 2.8kHz | Piezo | Pulse, Slow | 1.5 PPS | 98dB @ 12V, 10cm | 9mA | Side | -20°C ~ 60°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.187" (4.75mm) | 1.575" L x 1.575" W (40.00mm x 40.00mm) |
|
|
CLI-3224R-95T12VDC, 95DB, RED LED |
283 |
|
Datasheet |
CLI | Tray | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 3kHz | Piezo | Single Tone | - | 95dB @ 12V, 30cm | 25mA | Top | -20°C ~ 70°C | - | - | IP68 - Dust Tight, Waterproof | Panel Mount | PC Pins | 1.291" Dia (32.80mm) |
