TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5KP6.0CA-TPTVS DIODE 6VWM 10.3VC R6 |
500 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 6.67V | 10.3V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
MSMBJSAC5.0E3/TRTVS DIODE 5VWM 10VC SMBJ |
1,880 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 5V | 10V | 44A | 500W | No | General Purpose | 30pF @ 1MHz | -65°C ~ 150°C (TA) | Military | MIL-PRF-19500 | Surface Mount | DO-214AA (SMBJ) |
|

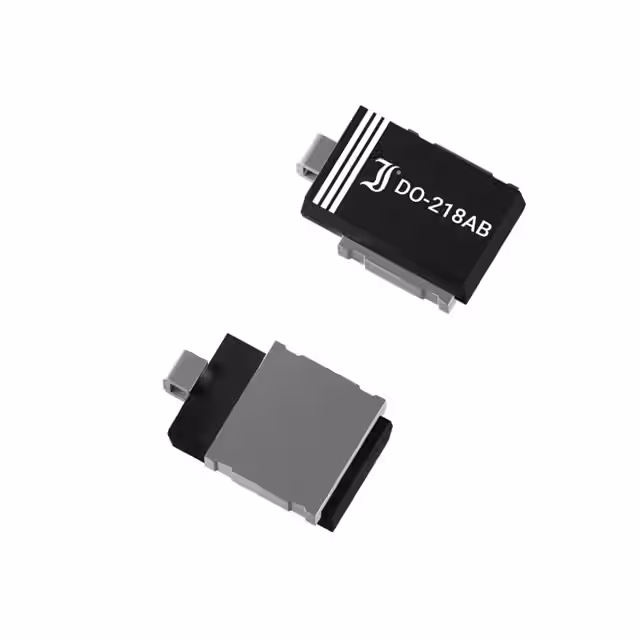

6.6SM8Z30A-AQTVS DO218AB 175DEG 30V 6600W |
750 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 30V | 33.3V | 48.4V | 136A | 6600W (6.6kW) | No | - | - | -50°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SLD36A-TPTVS DIODE 36VWM 58.1VC R6 |
488 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 36V | 40V | 58.1V | 103A | 6000W (6kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
5KP90A-TPTVS DIODE 90VWM 146VC R6 |
494 |
|
Datasheet |
R-6, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 90V | 100V | 146V | - | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | R-6 |
|
|
SZ5KASMC22AT3GZEN TVS 5000W 22V UNI DO-214AB T |
100 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SZ5KASMC5.0AT3GZEN TVS 5000W 5.0V UNI DO-214AB |
100 |
|
- |
DO-214AB, SMC | SZ5KASMC | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 543.5A | 5000W (5kW) | No | Automotive | - | -65°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
SM8S28AHE3_A/ITVS DIODE 28VWM 45.4VC DO218AB |
2,222 |
|
Datasheet |
DO-218AB | PAR® | Tape & Reel (TR) | Active | Zener | 1 | - | 28V | 31.1V | 45.4V | 145A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
PTVS2-026C-HTVS DIODE 26VWM 30VC 2DFN |
3,076 |
|
Datasheet |
2-SMD, No Lead | PTVS | Tape & Reel (TR) | Active | Zener | - | 1 | 26V | 28V | 30V (Typ) | 2000A (2kA) (8/20µs) | - | No | General Purpose | 3000pF @ 10kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 2-DFN (8x6) |
|
15KPA40CA-BTVS DIODE 40VWM 65.8VC P600 |
2,778 |
|
Datasheet |
P600, Axial | 15KPA | Bulk | Active | Zener | - | 1 | 40V | 44.7V | 65.8V | 229.5A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
|
JANTX1N6461TVS DIODE 5VWM 9VC EAXIAL |
4,560 |
|
Datasheet |
B, Axial | - | Bulk | Active | Zener | 1 | - | 5V | 5.6V | 9V | 315A (8/20µs) | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/551 | Through Hole | B, Axial |
|
JANTX1N6467TVS DIODE 40.3VWM 63.5VC AXIAL |
1,894 |
|
Datasheet |
B, Axial | - | Bulk | Active | Zener | 1 | - | 40.3V | 43.7V | 63.5V | 45A (8/20µs) | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | Military | MIL-PRF-19500/551 | Through Hole | B, Axial |
|
AK3-038C-YTVS DIODE 38VWM 95VC AXIAL |
3,901 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3-Y | Bulk | Active | Zener | - | 1 | 38V | 40V | 95V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 10000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
1N6470US/TRUNI-DIRECTIONAL TVS |
1,309 |
|
Datasheet |
SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.5V | 11V | 137A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | D-5C |
|
|
1N6473US/TRUNI-DIRECTIONAL TVS |
100 |
|
Datasheet |
SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 27V | 41.4V | 36.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | D-5C |
|
|
1N6472US/TRUNI-DIRECTIONAL TVS |
100 |
|
Datasheet |
SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V | 16.4V | 26.5V | 57A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | D-5C |
|
|
1N6104US/TRBI-DIRECTIONAL TVS |
100 |
|
Datasheet |
SQ-MELF, B | - | Tape & Reel (TR) | Active | Zener | - | 1 | 6.2V | 7.79V | 12.1V | 41.3A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
|
|
1N6475US/TRUNI-DIRECTIONAL TVS |
100 |
|
Datasheet |
SQ-MELF, C | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40.3V | 43.7V | 63.5V | 24A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Surface Mount | D-5C |
|
|
1N6114US/TRBI-DIRECTIONAL TVS |
100 |
|
Datasheet |
SQ-MELF, B | - | Tape & Reel (TR) | Active | Zener | - | 1 | 16.7V | 20.9V | 30.5V | 16.4A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
|
|
1N6465US/TRUNI-DIRECTIONAL TVS |
1,719 |
|
Datasheet |
SQ-MELF, B | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 27V | 41.4V | 12A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | B, SQ-MELF |
