TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STPK30KP24A30000W, 24V, SPD4-1, TRANSIENT V |
2,814 |
|
Datasheet |
SPD4-1 | STPK30KP | Bulk | Active | Zener | 1 | - | 24V | 26.7V | 39.8V | 753A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SPD4-1 |
|
LTKAK3-066C-TPTVS DIODE 66VWM 120VC SMTO-218 |
1,418 |
|
Datasheet |
Nonstandard SMD | LTKAK3 | Tube | Active | Zener | 1 | - | 66V | 72V | 120V | 500A | - | No | General Purpose | 6000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SMTO-218 Tab |
|
SMTAK3-076CTVS DIODE 76VWM 140VC |
4,599 |
|
Datasheet |
4-SMD | - | Bulk | Active | Zener | - | 1 | 76V | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 6000pF @ 10kHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | - |
|
AK10E-066CTVS DIODE 66VWM 120VC AXIAL |
3,677 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK10E | Bulk | Active | Zener | - | 1 | 66V | 72V | 120V | 10000A (10kA) (8/20µs) | - | No | Telecom | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
1N8167/TRLOW CAPACITANCE TVS |
100 |
|
Datasheet |
A, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.7V | 64.6V | 2.32A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
|
1N8150/TRLOW CAPACITANCE TVS |
100 |
|
Datasheet |
A, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.65V | 13.5V | 11.1A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
PTVS3-076C-SHTVS DIODE 76VWM 140VC SMD |
1,000 |
|
Datasheet |
2-SMD | PTVS | Tray | Active | Zener | - | 1 | 76V (Max) | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 1700pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SMD |
|
|
1N8155USE3/TRLOW CAPACITANCE TVS |
167 |
|
Datasheet |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13.8V | 20.2V | 7.42A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
1N8152/TRLOW CAPACITANCE TVS |
2,195 |
|
Datasheet |
A, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 9V | 10.4V | 15.6V | 9.62A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | A, Axial |
|
1N6060ATVS DIODE 64VWM 103VC DO13 |
4,871 |
|
Datasheet |
DO-13 | - | Bulk | Active | Zener | - | 1 | 64V | 71.3V | 103V | 14.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-13 |
|
PTVS6-076C-MTVS DIODE 76VWM 135VC 2SMD |
1,521 |
|
Datasheet |
2-SMD, Flat Leads | PTVS | Tape & Reel (TR) | Active | Zener | - | 1 | 76V (Max) | 85V | 135V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 3300pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-SMD |
|

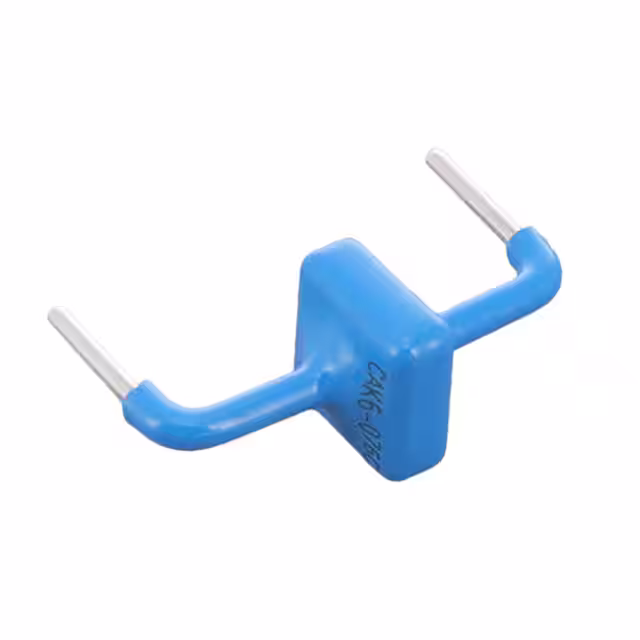

CAK6-076C PBFREETRANSIENT VOLTAGE SUPPRES |
3,388 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | - | Bulk | Active | Zener | - | 1 | 76V | 83V | 135V | 6000A (6kA) (8/20µs) | - | No | General Purpose | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK6E-066CTVS DIODE 66VWM 120VC AXIAL |
2,457 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK6E | Bulk | Active | Zener | - | 1 | 66V | 72V | 120V | 6000A (6kA) (8/20µs) | - | No | Telecom | - | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK10-030CTVS DIODE 30VWM 58VC AXIAL |
3,772 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK10 | Tray | Active | Zener | - | 1 | 30V | 32V | 58V | 10000A (10kA) (8/20µs) | - | No | General Purpose | 11000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
AK20-016C-YTVS DIODE 16VWM 30VC AXIAL |
4,161 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK20-Y | Bulk | Active | Zener | - | 1 | 16V | 17.5V | 30V | 20000A (20kA) (8/20µs) | - | No | General Purpose | 32000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
SMDJ40A-HRTVS DIODE 40VWM 64.5VC DO214AB |
1,120 |
|
Datasheet |
DO-214AB, SMC | SMDJ-HR | Tape & Reel (TR) | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 46.5A | 3000W (3kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
LTKAK6-076C-TPTVS DIODE 76VWM 140VC SMTO-218 |
4,760 |
|
Datasheet |
Nonstandard SMD | LTKAK6 | Tube | Active | Zener | - | 1 | 76V | 85V | 140V | 6000A (6kA) (8/20µs) | - | No | General Purpose | 4500pF @ 10kHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SMTO-218 Tab |
|
AK1-380C-YTVS DIODE 380VWM 570VC AXIAL |
1,226 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK1-Y | Bulk | Active | Zener | - | 1 | 380V | 401V | 570V | 1000A (1kA) (8/20µs) | - | No | General Purpose | 2000pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
|
|
MX1N8169US/TRLOW CAPACITANCE TVS |
4,802 |
|
Datasheet |
SQ-MELF, A | - | Tape & Reel (TR) | Active | Zener | 1 | - | 47V | 53.2V | 77V | 1.95A | 150W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
|
AK3-208CTVS DIODE 208VWM 262VC AXIAL |
3,397 |
|
Datasheet |
Axial, Right Angle Bend (24.15mm Center) | AK3 | Bulk | Active | Zener | - | 1 | 208V | 223V | 306V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 2400pF @ 10kHz | -55°C ~ 125°C (TJ) | - | - | Through Hole | Axial |
