TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1.5SMC36CA/TR71.5SMC DO214AB, BIDIRECTIONAL 36 |
490 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 30.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
;;2.jpg)
|
SMCJ20ATVS DIODE 20VWM 32.4VC SMC |
417 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 20V | 22.2V | 32.4V | 46.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
ACPDT-24VTVS DIODE 24VWM 47VC SOT23-3 |
307 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V | 25V | 47V | 1A (8/20µs) | 47W | No | - | 10pF @ 1MHz | - | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SMCJ17A-E3/57TTVS DIODE 17VWM 27.6VC DO214AB |
1,651 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 17V | 18.9V | 27.6V | 54.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC7.5A-E3/57TTVS DIODE 6.4VWM 11.3VC SMC |
1,425 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 6.4V | 7.13V | 11.3V | 133A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
10BJ28CATVS DIODE 28VWM 45.4VC SMB |
890 |
|
Datasheet |
DO-214AA, SMB | 10BJ | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 22.1A | 1000W (1kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMCJ7.5A-E3/57TTVS DIODE 7.5VWM 12.9VC DO214AB |
855 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.5V | 8.33V | 12.9V | 116.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ7.0A-E3/57TTVS DIODE 7VWM 12VC DO214AB |
804 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7V | 7.78V | 12V | 125A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ160A-E3/57TTVS DIODE 160VWM 259VC DO214AB |
522 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC130CA-E3/57TTVS DIODE 111VWM 179VC SMC |
472 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 111V | 124V | 179V | 8.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5SMC12CATVS DIODE 10.2VWM 16.7VC DO214AB |
685 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 10.2V | 11.4V | 16.7V | 91A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ9.0CA/TR7SMCJ DO214AB, BIDIRECTIONAL 9V 1 |
378 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Tape & Reel (TR) | Active | Zener | - | 1 | 9V | 10V | 15.4V | 97.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

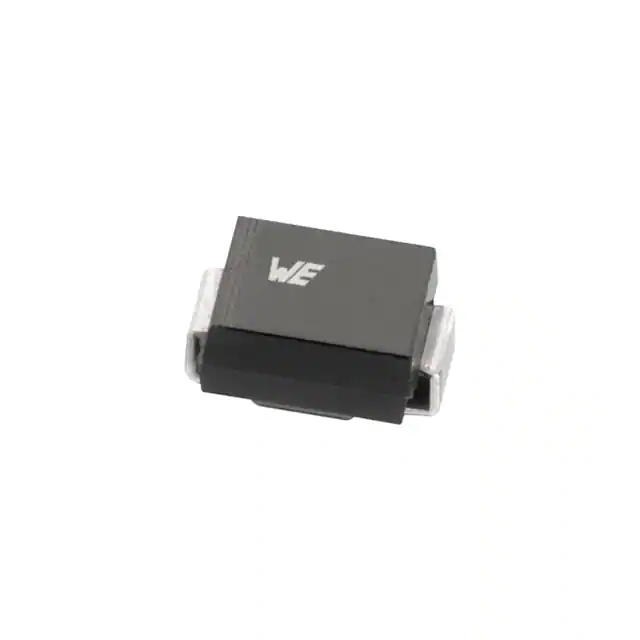

824520302TVS DIODE 300VWM 486VC DO214AA |
164 |
|
Datasheet |
DO-214AA, SMB | WE-TVSP | Tape & Reel (TR) | Active | Zener | 1 | - | 300V (Max) | 353V | 486V | 100A | - | No | General Purpose | - | -65°C ~ 150°C (TA) | - | - | Surface Mount | DO-214AA |
|
|
1.5SMC8.2A-E3/57TTVS DIODE 7.02VWM 12.1VC SMC |
833 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 7.02V | 7.79V | 12.1V | 124A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
1.5KE82CA-TPTVS DIODE 70.1VWM 113VC DO201AE |
823 |
|
Datasheet |
DO-201AE, Axial | - | Tape & Reel (TR) | Active | Zener | - | 1 | 70.1V | 77.9V | 113V | - | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
1KSMB12ATVS DIODE 10.2VWM 16.7VC DO214AA |
3,856 |
|
Datasheet |
DO-214AA, SMB | 1KSMB | Tape & Reel (TR) | Active | Zener | 1 | - | 10.2V | 11.4V | 16.7V | 59.9A | 1000W (1kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMBJ) |
|
|
SMC5K85A-M3/HTVS DIODE 85VWM 137VC DO214AB |
1,717 |
|
Datasheet |
DO-214AB, SMC | TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 85V | 94.4V | 137V | 36.5A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
|
1.5SMC22A-E3/57TTVS DIODE 18.8VWM 30.6VC SMC |
1,538 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 49A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC6.8CA-E3/57TTVS DIODE 5.8VWM 10.5VC SMC |
1,500 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 5.8V | 6.45V | 10.5V | 143A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
1.5SMC200CA-E3/57TTVS DIODE 171VWM 274VC SMC |
1,450 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC, TransZorb® | Tape & Reel (TR) | Active | Zener | - | 1 | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
