TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3.0SMCJ43ATVS DIODE 43VWM 69.4VC SMC |
2,834 |
|
Datasheet |
DO-214AB, SMC | 3.0SMCJ | Tape & Reel (TR) | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 43.2A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ70CA-13TVS BI-DIR 70V 1500W SMC |
1,771 |
|
Datasheet |
DO-214AB, SMC | - | Cut Tape (CT) | Active | Zener | - | 1 | 70V | 77.8V | 113V | 13.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
|
SMCJ8.5CA-13TVS DIODE 8.5V 14.4V SMC |
407 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Cut Tape (CT) | Active | Zener | - | 2 | 8.5V | 9.44V | 14.4V | 104.2A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ14CA-13TVS DIODE 14V 23.2V SMC |
250 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Cut Tape (CT) | Active | Zener | - | 2 | 14V | 15.6V | 23.2V | 64.7A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
|
SMCJ8.0CA-13TVS BI-DIR 8.0V 1500W SMC |
158 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Cut Tape (CT) | Active | Zener | - | 2 | 8V | 8.89V | 13.6V | 110.3A | 1500W (1.5kW) | Yes | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | DO-214AB (SMCJ) |
|
MAX3206EETCESD PROTECTION ARRAY |
3,638 |
|
Datasheet |
12-WQFN Exposed Pad | - | Bulk | Active | Steering (Rail to Rail) | 6 | - | 5.5V (Max) | - | 100V | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-TQFN (4x4) |
|
D50P-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
234 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D50N-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
230 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L50UP-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
214 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
L50UN-Q1PRESSFIT DIODE FOR AUTOMOTIVE AP |
212 |
|
Datasheet |
- | - | Cut Tape (CT) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ATV30C120JB-HFTVS DIODE 12VWM 19.9VC DO214AB |
2,980 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13.3V | 19.9V | 150.75A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
ATV30C240JB-HFTVS DIODE 24VWM 38.9VC DO214AB |
2,627 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 77.12A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
ATV30C400JB-HFTVS DIODE 40VWM 64.5VC DO214AB |
2,511 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 46.51A | 3000W (3kW) | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
5.0SMDJ16CASTVS DIODE 16VWM 26VC DO214 TR13 |
8,965 |
|
Datasheet |
DO-214AB, SMC | 5.0SMDJxxS | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | 17.8V | 26V | 192.3A | 5000W (5kW) | No | Telecom | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMCJ) |
|
CM1224-04MRTVS DIODE 3.3VWM 10VC 10MSOP |
3,720 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 3.3V | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | HDMI | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
3.0SMCJ30CA_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,600 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 30V | 33.3V | 48.4V | 62A | 3000W (3kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|

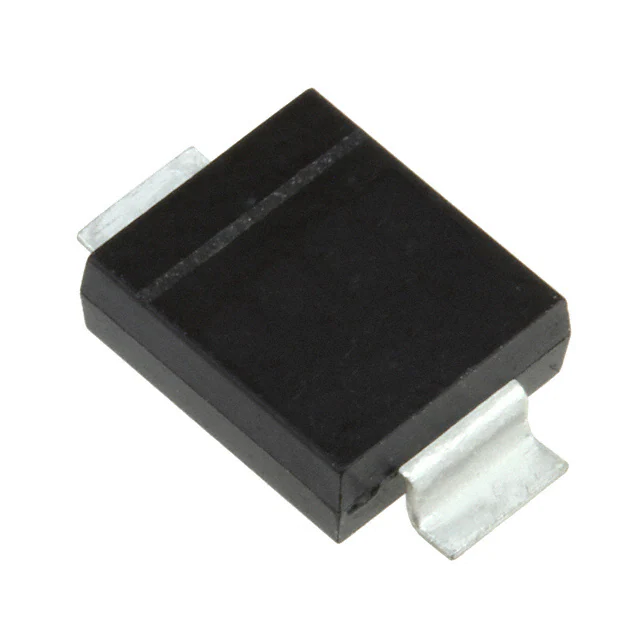

MSMCG43CATVS DIODE 43VWM 69.4VC SMCG |
397 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | - | 1 | 43V | 47.8V | 69.4V | 21.6A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
|
MSMCG160CATVS DIODE 160VWM 259VC SMCG |
200 |
|
Datasheet |
DO-215AB, SMC Gull Wing | - | Bulk | Active | Zener | - | 1 | 160V | 178V | 259V | 5.8A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | Military | MIL-PRF-19500 | Surface Mount | DO-214AB (SMCG) |
|
1.5KE18CA-E3/51TVS DIODE 15.3VWM 25.2VC 1.5KE |
126 |
|
Datasheet |
DO-201AA, DO-27, Axial | TransZorb® | Bulk | Obsolete | Zener | - | 1 | 15.3V | 17.1V | 25.2V | 59.5A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | 1.5KE |
|
15KPA160ATVS DIODE 160VWM 258.6VC P600 |
3,200 |
|
Datasheet |
P600, Axial | 15KPA | Tape & Reel (TR) | Active | Zener | 1 | - | 160V | 178.7V | 258.6V | 58.4A | 15000W (15kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P600 |
