TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8ULC03-2TVS DIODE 3.3VWM 8VC 8-SO |
1,450 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | S8ULCxx-2 | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 4V | 8V | 1A | 500W | No | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
SMCJE58CATVS DIODE 58VWM 93.6VC SMC |
6,000 |
|
Datasheet |
DO-214AB, SMC | SMCJE | Tape & Reel (TR) | Active | Zener | - | 1 | 58V | 64.4V | 93.6V | 16.1A | 1500W (1.5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMC |
|
P6SMB36CAHE3_A/HTVS DIODE 30.8VWM 49.9VC DO214AA |
5,850 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 30.8V | 34.2V | 49.9V | 12A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB33CAHE3_A/HTVS DIODE 28.2VWM 45.7VC DO214AA |
5,800 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 13.1A | 600W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
SMCJ5.0CATVS DIODE 5VWM 9.2VC SMC |
3,411 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 6.4V | 9.2V | 163A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
SMCJ45CATVS DIODE 45VWM 72.7VC SMC |
3,098 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 20.6A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
PE4136C2A_R1_00001HI-SURGE ESD PROTECTION |
2,980 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 75V | 9A (8/20µs) | - | No | General Purpose | 100pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
S8ULC36-2TVS DIODE 36VWM 60VC 8-SO |
2,459 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | S8ULCxx-2 | Tape & Reel (TR) | Active | Zener | 2 | - | 36V (Max) | 40V | 60V | 1A | 500W | Yes | General Purpose | 3pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
5KP45CATVS, BI-DIR, 5000W, 45V, P600 |
1,734 |
|
Datasheet |
P600, Axial | 5KP | Tape & Reel (TR) | Active | Zener | - | 1 | 45V | 50V | 72.7V | 68.8A | 5000W (5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | P-600 |
|
UPT10E3/TR7TVS DIODE 10VWM 18VC POWERMITE 1 |
1,467 |
|
Datasheet |
DO-216AA | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 10V | 11V | 18V | 8.33A | 1000W (1kW) | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | Powermite 1 (DO216-AA) |
.jpg)
|

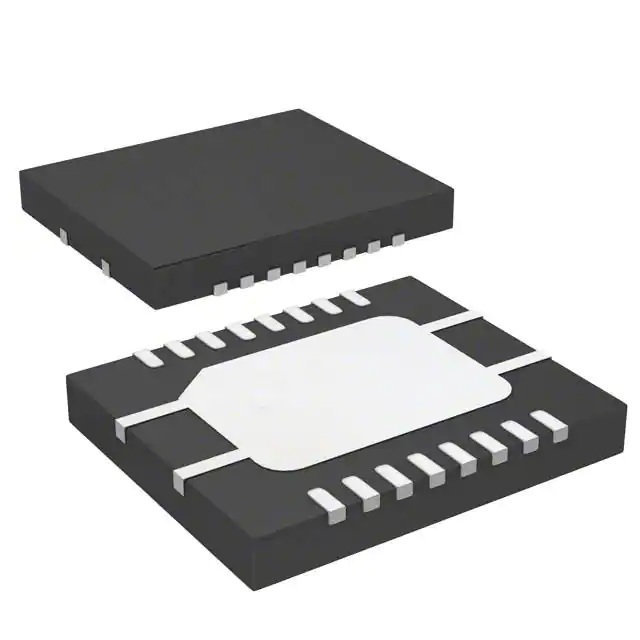

DPIULC6-6DJLTVS DIODE 3VWM 17VC 18DFN |
3,000 |
|
Datasheet |
18-VFDFN Exposed Pad | DPI | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 3V | 6V | 17V | 5A (8/20µs) | - | Yes | General Purpose | 1.5pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 18-DFN (5x6) |
|
P4HE5.0A-AU_R1_000A1SURFACE MOUNT TRANSIENT VOLTAGE |
3,000 |
|
Datasheet |
SOD-123H | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 43.5A | 400W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123HE |
|

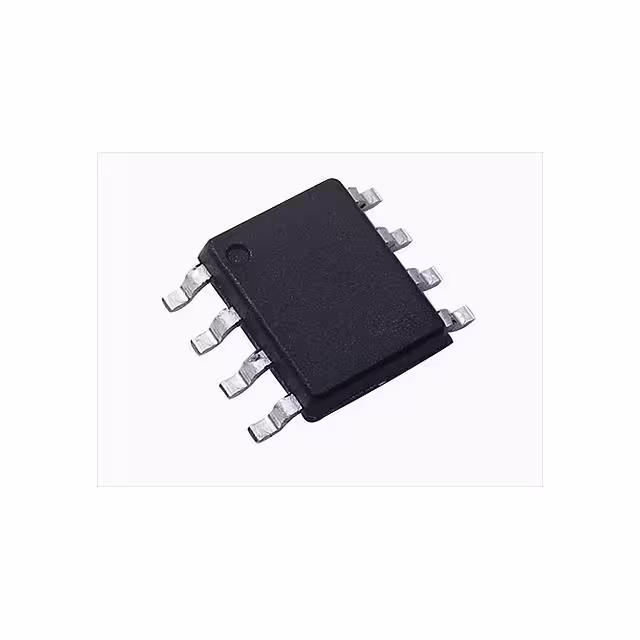

LCDA36TVS DIODE 36VWM 60VC 8-SO |
2,007 |
|
Datasheet |
8-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 4 | 36V (Max) | 40V | 60V | 1A | 300W | No | USB | 5pF @ 1MHz (Max) | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SO |
|
1.5KE200A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
1,238 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE170CA_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
1,225 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | - | 1 | 145V | 162V | 234V | 6.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
1.5KE120A_R2_00001GLASS PASSIVATED JUNCTION TRANSI |
1,034 |
|
Datasheet |
DO-201AE, Axial | 1.5KE | Tape & Reel (TR) | Active | Zener | 1 | - | 102V | 114V | 165V | 9.1A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AE |
|
|
SMCJ33ATVS DIODE 33VWM 53.3VC |
3,100 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 33V | 36.7V | 53.3V | 28.14A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
NSPM0101MUT5GTVS DIODE 10VWM 20VC 2UDFN |
3,311 |
|
Datasheet |
2-UDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 10V (Max) | 12V | 20V | - | - | No | General Purpose | 400pF @ 1MHz (Max) | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-UDFN (1.6x1) |
;;2.jpg)
|
SMA4F100AYTVS DIODE 100VWM 162VC SMAFLAT |
9,850 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA4F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 100V (Max) | 111V | 162V | 2.5A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMAflat |
|
SZ1SMA51AT3GZEN TVS 400W 51V UNI DO-214AC |
9,837 |
|
Datasheet |
DO-214AC, SMA | SZ1SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 4.9A | 400W | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
