TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P6SMB36AHM3_A/HTVS DIODE 30.8VWM 49.9VC DO214AA |
9,000 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 12A | 600W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB30AHM3_A/HTVS DIODE 25.6VWM 41.4VC DO214AA |
6,731 |
|
Datasheet |
DO-214AA, SMB | P6SMB, TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 25.6V | 28.5V | 41.4V | 14.5A | 600W | No | Telecom | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
;;2.jpg)
|
SMBJ30AHE3_A/HTVS DIODE 30VWM 48.4VC DO214AA |
6,701 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30V | 33.3V | 48.4V | 12.4A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ33AHM3_A/HTVS DIODE 33VWM 53.3VC DO214AA |
6,000 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 33V | 36.7V | 53.3V | 11.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMB) |
|
|
SMBJ40AHE3_A/HTVS DIODE 40VWM 64.5VC DO214AA |
5,050 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 40V | 44.4V | 64.5V | 9.3A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
SZ1SMA150AT3GTVS DIODE 150VWM 243VC SMA |
5,000 |
|
Datasheet |
DO-214AC, SMA | SZ1SMA | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 1.7A | 400W | No | - | 127pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|

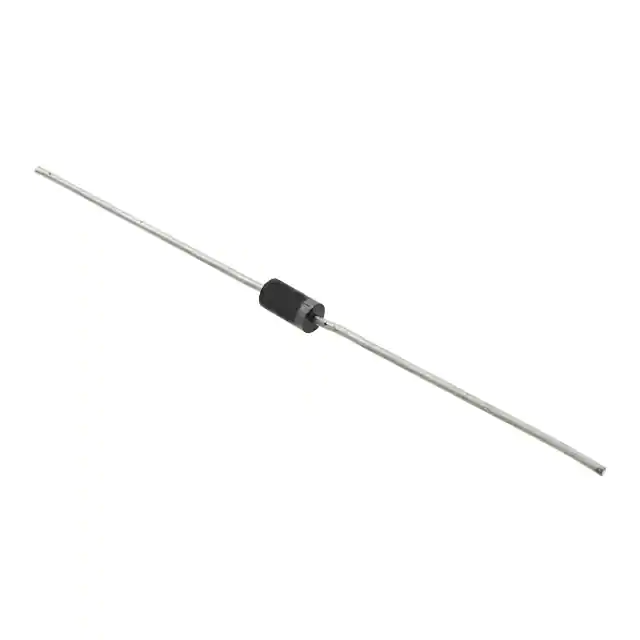

P4KE400A-TPTVS DIODE 342VWM 548VC DO41 |
4,878 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 548V | 750mA | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SAC8.5-TPTVS DIODE 8.5VWM 14VC DO15 |
3,692 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8.5V | 9.44V | 14V | 34A | 500W | No | General Purpose | - | -55°C ~ 175°C (TA) | - | - | Through Hole | DO-15 |
|
|
SMBJ14AHE3_A/HTVS DIODE 14VWM 23.2VC DO214AA |
3,441 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJ5.0AHE3_A/ITVS DIODE 5VWM 9.2VC DO214AA |
3,200 |
|
Datasheet |
DO-214AA, SMB | TransZorb® | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.4V | 9.2V | 65.2A | 600W | No | - | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
NUP6012PMUTAGTVS DIODE 4VWM 6UDFN |
4,796 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Zener | 6 | - | 4V (Max) | 5.2V | - | - | - | No | General Purpose | 0.7pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.6x1.6) |
|

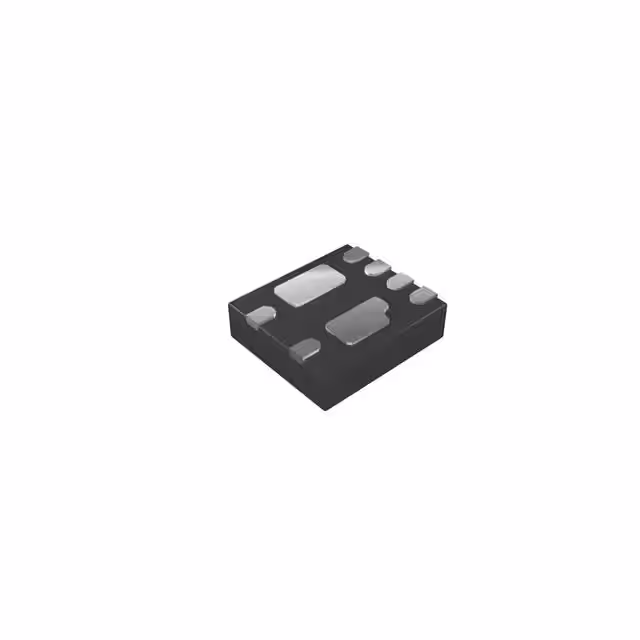

AZ4920-01FTVS DEVICE 1-CHANNEL 20V |
2,990 |
|
Datasheet |
6-UFDFN Exposed Pad | - | Strip | Active | Zener | 1 | - | 20V (Max) | 21.8V | - | - | - | Yes | General | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN2018P6E |
|
1.5SMC180CA/TR131.5SMC, DO-214AB, 154V, 246V, RE |
2,942 |
|
Datasheet |
DO-214AB, SMC | 1.5SMC | Tape & Reel (TR) | Active | Zener | - | 1 | 154V | 171V | 246V | 6.2A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AB (SMC) |
|
1V5KE82ATVS DIODE 70.1VWM 113VC DO201AD |
2,500 |
|
Datasheet |
DO-201AD, Axial | - | Bulk | Active | Zener | 1 | - | 70.1V | 77.9V | 113V | 13.3A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
SA20CATVS DIODE 20VWM 32.4VC DO204AC |
1,345 |
|
Datasheet |
DO-204AC, DO-15, Axial | SA | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 15.7A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P4KE220ATVS DO15 185V 400W UNIDIR |
1,143 |
|
Datasheet |
DO-204AL, DO-41, Axial | P4KE | Tape & Reel (TR) | Active | Zener | 1 | - | 185V | 209V | 328V | 1.3A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AL (DO-41) |
|
ESDR7534W1T2GTVS DIODE 5VWM 30VC SC88/SC70-6 |
2,068 |
|
Datasheet |
6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6V | 30V | - | - | Yes | General Purpose | 1.9pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88/SC70-6/SOT-363 |
;;2.jpg)
|
SMA4F170ATVS DIODE 170VWM 275VC SMAFLAT |
17,879 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 170V (Max) | 190V | 275V | 1.4A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
|
CM1233-08DETVS DIODE 5.5VWM 10VC 16WDFN |
9,952 |
|
Datasheet |
16-WDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V (Max) | 6V | 10V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WDFN (6x4) |
|
|
SMA4F130ATVS DIODE 130VWM 209VC SMAFLAT |
9,980 |
|
Datasheet |
DO-221AC, SMA Flat Leads | SMA4F, TRANSIL™ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 130V (Max) | 144V | 209V | 1.9A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMAflat |
