TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SZ1.5SMC20AT3GTVS DIODE 17.1VWM 27.7VC SMC |
34,130 |
|
Datasheet |
DO-214AB, SMC | - | Tape & Reel (TR) | Active | Zener | 1 | - | 17.1V | 19V | 27.7V | 54A | 1500W (1.5kW) | No | - | - | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC |
|
ESDL3552BPFCT5GESD PROTECTION |
9,699 |
|
Datasheet |
3-XFDFN | - | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6.5V | 21.5V | 2A | - | No | USB | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 3-X4DFN (0.62x0.32) |
|
TV02W101-GTVS DIODE 100VWM 162VC SOD123 |
6,951 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 100V | 111V | 162V | 1.23A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123F |
|
|
GSEJ5U83TVS, ESD, ARRAY, UNI-DIR, 5.0V, |
6,000 |
|
Datasheet |
SOT-563, SOT-666 | - | Tape & Reel (TR) | Active | Zener | 5 | - | 5V (Max) | 6V | 12V | 1.8A (8/20µs) | 25W | No | General Purpose | 8.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-563 |
|
SA15ATVS, UNI-DIR, 500W, 15V, DO-204A |
3,968 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 20.5A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
AZ3105-01FTVS SURGE PROTECTOR 1-CH 5V |
2,950 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 5V (Max) | 6V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
SD15LCCTVS DIODE 15VWM 31.8VC SOD323 |
2,850 |
|
Datasheet |
SC-76, SOD-323 | SDxxLCC | Tape & Reel (TR) | Active | Zener | - | 1 | 15V (Max) | 16.7V | 31.8V | 10A (8/20µs) | 350W | No | USB | 5pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

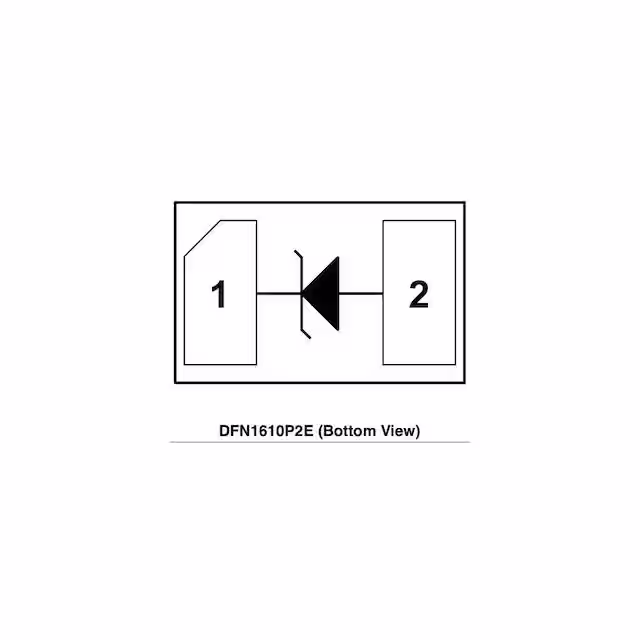

AZ3103-01FTVS SURGE PROTECTOR 1-CH 3.3V |
2,850 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|
PGSMAJ30AHR3GTVS DIODE 30VWM 48.4VC DO214AC |
2,562 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
P6KE200ATVS, UNI-DIR, 600W, 171V, DO-204 |
2,484 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Cut Tape (CT) | Active | Zener | 1 | - | 171V | 190V | 274V | 2.2A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|

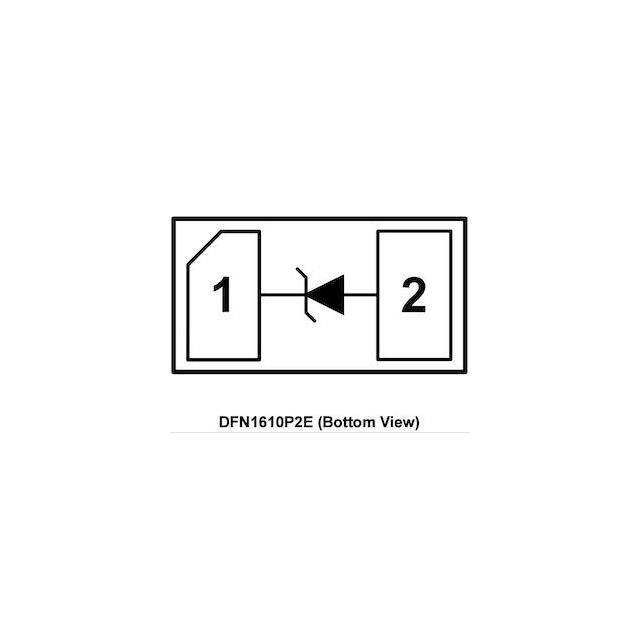

AZ9724-01FTVS DEVICE DFN1610P2E 1-CH 24V |
2,440 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | - | - | -55°C ~ 125°C (TC) | Automotive | AEC-Q101 | Surface Mount | DFN1610P2E |
|
SMF150A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,950 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 150V | 167V | 243V | 700mA | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
P4SMAJ200A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
1,670 |
|
Datasheet |
DO-214AC, SMA | P4SMAJ | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | 220V | 324V | 1.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SA15CATVS, BI-DIR, 500W, 15V, DO-204AC |
1,074 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 15V | 16.7V | 26.9V | 18.6A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
TGL41-400ATVS MELF 342V 400W UNIDIR |
5,000 |
|
Datasheet |
DO-213AB, MELF | - | Tape & Reel (TR) | Active | Zener | 1 | - | 342V | 380V | 548V | 700mA | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-213AB (MELF) |
|
SMCJ5.0ATVS DIODE 5VWM 9.2VC |
3,190 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 163.04A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
ESD208B102ELSE6327XTSA1TVS DIODE 3.3VWM 8.1VC TSSLP-2-3 |
4,204 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 3.65V | 8.1V | 4A (8/20µs) | 30W | No | General Purpose | 6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
|
HSP061-2N4TVS DIODE 3VWM 4UQFN |
62,077 |
|
Datasheet |
4-XFDFN Exposed Pad | HSP | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 3V | 6V | - | - | - | Yes | Ethernet, HDMI | 0.6pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 4-uQFN (1x0.8) |
|
NSPU3061N2T5GTVS DIODE 6.3VWM 10.4VC 2X2DFN |
55,443 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6.3V (Max) | 6.4V | 10.4V | 30A (8/20µs) | - | No | General Purpose | 90pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X2DFN (1x0.6) |
|
|
ESDM3551N2T5GTVS DIODE 5.5VWM 8.2VC 2X2DFN |
12,676 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5.5V (Max) | 5.6V | 8.2V | 8A | - | No | USB | 21pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X2DFN (1x0.6) |
