TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESD8101FCT5GTVS DIODE 3.3VWM 10VC 2DSN |
4,421 |
|
Datasheet |
01005 (0402 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3.3V (Max) | 5.5V | 10V | 16A | - | No | General Purpose | 0.2pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-DSN (0.44x0.23) |
|
ESDARF02-1BU2TVS DIODE 3VWM 30VC ST0201 |
27,520 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 3V | 6V | 30V | 1A (8/20µs) | 30W | No | General Purpose | 0.24pF @ 200MHz ~ 3GHz | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
P4SMA550ATVS, UNI-DIR, 400W, 550V, DO-214 |
14,670 |
|
Datasheet |
DO-214AC, SMA | P4SMAx | Tape & Reel (TR) | Active | Zener | 1 | - | 495V | 522.5V | 760V | 500mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
NUP1128HT1GTVS DIODE 26.5VWM 55VC SOD323 |
11,337 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26.5V (Max) | 27.5V | 55V | 3A (8/20µs) | 165W | No | CAN | 11pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
AQHV36-01ETGTVS DIODE 36VWM 60VC SOD882 |
9,900 |
|
Datasheet |
SOD-882 | AQHV | Tape & Reel (TR) | Active | Zener | 1 | - | 36V (Max) | 40V | 60V | 2A (8/20µs) | 200W | No | - | 25pF @ 1MHz | -40°C ~ 150°C | Automotive | AEC-Q101 | Surface Mount | SOD-882 |
|
AZ5015-01HTVS DEVICE 1-CHANNEL 5V |
5,000 |
|
Datasheet |
SC-79, SOD-523 | - | Strip | Active | Zener | 1 | - | 5V (Max) | 5.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-523 |
|

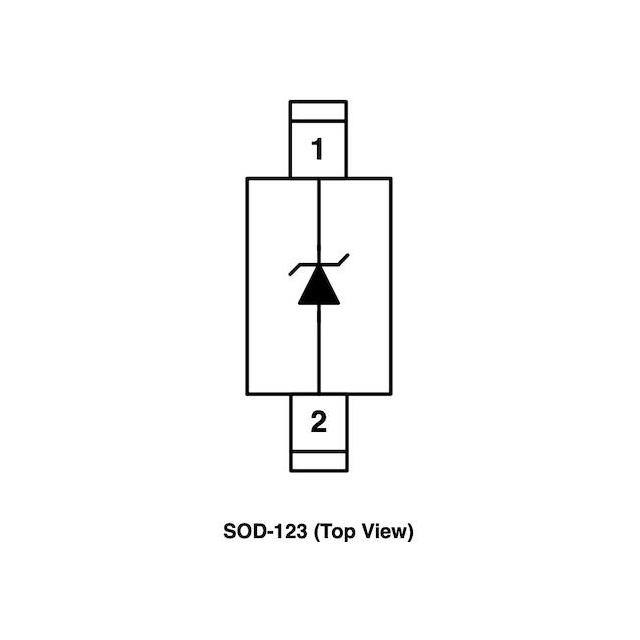

AZ4024-01GTVS DEVICE HIGH VOLTAGE 1-CH 24V |
4,880 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|
SESD5V0S1ULATVS DIODE 5VWM 12VC DFN1006-2L |
4,853 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V (Max) | 6.4V | 12V | 11A (8/20µs) | 110W | No | Telecom | 120pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2L |
|
|
SZNUP1128HT1GTVS DIODE 26.5VWM 55VC SOD323 |
4,265 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26.5V (Max) | 27.5V | 55V | 3A (8/20µs) | 165W | No | CAN | 11pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
SMBJE28CAHTVS DIODE 28VWM BI |
4,080 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 28V | 31.1V | 45.4V | 13.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
PGSMAJ16A R3GTVS DIODE 16VWM 26VC DO214AC |
3,600 |
|
Datasheet |
DO-214AC, SMA | PGSMAJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 16V | 17.8V | 26V | 15.4A | 400W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AC (SMA) |
|
ESD7371XV2T1GTVS DIODE 5.3VWM SOD523 |
3,563 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5.3V (Max) | 7V | - | - | - | No | RF Antenna | 0.43pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
SMBJE22CAHTVS DIODE 22VWM BI |
3,000 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 22V | 24.4V | 35.5V | 16.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE16CAHTVS DIODE 16VWM BI |
3,000 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 16V | 17.8V | 26V | 23.1A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|
|
SMBJE40CAHTVS DIODE 40VWM BI |
3,000 |
|
Datasheet |
DO-214AA, SMB | SMBJExxH | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 9.3A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AA (SMBJ) |
|

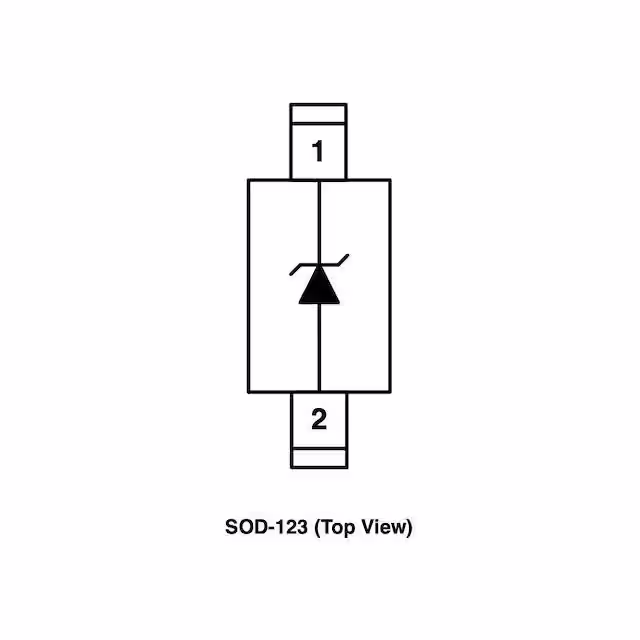

AZ3003-01GTVS SURGE PROTECTOR 1-CH 3.3V |
3,000 |
|
Datasheet |
SOD-123 | - | Strip | Active | Zener | 1 | - | 3.3V (Max) | 4V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-123 |
|

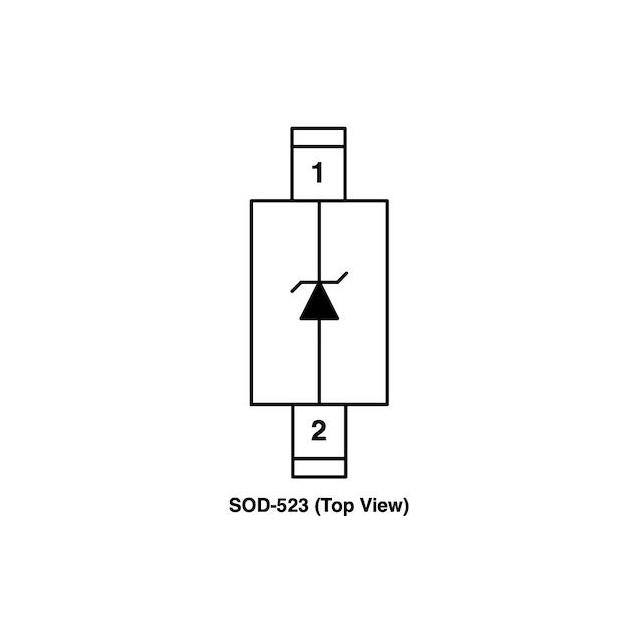

AZ5013-01HTVS DEVICE 1-CHANNEL 3.3V |
3,000 |
|
Datasheet |
SC-79, SOD-523 | - | Strip | Active | Zener | 1 | - | 3.3V (Max) | 4.5V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SOD-523 |
|

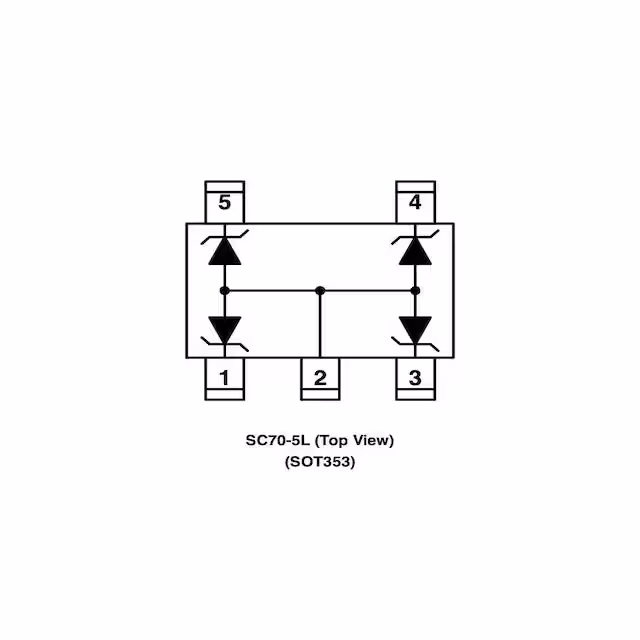

AZ2115-04CTVS DEVICE LOW SPEED 4-CH 5V |
3,000 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Strip | Active | Zener | 4 | - | 5V (Max) | 6V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | SC-70-5 |
|
AZ4520-01FTVS DEVICE HIGH VOLTAGE 1-CH 20V |
2,990 |
|
Datasheet |
2-UDFN | - | Strip | Active | Zener | 1 | - | 20V (Max) | 22.8V | - | - | - | Yes | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN1610P2E |
|

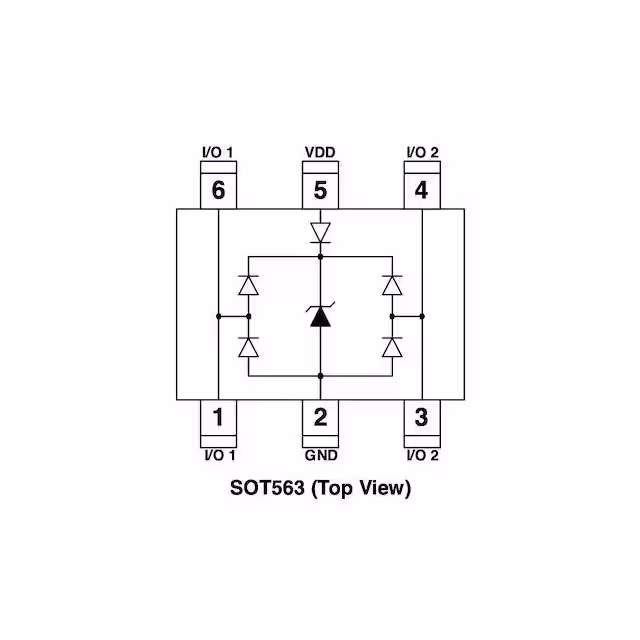

AZC299-02RLOW CAP ESD PROTECTION 2-CH 5V |
2,990 |
|
Datasheet |
SOT-563, SOT-666 | - | Strip | Active | Zener | 2 | - | 5V (Max) | 6V | - | - | - | No | USB | - | -40°C ~ 125°C (TC) | - | - | Surface Mount | SOT-563 |
