TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM1223-04MRTRANS VOLTAGE SUPPRESSOR DIODE |
16,000 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
GSMA6J10CATVS, BI-DIR, 600W, 10V, DO-214AC |
15,000 |
|
Datasheet |
DO-214AC, SMA | GSMA6Jx | Tape & Reel (TR) | Active | Zener | - | 1 | 10V | 11.1V | 17V | 35.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
SMF14A_R1_00001SOD-123FL, TVS |
14,990 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 8.6A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
GSOT04C-G3-08TVS DIODE 4VWM 14.3VC SOT23 |
14,799 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | General Purpose | 310pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
P6SMB180AT3GTVS DIODE 154VWM 246VC 425TEPBGA |
12,500 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 154V | 171V | 246V | 2.4A | 600W | No | General Purpose | 130pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJE70AHTVS DIODE 70VWM UNI |
9,980 |
|
Datasheet |
DO-214AC, SMA | SMAJExxH | Tape & Reel (TR) | Active | Zener | 1 | - | 70V | 77.8V | 113V | 3.6A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMA |
|
VCAN33C2-03GHE3-18BIDIRECTIONAL DIODE 33V;IR=0.05U |
9,400 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 33V (Max) | 36V | 60V | 2A (8/20µs) | 120W | No | - | 6pF @ 1MHz | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
SMBJE22ATVS DIODE 22VWM 35.5VC SMB |
8,985 |
|
Datasheet |
DO-214AA, SMB | SMBJE | Tape & Reel (TR) | Active | Zener | 1 | - | 22V | 24.4V | 35.5V | 16.9A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
GSOT36C-G3-18TVS DIODE 36VWM 71VC SOT23 |
8,820 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT36C-G3-08TVS DIODE 36VWM 71VC SOT23 |
8,605 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
SMF6.5A_R1_00001SOD-123FL, TVS |
8,350 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 6.5V | 7.2V | 11.2V | 17.9A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF51A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
8,350 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 51V | 56.7V | 82.4V | 2.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF18A_R1_00001SOD-123FL, TVS |
8,246 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 29.2V | 6.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
GSOT03C-G3-18TVS DIODE 3.3VWM 12.3VC SOT23 |
8,100 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 2 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | General Purpose | 420pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
CM1293A-04MRTVS DIODE 3.3VWM 9.9VC 10MSOP |
7,137 |
|
Datasheet |
10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 3.3V | - | 9.9V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|

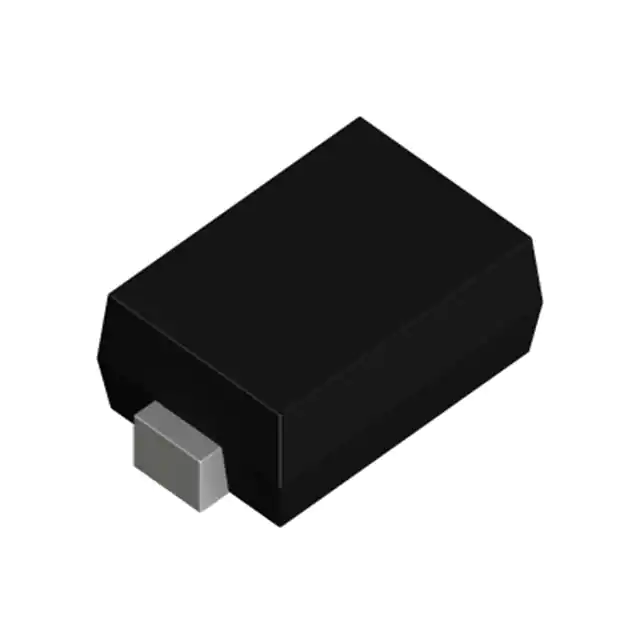

CDZCFHT2RA6.8BTVS DIODE 3.5VWM VMN2 |
7,893 |
|
- |
2-SMD, Flat Leads | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 3.5V | 6.65V | - | - | - | No | - | 3pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | VMN2 (SOD-923) |
|
|
SMBJE170ATVS DIODE 170VWM 275VC SMB |
6,000 |
|
Datasheet |
DO-214AA, SMB | SMBJE | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 2.2A | 600W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
P6SMB51CATVS, BI-DIR, 600W, 51V, DO-214AA |
6,000 |
|
Datasheet |
DO-214AA, SMB | P6SMBx | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
P6SMB100CATVS, BI-DIR, 600W, 100V, DO-214A |
6,000 |
|
Datasheet |
DO-214AA, SMB | P6SMBx | Tape & Reel (TR) | Active | Zener | - | 1 | 85.5V | 95V | 137V | 4.4A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
|
SMF60A_R1_00001SOD-123FL, TVS |
5,960 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 1.8A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
