TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMB15F31ATVS DIODE 31VWM 65VC SMBFLAT |
4,430 |
|
- |
DO-221AA, SMB Flat Leads | SMB15F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 31V (Max) | 34.2V | 65V | 153A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMBflat |
|
|
SMB15F18ATVS DIODE 18VWM 39.3VC SMBFLAT |
3,681 |
|
- |
DO-221AA, SMB Flat Leads | SMB15F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 18V (Max) | 20V | 39.3V | 254A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMBflat |
|
|
SMB15F26ATVS DIODE 26VWM 53.5VC SMBFLAT |
2,814 |
|
- |
DO-221AA, SMB Flat Leads | SMB15F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 26V (Max) | 28.9V | 53.5V | 187A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMBflat |
|
|
SMB15F28ATVS DIODE 28VWM 59VC SMBFLAT |
1,750 |
|
- |
DO-221AA, SMB Flat Leads | SMB15F | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 28V (Max) | 31.1V | 59V | 169A (8/20µs) | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | SMBflat |
|
SMF40ATVS DIODE 40VWM 64.5VC |
3,100 |
|
Datasheet |
SOD-123FL | SMF | Strip | Active | Zener | 1 | - | 40V | 44.4V | 64.5V | 3.1A | 200W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P6SMB24AT3GTVS DIODE 20.5V 33.2V 425TEPBGA |
212,500 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 20.5V | 22.8V | 33.2V | 18A | 600W | No | General Purpose | 775pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB64AT3GTVS DIODE 64VWM 103VC SMB |
50,500 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 64V | 71.1V | 103V | 5.8A | 600W | No | General Purpose | 280pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
1SMB20AT3TVS DIODE 20VWM 32.4VC SMB |
6,351 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 20V | 22.2V | 32.4V | 18.5A | 600W | No | General Purpose | 790pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|

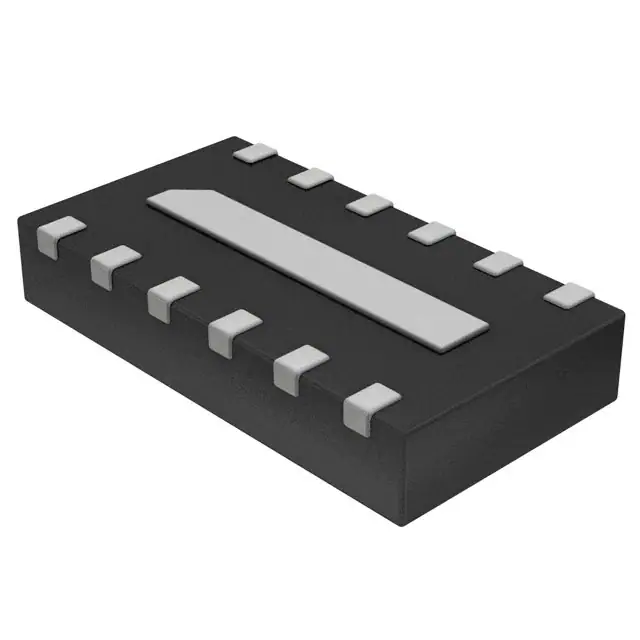

CM1263-06DETVS DIODE 3.3VWM 9.96VC 12UDFN |
8,884 |
|
Datasheet |
12-UFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 6 | - | 3.3V | 6V | 9.96V (Typ) | 1A (8/20µs) | - | Yes | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UDFN (2.5x1.35) |
|
|
1SMB60AT3GTVS DIODE 60VWM 96.8VC SMB |
19,588 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 60V | 66.7V | 96.8V | 6.2A | 600W | No | General Purpose | 300pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB43AT3GTVS DIODE 43VWM 69.4VC SMB |
12,500 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 43V | 47.8V | 69.4V | 8.6A | 600W | No | General Purpose | 400pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
SMBJ12AONT3TVS DIODE 12VWM 19.9VC SMB |
7,366 |
|
Datasheet |
DO-214AA, SMB | SMBJ | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 13.2V | 19.9V | 30.2A (8/20µs) | 600W | No | General Purpose | - | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
VCAN26B2-03G-E3-08ESD PROTECTION DIODE SOT323 |
12,000 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Obsolete | Zener | - | 2 | 26.5V (Max) | 28V | 50V | 2A (8/20µs) | 100W | No | CAN | 4pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
;;2.jpg)
|
SMCJ58ASMCJ58 - TRANS VOLTAGE SUPPRESSO |
10,681 |
|
Datasheet |
DO-214AB, SMC | SMCJ | Bulk | Obsolete | Zener | 1 | - | 58V | 64.4V | 93.6V | 16A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-214AB (SMC) |
|
|
P6SMB47AT3GTVS DIODE 40.2VWM 64.8VC SMB |
10,649 |
|
Datasheet |
DO-214AA, SMB | P6SMB | Bulk | Active | Zener | 1 | - | 40.2V | 44.7V | 64.8V | 9.3A | 600W | No | General Purpose | 425pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
|
1SMB75AT3GTVS DIODE 75VWM 121VC SMB |
10,000 |
|
Datasheet |
DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 75V | 83.3V | 121V | 4.9A | 600W | No | General Purpose | 245pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMAJ40CATVS DIODE 40VWM 64.5VC SMA |
8,460 |
|
Datasheet |
DO-214AC, SMA | SMAJ | Tape & Reel (TR) | Active | Zener | - | 1 | 40V | 44.4V | 64.5V | 6.2A | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
P6KE27CTVS, BI-DIR, 600W, 27V, DO-204AC |
7,970 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Cut Tape (CT) | Active | Zener | - | 1 | 21.8V | 24.3V | 39.1V | 15.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
P6KE51CATVS, BI-DIR, 600W, 43.6V, DO-204 |
7,950 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 43.6V | 48.5V | 70.1V | 8.6A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
;;2.jpg)
|
P6KE43CATVS, BI-DIR, 600W, 36.8V, DO-204 |
7,890 |
|
Datasheet |
DO-204AC, DO-15, Axial | P6KE | Tape & Reel (TR) | Active | Zener | - | 1 | 36.8V | 40.9V | 59.3V | 10.1A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
