TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ5A23-01FTVS DEVICE 1-CHANNEL 3.3V |
5,000 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|
RSB6.8SMT2NTVS DIODE 3.5VWM EMD2 |
4,658 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.5V | 5.78V | - | - | 10W | No | General Purpose | 30pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | EMD2 |
|
1.5KE180ARL4TRANS VOLTAGE SUPPRESSOR DIODE |
4,500 |
|
Datasheet |
- | * | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AZ5B0S-01FTVS DEVICE 1-CHANNEL 2V |
2,950 |
|
Datasheet |
0201 (0603 Metric) | - | Strip | Active | Zener | - | 1 | 2V (Max) | 5.5V | - | - | - | No | Ethernet | - | -55°C ~ 125°C (TC) | - | - | Surface Mount | DFN0603P2Y |
|
SMF11AT1TVS DIODE 11VWM 18.2VC SOD123FL |
2,573 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 11V | 12.2V | 18.2V | 11A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF6.0AT1TVS DIODE 6VWM 10.3VC SOD123FL |
3,530 |
|
Datasheet |
SOD-123F | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
AZ5A83-01BTVS DEVICE 1-CHANNEL 3.3V |
2,650 |
|
Datasheet |
2-XFBGA, CSPBGA | - | Strip | Active | Zener | - | 1 | 3.3V (Max) | 4V | - | - | - | No | General | - | -55°C ~ 85°C (TC) | - | - | Surface Mount | CSP0603P2Y |
|
1V5KE22ATVS DIODE 18.8VWM 30.6VC DO201AD |
2,000 |
|
Datasheet |
DO-201AD, Axial | - | Bulk | Active | Zener | 1 | - | 18.8V | 20.9V | 30.6V | 49A | 1500W (1.5kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-201AD |
|
SMBJ48ATVS DIODE 48VWM 77.4VC |
3,100 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | 1 | - | 48V | 53.3V | 77.4V | 7.75A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
P6SMBJ33CA-AQTVS SMB 33V 600W BIDIR AECQ101 |
15,000 |
|
Datasheet |
DO-214AA, SMB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.3A | 600W | No | - | - | -50°C ~ 150°C (TJ) | Automotive | - | Surface Mount | DO-214AA (SMB) |
.jpg)
|

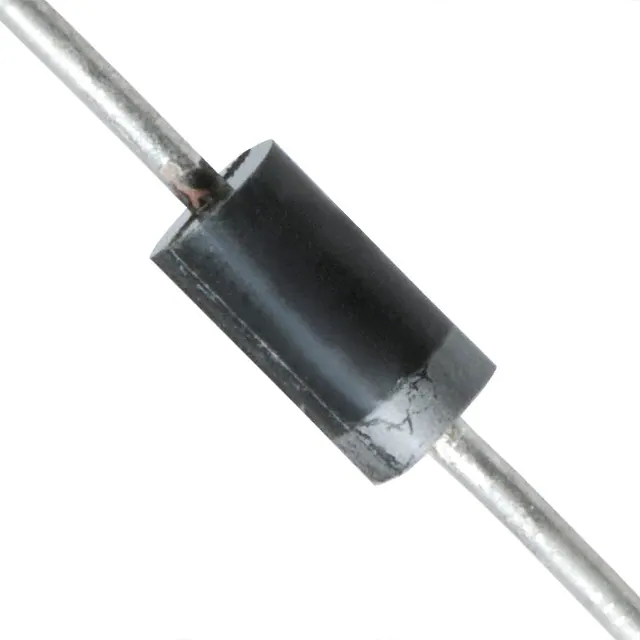

P4KE300A-TPTVS DIODE 256VWM 414VC DO41 |
35,000 |
|
Datasheet |
DO-204AL, DO-41, Axial | - | Tape & Reel (TR) | Active | Zener | 1 | - | 256V | 285V | 414V | 1A | 400W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | DO-41 |
|
SA15ARLGTVS DIODE 15VWM 24.4VC TO252-3 |
235,000 |
|
Datasheet |
TO-252-3, DPAK (2 Leads + Tab), SC-63 | - | Bulk | Active | Zener | 1 | - | 15V | 16.7V | 24.4V | 20.6A | 500W | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
ESD7004AMUTAGTVS DIODE 5VWM 10VC 10UDFN |
7,933 |
|
- |
10-UFDFN | * | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 10-UDFN (2.5x1) |
|
SD05-7TVS DIODE 5VWM 14.5VC SOD323 |
183,377 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 5V | 6.2V | 14.5V | 24A (8/20µs) | 350W | No | - | 350pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
SA5.0ARLGTVS DIODE 5VWM 9.2VC AXIAL |
143,766 |
|
Datasheet |
DO-204AC, DO-15, Axial | MiniMosorb™ | Bulk | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 54.3A | 500W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
|
|
1.5KE43AGTVS DIODE 36.8VWM 59.3VC DO201 |
25,670 |
|
Datasheet |
DO-201AA, DO-27, Axial | - | Bulk | Active | Zener | 1 | - | 36.8V (Max) | 40.9V | 59.3V | 25.3A | 1500W (1.5kW) | No | Telecom | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
NUP5150MUTBGTVS DIODE 5VWM 6UDFN |
3,075 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 5 | - | 5V (Max) | 6.2V | - | - | - | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
P4SMA440ATVS, UNI-DIR, 400W, 376V, DO-214 |
15,000 |
|
Datasheet |
DO-214AC, SMA | P4SMAx | Tape & Reel (TR) | Active | Zener | 1 | - | 376V | 418V | 602V | 700mA | 400W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
1.5KE36AGTVS DIODE 30.8VWM 49.9VC AXIAL |
14,158 |
|
Datasheet |
DO-201AD, Axial | Mosorb™ | Bulk | Active | Zener | 1 | - | 30.8V | 34.2V | 49.9V | 30A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | Axial |
|
|
GSMA6J33CATVS, 600W, 33V, DO-214AC(SMA) |
14,063 |
|
Datasheet |
DO-214AC, SMA | GSMA6Jx | Tape & Reel (TR) | Active | Zener | - | 1 | 33V | 36.7V | 53.3V | 11.3A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
