TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0U4BF,115TVS DIODE 5VWM 6XSON |
1,251,606 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ESD8118MUTAGESD8118 - ESD Protection Array, |
849,000 |
|
Datasheet |
10-UFDFN | - | Bulk | Obsolete | Zener | 8 | - | 3.3V (Max) | 4V | 11.4V (Typ) | 16A | - | No | HDMI | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 10-UDFN (3.2x1.2) |
|
ESD114U102ELSE6327XTSA1TVS DIODE 5.3VWM 28VC TSSLP-2-3 |
2,201 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 5.3V (Max) | 6V | 28V (Typ) | 3A (8/20µs) | - | No | HDMI | 0.4pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSSLP-2-3 |
|
NSQA6V8AW5T2TVS DIODE 5VWM 13VC SC88A |
7,202 |
|
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 5V | 6.4V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 12pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
ESD5382MUT5GTVS DIODE 3VWM 26VC 2X3DFN |
3,409 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3V (Max) | 14.2V | 26V | 1A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 2-X3DFN (0.6x0.3) (0201) |
|

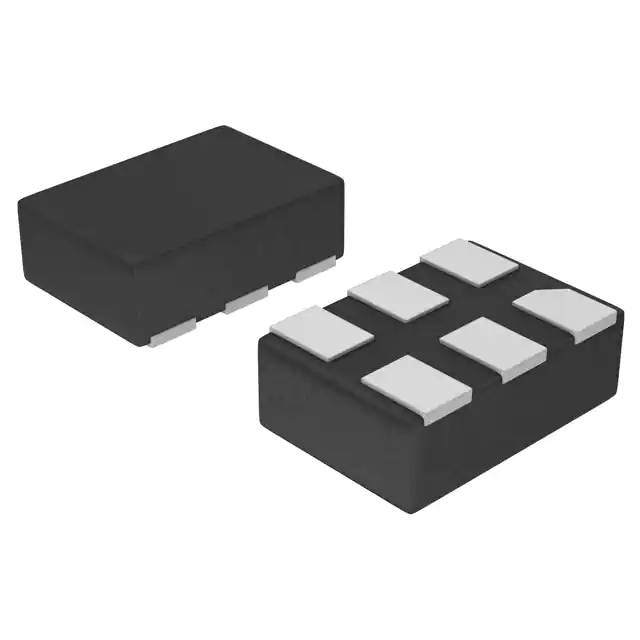

CM1248-04QGTVS DIODE 6.1VWM 6.8VC 6UDFN |
9,441 |
|
Datasheet |
6-UFDFN | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 6.1V (Min) | - | 6.8V (Typ) | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UDFN (1.25x1) |
|
NZQA5V6XV5T1TVS DIODE 3VWM 10.5VC SOT553 |
2,976 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V | 5.32V | 10.5V | 10A (8/20µs) | 100W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
NZQA6V8AXV5T1TVS DIODE 4.3VWM 13VC SOT553 |
8,559 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 4.3V | 6.47V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
1SMA54AT3GTVS DIODE 54VWM 87.1VC 6TDFN |
117,000 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 54V | 60V | 87.1V | 4.6A | 400W | No | General Purpose | 240pF @ 1MHz | -65°C ~ 150°C (TJ) | - | - | Surface Mount | SMA |
|
|
NZQA5V6AXV5T1TVS DIODE 3VWM 13VC SOT553 |
7,866 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 3V | 5.3V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 13pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
SA18CARLTRANS VOLTAGE SUPPRESSOR DIODE |
41,390 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NZQA6V8XV5T2TVS DIODE 4.3VWM 12.5VC SOT553 |
3,655 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 4.3V | 6.46V | 12.5V | 8A (8/20µs) | 100W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
IP4387CX4/P,315TVS DIODE 8VWM 13VC 4WLCSP |
36,000 |
|
Datasheet |
4-WFBGA, WLCSP | - | Bulk | Obsolete | Zener | 1 | - | 8V (Max) | 10V | 13V | 33A (8/20µs) | - | No | General Purpose | 290pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 4-WLCSP (0.76x0.76) |
|
|
NSB13ANT3HSMB TVS 600W 13V |
25,000 |
|
- |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
S1ZP6SMB36AT3ZEN SMB TVS 600W SPCL |
20,000 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
CM1240-F4SETRANS VOLTAGE SUPPRESSOR DIODE |
19,534 |
|
Datasheet |
- | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SM12T1TVS DIODE 12VWM 19VC SOT23-3 |
8,678 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V | 13.3V | 19V | 12A (8/20µs) | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
SA170ATVS DIODE 170VWM 275VC DO15 |
6,425 |
|
Datasheet |
DO-204AC, DO-15, Axial | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 170V | 189V | 275V | 1.8A | 500W | No | General Purpose | - | - | - | - | Through Hole | DO-15 |
|
|
NZQA6V8AXV5T2TVS DIODE 4.3VWM 13VC SOT553 |
4,092 |
|
Datasheet |
SOT-553 | - | Tape & Reel (TR) | Obsolete | Zener | 4 | - | 4.3V | 6.47V | 13V | 1.6A (8/20µs) | 20W | No | General Purpose | 12pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-553 |
|
|
SM05T1TVS DIODE 5VWM 9.8VC SOT23-3 |
7,186 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 6.2V | 9.8V | 17A (8/20µs) | 300W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
