TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSOT08-HE3-08TVS DIODE 8VWM 19.2VC SOT23 |
4,697 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | - | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT12-HE3-08TVS DIODE 12VWM 26VC SOT23 |
9,244 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | - | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT15-HE3-08TVS DIODE 15VWM 28.8VC SOT23 |
6,127 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | - | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
|
GSOT24-HE3-08TVS DIODE 24VWM 47VC SOT23 |
8,905 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | - | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
SZESD5Z3.3T5GTVS DIODE 3.3VWM 14.1VC SOD523 |
8,143 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | - | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-523 |
 SC2.jpg)
|

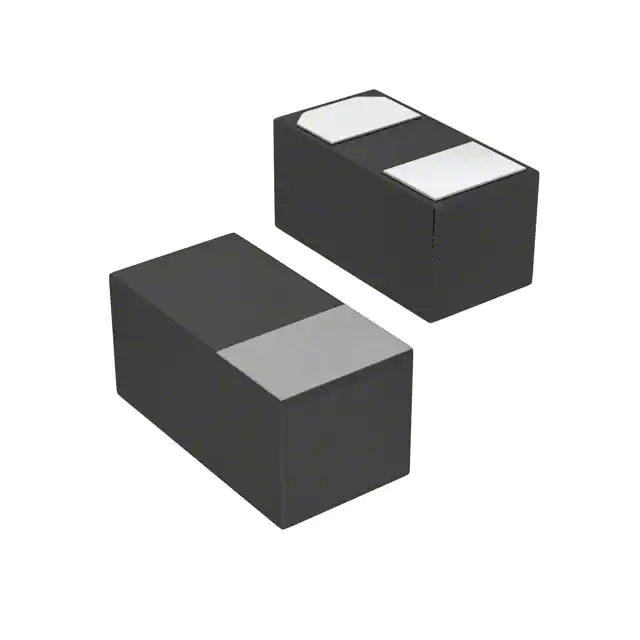

DF2S6.8SC(TPL3)TVS DIODE 5VWM SC2 |
4,002 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5V | 6.4V | - | - | - | No | General Purpose | 15pF @ 1MHz | - | - | - | Surface Mount | SC2 |
|
ESD3B5V0WS-AQTVS DIODE 5VWM 14.5VC SOD-323F |
9,579 |
|
Datasheet |
SC-90, SOD-323F | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 14.5V | 24A (8/20µs) | 350W | No | - | 200pF @ 1MHz | -50°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323F |
|
AOZ8S303BLS-05TVS DIODE 5VWM 6.5VC 2-WLCSP |
9,893 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V (Max) | 6V | 6.5V (Typ) | 9A (8/20µs) | 70W | No | USB | 0.2pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 2-WLCSP (0.6x0.3) |
|
|
GSOT03-E3-18TVS DIODE 3.3VWM 12.3VC SOT23 |
2,725 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | General Purpose | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT05-E3-18TVS DIODE 5VWM 16VC SOT23 |
5,949 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 5V (Max) | 6V | 16V | 30A (8/20µs) | 480W | No | General Purpose | 260pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08-E3-18TVS DIODE 8VWM 19.2VC SOT23 |
3,572 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12-E3-18TVS DIODE 12VWM 26VC SOT23 |
6,011 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT15-E3-18TVS DIODE 15VWM 28.8VC SOT23 |
9,341 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 15V (Max) | 16.5V | 28.8V | 8A (8/20µs) | 230W | No | General Purpose | 90pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT24-E3-18TVS DIODE 24VWM 47VC SOT23 |
2,673 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | General Purpose | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT36-E3-18TVS DIODE 36VWM 71VC SOT23 |
7,340 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
VCAN16A2-03SHE3A18ESD PROTECTION DIODE SOT23 |
2,681 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 16V (Max) | 17.1V | 28V | 5A (8/20µs) | 145W | No | CAN | 16.7pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
|
CPDH5V0U-HFTVS DIODE 5VWM 12.5VC SOD523 |
5,388 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12.5V | 16A (8/20µs) | 200W | No | General Purpose | 90pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
NUP1301U-QXNUP1301U-Q/SOT323/SC-70 |
8,895 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 80V (Max) | 100V | 20V | 11A (8/20µs) | 220W | No | Telecom | 0.6pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|

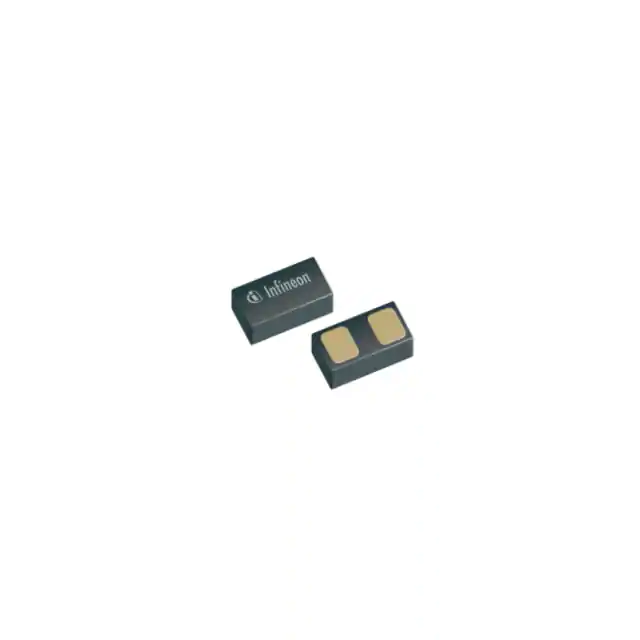

ESD113B102ELE6327XTMA1TVS DIODE 3.6VWM 8VC TSLP-2-20 |
2,311 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 3.6V (Max) | 4V | 8V | 3A (8/20µs) | 36W | No | HDMI | 0.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | PG-TSLP-2-20 |
|
|
GSOT03-HG3-08TVS DIODE 3.3VWM 12.3VC SOT23 |
6,870 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | - | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-23-3 |
