TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0X1ULD-QYLPESD5V0X1ULD-Q/SOD882D/XSON2 |
2,182 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.8V | 8V (Typ) | 1.5A (8/20µs) | - | No | Ethernet, HDMI, Telecom, USB | 0.95pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
|
PESD3V3T1BL-QYLPESD3V3T1BL-Q/SOD882/SOD2 |
9,873 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 11V | 10A (8/20µs) | - | No | - | 20pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESD5V0D5-T3PTVS DIODES |
8,818 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6.2V | 18.6V | 9.4A (8/20µs) | 174W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD3V3D5-T3PTVS DIODES |
4,471 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 3.3V (Max) | 5V | 13V | 16A (8/20µs) | 220W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESDSBULC3V3AE2-TPTVS DIODES |
9,903 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 9.6V | 10A (8/20µs) | 96W | No | General Purpose | 0.45pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|

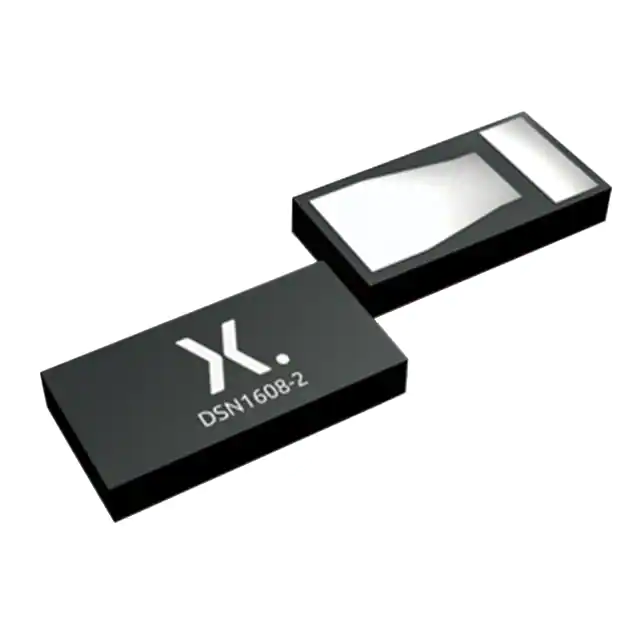

PTVS22VZ1USKYLTVS DIODE 22VWM 39.5VC |
2,102 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Zener | 1 | - | 22V (Max) | 24.4V | 39.5V | 5.3A | 200W | No | General Purpose | 247pF @ 1MHz | -40°C ~ 125°C (TA) | - | - | - | - |
|
PESD3V3T1BLDYLTVS DIODE 3.3VWM 11VC DFN1006D-2 |
2,801 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.7V | 11V | 10A (8/20µs) | - | No | General Purpose | 20pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
SMF4L20ADIODE TVS 20VWM 400W UNI SMF |
5,701 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 20V | 22.2V | 32.4V | 12.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF4L30ADIODE TVS 30VWM 400W UNI SMF |
2,104 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 30V | 33.3V | 48.4V | 8.3A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
|
SMF4L16ADIODE TVS 16VWM 400W UNI SMF |
7,415 |
|
Datasheet |
SOD-123F | SMF4L | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 16V | 17.8V | 26V | 15.4A | 400W | No | Telecom | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
VESD01-02V-GS08TVS DIODE 1VWM 9VC SOD523 |
4,765 |
|
- |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 1V | 1.5V | 9V | 7A (8/20µs) | - | No | General Purpose | 180pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
VESD12-02V-GS08TVS DIODE 12VWM 25VC SOD523 |
7,582 |
|
- |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 12V | 14V | 25V | 2A (8/20µs) | - | No | General Purpose | 30pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-523 |
|
SMF7.0A_R1_00001SURFACE MOUNT TRANSIENT VOLTAGE |
5,613 |
|
- |
SOD-123F | - | Tape & Reel (TR) | Not For New Designs | Zener | 1 | - | 7V | 7.8V | 12V | 16.7A | 200W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123FL |
|
GSOT03-G3-08TVS DIODE 3.3VWM 12.3VC SOT23 |
3,320 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 3.3V (Max) | 4V | 12.3V | 30A (8/20µs) | 369W | No | General Purpose | 420pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT04-G3-08TVS DIODE 4VWM 14.3VC SOT23 |
5,763 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 4V (Max) | 5V | 14.3V | 30A (8/20µs) | 429W | No | General Purpose | 310pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT08-G3-08TVS DIODE 8VWM 19.2VC SOT23 |
8,857 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 8V (Max) | 9V | 19.2V | 18A (8/20µs) | 345W | No | General Purpose | 160pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT12-G3-08TVS DIODE 12VWM 26VC SOT23 |
8,993 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 12V (Max) | 13.5V | 26V | 12A (8/20µs) | 312W | No | General Purpose | 115pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT24-G3-08TVS DIODE 24VWM 47VC SOT23 |
8,395 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 24V (Max) | 27V | 47V | 5A (8/20µs) | 235W | No | General Purpose | 65pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
GSOT36-G3-08TVS DIODE 36VWM 71VC SOT23 |
4,997 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Last Time Buy | Zener | 1 | - | 36V (Max) | 39V | 71V | 3.5A (8/20µs) | 248W | No | General Purpose | 52pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
D24V0X1B2LPQ-7BDATALINE PROTECTION PP X1-DFN100 |
5,801 |
|
- |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | - | - | - | No | - | - | - | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
