TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMF8.5AH200W, 10V, 5%, UNIDIRECTIONAL, T |
9,277 |
|
Datasheet |
SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 13.9A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
SMF6.0AH200W, 7V, 5%, UNIDIRECTIONAL, TV |
7,112 |
|
Datasheet |
SOD-123W | SMF | Tape & Reel (TR) | Active | Zener | 1 | - | 6V | 6.67V | 10.3V | 19.4A | 200W | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-123W |
|
|
IP4302CX2/LF,315TVS DIODE 2CSP |
5,732 |
|
Datasheet |
2-XFBGA, WLCSP | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | 14V | - | - | - | No | General Purpose | 10pF @ 1MHz | -35°C ~ 85°C (TA) | - | - | Surface Mount | 2-CSP |
|
|
D2V5H1BS2LP4-7BSurge Protection PP X2-DFN1006-2 |
5,323 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 2.5V (Max) | 2.6V | 7V (Typ) | 85A (8/20µs) | 595W | No | General Purpose | 150pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DFN1006-2 |
|
|
D15V0M2U3SLP-7BLINEAR IC |
7,418 |
|
- |
SC-101, SOT-883 | - | Tape & Reel (TR) | Active | Zener | 2 | - | 15V (Max) | 15.5V | 31V (Typ) | 12A (8/20µs) | - | No | General Purpose | 60pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X1-DFN1006-3 (Type SA) |
|
P4SMAJ160ATVS DIODE 160VWM 259VC DO-214AC |
3,123 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 160V | 178V | 259V | 1.5A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ8.0ATVS DIODE 8VWM 13.6VC DO-214AC |
7,360 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 8V | 8.9V | 13.6V | 29.4A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ90ATVS DIODE 90VWM 146VC DO-214AC |
9,433 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 90V | 100V | 146V | 2.7A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ7.0ATVS DIODE 7VWM 12VC DO-214AC |
7,086 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 7V | 7.8V | 12V | 33.3A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ150ATVS DIODE 150VWM 243VC DO-214AC |
5,132 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 150V | 167V | 243V | 1.6A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ120ATVS DIODE 120VWM 193VC DO-214AC |
2,401 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 120V | 133V | 193V | 2.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
P4SMAJ110ATVS DIODE 110VWM 177VC DO-214AC |
2,612 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 110V | 122V | 177V | 2.3A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
D5V0X1BA2LPQ-7BLOW CAPACITANCE TVS X1-DFN1006-2 |
3,855 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5.5V (Max) | 7V | 16V | 4A (8/20µs) | - | No | HDMI, USB | 0.48pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | X1-DFN1006-2 |
|
|
D24V0S1U2LP1610-7SURGE PROTECTION PP U-DFN1610-2 |
9,439 |
|
Datasheet |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V | 26V | 42V | 31A | - | No | General Purpose | 210pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|

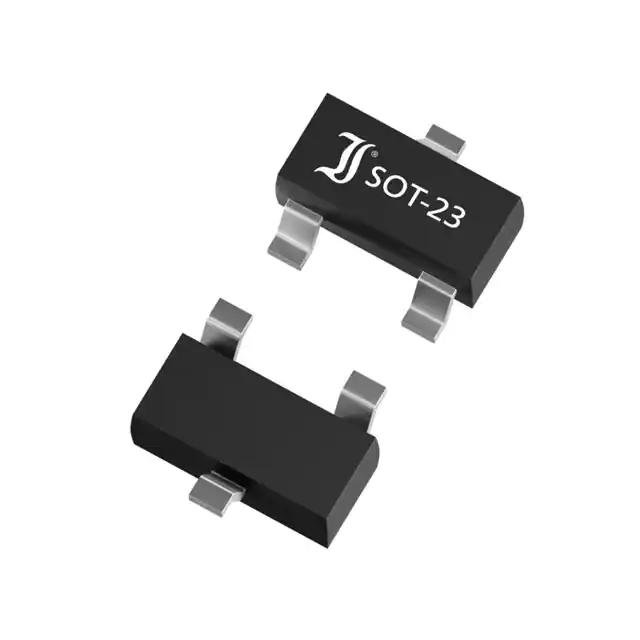

MMBZ27CATVS DIODE 22VWM 40VC SOT-23-3 |
9,633 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 22V | 25.65V | 40V | 1A | 40W | No | General Purpose | 50pF @ 1MHz | -50°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
|
|
UCD32C24L01TVS ESD SOD-323 24V 56V |
9,847 |
|
Datasheet |
SC-76, SOD-323 | UCD32CXXL01 | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.7V | 56V | 3A (8/20µs) | 220W | No | DVI, Ethernet, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
UCD32C15L01TVS ESD SOD-323 15V 35V |
2,335 |
|
Datasheet |
SC-76, SOD-323 | UCD32CXXL01 | Tape & Reel (TR) | Active | Zener | - | 2 | 15V (Max) | 16.7V | 35V | 5A (8/20µs) | 220W | No | DVI, Ethernet, USB | 1pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
P4SMAJ7.0TVS DIODE 7VWM 13.3VC DO-214AC |
4,135 |
|
Datasheet |
DO-214AC, SMA | - | Bulk | Active | Zener | 1 | - | 7V | 7.8V | 13.3V | 30.1A | 400W | No | General Purpose | - | -50°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
ESD5Z3.3T1TVS DIODE 3.3VWM 14.1VC SOD523 |
3,669 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 3.3V (Max) | 5V | 14.1V | 11.2A (8/20µs) | 158W | No | General Purpose | 105pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
ESD5Z6.0T1TVS DIODE 6VWM 20.5VC SOD523 |
3,943 |
|
Datasheet |
SC-79, SOD-523 | - | Tape & Reel (TR) | Obsolete | Zener | 1 | - | 6V (Max) | 6.8V | 20.5V | 8.8A (8/20µs) | 181W | No | General Purpose | 70pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
