TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD18VF1BLZPESD18VF1BL/SOD882/SOD2 |
5,436 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 19V | 17V | 1A (8/20µs) | - | No | - | 0.35pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
PESD24VF1BLZPESD24VF1BL/SOD882/SOD2 |
8,796 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V (Max) | 24.5V | 17V | 1A (8/20µs) | - | No | - | 0.3pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESDAHD24BE2XESDAHD24BE2/SOT23-3L/REEL 7" Q1/ |
9,671 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxBE2 | Tape & Reel (TR) | Active | Zener | 2 | 1 | 24V (Max) | 26V | 48V | 8A (8/20µs) | 350W | No | General Purpose | 30pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD05BE2XESDAHD05BE2/SOT23-3L/REEL 7" Q1/ |
3,968 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxBE2 | Tape & Reel (TR) | Active | Zener | 2 | 1 | 5V (Max) | 6.5V | 22V | 22A (8/20µs) | 340W | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD12BE2XESDAHD12BE2/SOT23-3L/REEL 7" Q1/ |
4,829 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxBE2 | Tape & Reel (TR) | Active | Zener | 2 | 1 | 12V (Max) | 13.3V | 30V | 16A (8/20µs) | 350W | No | General Purpose | 70pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
DESD3V3XA1BCSF-7DATALINE PROTECTION PP X2-DSN060 |
2,240 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5V | 7V (Typ) | 5.5A (8/20µs) | 27.5W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | X2-DSN0603-2 |
|
D18V0S1U2LP1610-7SURGE PROTECTION PP U-DFN1610-2 |
2,712 |
|
Datasheet |
0603 (1610 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V | 20V | 33V | 45A | - | No | General Purpose | 267pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | U-DFN1610-2 (Type B) |
|
|
PESD5V0X1UALD-QYLPESD5V0X1UALD-Q/SOD882D/DFN100 |
4,842 |
|
Datasheet |
2-XDFN | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5.5V (Max) | 5.8V | 9V | 2A (8/20µs) | - | No | Ethernet, HDMI, Telecom, USB | 1.55pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | DFN1006D-2 |
|
|
PESD24VF1BBLYLPESD24VF1BBL/SOD882/DFN1006-2 |
6,073 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PESD18VF1BBLYLPESD18VF1BBL/SOD882/DFN1006-2 |
5,840 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

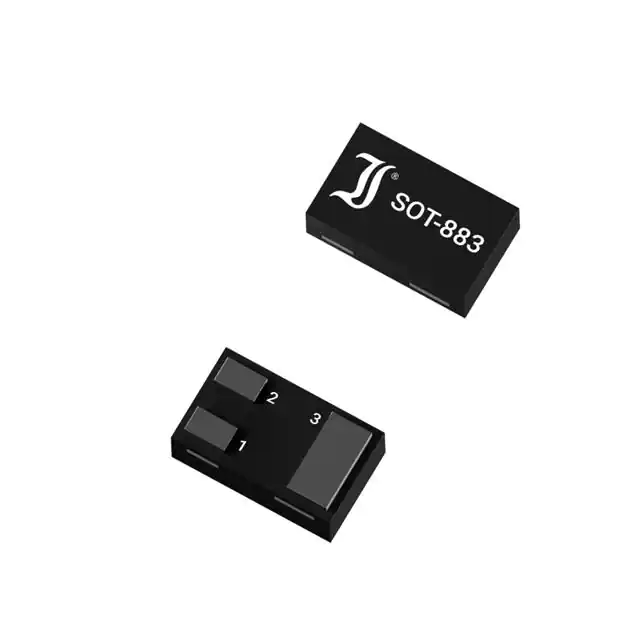

DI5315-02FTVS DIODE 5VWM 21VC DFN1006-3 |
8,983 |
|
Datasheet |
SC-101, SOT-883 | - | Bulk | Active | Zener | 2 | - | 5V | 6.5V | 21V | 3A (8/20µs) | 60W | Yes | HDMI, USB | 0.35pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
GBLC24CD3B-TPBRIDGE RECTIFIERS |
9,396 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 24V (Max) | 26.1V | 58V | 6A (8/20µs) | 350W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
GBLC03CD3B-TPBRIDGE RECTIFIERS |
2,032 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 3.3V (Max) | 4.2V | 20V | 21A (8/20µs) | 350W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
GBLC05CD3B-TPBRIDGE RECTIFIERS |
3,972 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 6.1V | 22V | 18A (8/20µs) | 350W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
GBLC08CD3B-TPBRIDGE RECTIFIERS |
3,764 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 8V (Max) | 9.4V | 26V | 21A (8/20µs) | 350W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SED52C05L01TVS ESD SOD-523 5V 18V |
4,906 |
|
- |
SC-79, SOD-523 | SED52C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.2V | 18V | 30A (8/20µs) | 500W | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
LXES15AAA1-017TVS DIODE 0402 |
3,237 |
|
Datasheet |
0402 (1005 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | - | - | - | - | - | No | General Purpose | 0.05pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 0402 |
|
|
VLIN26A1-03GHE3-08TVS DIODE 26.5VWM 50VC SOT323 |
7,470 |
|
Datasheet |
SC-70, SOT-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 26.5V (Max) | 28V | 50V | 3A (8/20µs) | 150W | No | - | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOT-323 |
|
|
SD12CQ-7Surge Protection PP SOD323 T&R 3 |
9,636 |
|
Datasheet |
SC-76, SOD-323 | - | Bulk | Active | Zener | - | 1 | 12V (Max) | 13V | 24V | 15A (8/20µs) | 360W | No | - | 52.6pF @ 1MHz | -65°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SOD-323 |
|
|
ESDB15CTVS DIODE 15VWM 44VC SOT-23-3 |
7,771 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Bulk | Active | Zener | - | 2 | 15V | 17.1V | 44V | 5A (8/20µs) | 200W | No | CAN | 16pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3 (TO-236) |
