TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

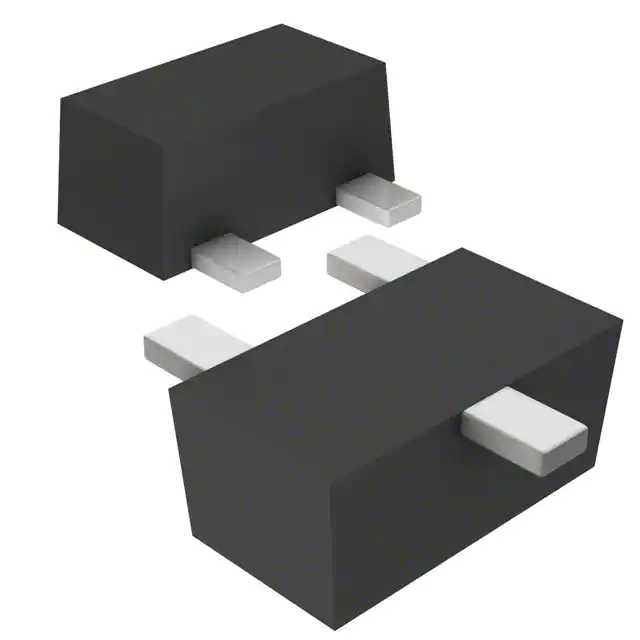

DE3S062D0LTVS DIODE 4VWM SSMINI3-F3-B |
9,858 |
|
- |
SC-89, SOT-490 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 2 | - | 4V | 5.89V | - | - | - | No | General Purpose | 55pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini3-F3-B |
|
ESDAHD05UE2XESDAHD05UE2/SOT23-3L/REEL 7" Q1/ |
8,025 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 5V (Max) | 6V | 19V | 16A (8/20µs) | 300W | No | General Purpose | 150pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD03UE2XESDAHD03UE2/SOT23-3L/REEL 7" Q1/ |
8,549 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2 | Tape & Reel (TR) | Active | Zener | 2 | 1 | 3V (Max) | 4V | 15V | 20A (8/20µs) | 300W | No | General Purpose | 195pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD24UE2XESDAHD24UE2/SOT23-3L/REEL 7" Q1/ |
8,671 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 24V (Max) | 26V | 52V | 7A (8/20µs) | 300W | No | General Purpose | 60pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
|
ESDAHD12UE2XESDAHD12UE2/SOT23-3L/REEL 7" Q1/ |
7,707 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | ESDAHDxxUE2X | Tape & Reel (TR) | Active | Zener | 2 | 1 | 12V (Max) | 13.3V | 32V | 11A (8/20µs) | 300W | No | General Purpose | 120pF @ 1MHz (Max) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-3L |
|
PESD3V3L1BAZTVS DIODE 3.3VWM 26VC SOD323 |
2,523 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 5.8V | 26V | 18A (8/20µs) | 500W | No | General Purpose | 101pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
PESD5V0L1BAZTVS DIODE 5VWM 33VC SOD323 |
3,496 |
|
Datasheet |
SC-76, SOD-323 | - | Tape & Reel (TR) | Not For New Designs | Zener | - | 1 | 5V (Max) | 7V | 33V | 15A (8/20µs) | 500W | No | General Purpose | 75pF @ 1MHz | 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | SOD-323 |
|
S23LC12TVS DIODE 12VWM 19VC SOT23 |
7,910 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | 19V | 1A | 300W | No | General Purpose | 3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23-3 |
|
|
ESDL5V0T2B-TPTVS DIODES |
3,063 |
|
Datasheet |
TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Active | Zener | - | 2 | 5V (Max) | 5.6V | 14V | 2A (8/20µs) | 28W | No | General Purpose | 3.2pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
CSP3V3L-TPInterface |
5,585 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | 1 | - | 3.3V (Max) | 3.6V | 10.5V | 65A (8/20µs) | 600W | No | General Purpose | 120pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
|
ESDSLC18VLB-TPInterface |
8,737 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 18V (Max) | 19V | 40V | 2A (8/20µs) | 80W | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDSLC5V0LTB-TPInterface |
8,931 |
|
Datasheet |
SC-101, SOT-883 | - | Bulk | Active | Zener | 2 | - | 5V (Max) | 6.4V | 15V | 5A (8/20µs) | - | No | General Purpose | 0.3pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3 |
|
|
ESDH3V3AE2-TPInterface |
8,443 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 8.5V | 20A (8/20µs) | 170W | No | General Purpose | 35pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDLC12VAE2-TPInterface |
5,424 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 12V (Max) | 13.3V | 20V | 5A (8/20µs) | 100W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDSBLC3V3LB-TPInterface |
7,791 |
|
Datasheet |
0402 (1006 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 9A (8/20µs) | 90W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
ESDLC18VAE2-TPESD PROTECTION DEVICES,0201-A |
4,684 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 19.5V | 44V | 2.5A (8/20µs) | 110W | No | General Purpose | 8pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESD18VLB-TPESD PROTECTION DEVICES,DFN1006-2 |
6,048 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 18V (Max) | 20V | 42V | 7A (8/20µs) | 300W | No | General Purpose | 20pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
|
CSPHSLC3V3LB-TPESD,3.3V,CSP1006-2 |
6,190 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4V | 20V | 20A (8/20µs) | 350W | No | General Purpose | 0.6pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | CSP1006-2 |
|
ACPDQC5V0A-HFAUTOMOTIVE DIODE ESD 5VWM 15VC 0 |
2,805 |
|
Datasheet |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6.4V | 25V | 4A (8/20µs) | 100W | No | - | 0.23pF @ 1MHz | -55°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 0402C/SOD-923F |
|
MSX1PDHM3/89ATVS DIODE 200VWM MICROSMP |
9,453 |
|
Datasheet |
DO-219AD | eSMP® | Tape & Reel (TR) | Active | Zener | 1 | - | 200V | - | - | - | - | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-219AD (MicroSMP) |
