TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PESD5V0V1BLZPESD5V0V1BL/SOD882/SOD2 |
6,666 |
|
Datasheet |
SOD-882 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 4.8A (8/20µs) | 45W | No | Ethernet, Telecom | 11pF @ 1MHz | -55°C ~ 150°C (TA) | Automotive | AEC-Q101 | Surface Mount | DFN1006-2 |
|
|
ESDSB2V5LB-TPESD,2.5V,DFN1006-2 |
4,653 |
|
- |
0402 (1006 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 2.5V | 2.9V | 10V | 10A (8/20µs) | 100W | No | General Purpose | 25pF @ 1MHz (Max) | -40°C ~ 85°C (TJ) | - | - | Surface Mount | 2-DFN1006 |
|
DD2S06200LTVS DIODE 5.5VWM SSMINI2-F5-B |
9,266 |
|
- |
SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 5.5V | 5.9V | - | - | - | No | General Purpose | 10pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
ESDHD12BFXESDHD12BF/DFN1006/REEL 7" Q1/T1 |
6,373 |
|
Datasheet |
0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 12V | 13V | 25V | 6A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD24BFXESDHD24BF/DFN1006/REEL 7" Q1/T1 |
2,069 |
|
Datasheet |
0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26V | 48V | 5A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
ESDHD15BFXESDHD15BF/DFN1006/REEL 7" Q1/T1 |
5,224 |
|
Datasheet |
0402 (1006 Metric) | ESDHDxxBF | Tape & Reel (TR) | Active | Zener | - | 1 | 15V | 16.5V | 35V | 7A (8/20µs) | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN1006-2 |
|
|
SED8C05L01TVS ESD SOD-882 5V 18V |
9,916 |
|
- |
SOD-882 | SED8C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.2V | 18V | 25A (8/20µs) | - | No | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-882 |
|
|
ESDHSLC5V0AE2-TPESD PROTECTION DEVICES,0201-A |
7,905 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | 1 | - | 5V (Max) | 6V | 12V | 5A (8/20µs) | 60W | No | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
ESDZV201-1BF4DFD PROTECTION |
7,781 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ESDSB7V0AE2-TPTVS DIODES |
5,191 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 7V (Max) | 7.2V | 14V | 6A (8/20µs) | 84W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201-A |
|
|
LAQ02C05L01TVS ESD 0201 5V 10V |
8,610 |
|
- |
0201 (0603 Metric) | LAQ02C05L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 6V | 10V (Typ) | 3A (8/20µs) | - | No | General Purpose | 8pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02A12L01TVS ESD 0201 12V 25V |
9,478 |
|
Datasheet |
0201 (0603 Metric) | LAQ02AXXL01 | Tape & Reel (TR) | Active | Zener | 1 | - | 12V | 13V | 25V | 2.5A (8/20µs) | - | No | General Purpose | 15pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
LAQ02C03L01TVS ESD 0201 3.3V 10V |
3,561 |
|
Datasheet |
0201 (0603 Metric) | LAQ02C03L01 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.5V | 10V | 7A (8/20µs) | - | No | General Purpose | 12pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 0201 |
|
|
CPDZD3V3HE-HFDIODE ESD 3.3VWM 80W DFN0603-2L |
3,370 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 3.8V | 10V | 8A (8/20µs) | 80W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | 0201/DFN0603 |
|
|
CPDZ5V0HE-HFDIODE ESD 5VWM 70W 0201/DFN0603- |
4,168 |
|
Datasheet |
0201 (0603 Metric) | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.6V | 11V | 7A (8/20µs) | 70W | No | General Purpose | 13.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DFN0603-2L |
|
|
DZ2S22000LTVS DIODE 17VWM SSMINI2-F5-B |
8,730 |
|
- |
SC-79, SOD-523 | - | Tape & Reel (TR) | Discontinued at Digi-Key | Zener | 1 | - | 17V | 20.9V | - | - | - | No | General Purpose | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SSMini2-F5-B |
|
|
D5V0HE1U2LP-7BGENERAL PROTECTION PP X1-DFN1006 |
5,147 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D6V3HE1U2LP-7BSURGE PROTECTION PP X1-DFN1006-2 |
5,546 |
|
- |
- | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

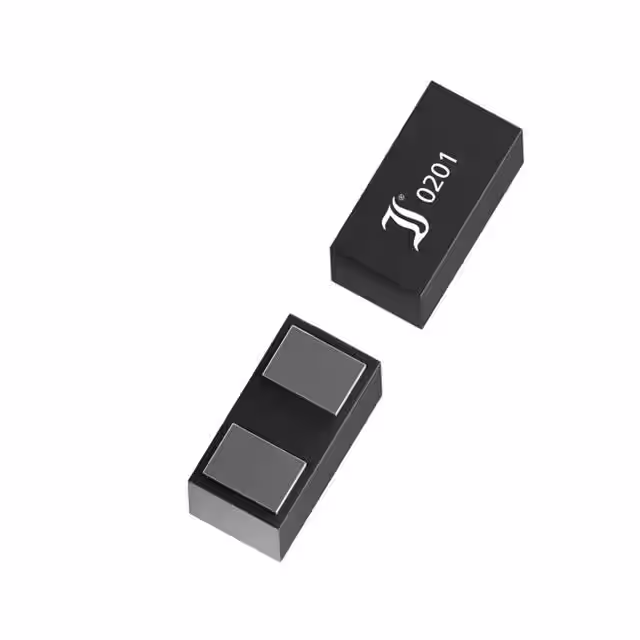

ESD03B3ZTVS DIODE 3.3VWM 9.5VC 0201 |
2,291 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 3.3V | 3.7V | 9.5V | 21A (8/20µs) | 170W | No | - | - | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
|
ESD0541ZTVS DIODE 5VWM 15VC 0201 |
8,814 |
|
Datasheet |
0201 (0603 Metric) | - | Bulk | Active | Zener | - | 1 | 5V | 6V | 15V | 2A (8/20µs) | 25W | No | General Purpose | 6.5pF @ 1MHz | -50°C ~ 125°C (TJ) | - | - | Surface Mount | 0201 |
