TVS Diodes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMBJ48CATVS DIODE 48VWM 77.4VC |
200 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 48V | 53.3V | 77.4V | 7.75A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
1.5KE200ABULKTVS DIODE 171VWM 274VC DO201 |
500 |
|
- |
DO-201AA, DO-27, Axial | 1.5KE | Bag | Active | Zener | 1 | - | 171V | 190V | 274V | 5.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SMBJ24CATVS DIODE 24VWM 38.9VC |
500 |
|
Datasheet |
DO-214AA (SMB) | SMBJ | Strip | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 15.42A | 600W | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
SMCJ220CATVS DIODE 220VWM 356VC |
200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | - | 1 | 220V | 246V | 356V | 4.2A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
1.5KE30CBULKTVS DIODE 24.3VWM 43.5VC DO201 |
1,000 |
|
- |
DO-201AA, DO-27, Axial | 1.5KE6.8C | Bag | Active | Zener | - | 1 | 24.3V | 27V | 43.5V | 34.5A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
SMCJ26ATVS DIODE 26VWM 42.1VC |
200 |
|
Datasheet |
DO-214AB (SMC) | SMCJ | Strip | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 35.63A | 1500W (1.5kW) | - | General Purpose | - | -55°C ~ 150°C | - | - | Surface Mount | - |
|
|
1.5KE130CABULTVS DIODE 111VWM 179VC DO201 |
1,000 |
|
- |
DO-201AA, DO-27, Axial | 1.5KE6.8C | Bag | Active | Zener | - | 1 | 111V | 124V | 179V | 8.4A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
|
1.5KE33CABULKTVS DIODE 28.2VWM 45.7VC DO201 |
500 |
|
- |
DO-201AA, DO-27, Axial | 1.5KE6.8C | Bag | Active | Zener | - | 1 | 28.2V | 31.4V | 45.7V | 33A | 1500W (1.5kW) | No | General Purpose | - | -65°C ~ 175°C (TJ) | - | - | Through Hole | DO-201 |
|
3.0SMCJ36CASurface Mount Uni/Bi-Directional |
150 |
|
Datasheet |
DO-214AB, SMC | 3.0SMCJ-AT | Tape & Reel (TR) | Active | Zener | - | 1 | 36V | 40V | 58.1V | 51.6A | 3000W (3kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC (DO-214AB) |
|
3.0SMCJ5P0ASurface Mount Uni/Bi-Directional |
100 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3.0SMCJ170ASurface Mount Uni/Bi-Directional |
100 |
|
Datasheet |
DO-214AB, SMC | 3.0SMCJ-AT | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 10.9A | 3000W (3kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC (DO-214AB) |
|
5.0SMCJ170ASurface Mount Uni/Bi-Directional |
100 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ-AT | Tape & Reel (TR) | Active | Zener | 1 | - | 170V | 189V | 275V | 18.2A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC (DO-214AB) |
|
|
5.0SMCJ5P0ASurface Mount Uni/Bi-Directional |
100 |
|
Datasheet |
DO-214AB, SMC | 5.0SMCJ-AT | Tape & Reel (TR) | Active | Zener | 1 | - | 5V | 6.4V | 9.2V | 543.6A | 5000W (5kW) | No | Telecom | - | -55°C ~ 150°C (TJ) | Automotive | AEC-Q101 | Surface Mount | SMC (DO-214AB) |
|
SM8S24CATVS 6600W DIODE 24VWM Bi-Dir DO- |
100 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 24V | 26.7V | 38.9V | 170A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S26ATVS 6600W DIODE 26VWM Uni-Dir DO |
100 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 26V | 28.9V | 42.1V | 157A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S20CATVS 6600W DIODE 20VWM Bi-Dir DO- |
100 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | - | 1 | 20V | 22.2V | 32.4V | 204A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
|
SM8S58ATVS 6600W DIODE 58VWM Uni-Dir DO |
100 |
|
Datasheet |
DO-218AB | - | Tape & Reel (TR) | Active | Zener | 1 | - | 58V | 64.4V | 93.6V | 64.1A | 6600W (6.6kW) | No | - | - | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DO-218AB |
|
30KP36AUni-polar TVS 30000W, Case Type: |
100 |
|
Datasheet |
D-6, Axial | 30KP | Bulk | Active | Zener | 1 | - | 36V | 40V | 61.8V | 502A | 30000W (30kW) | No | General Purpose | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | D6 |
|

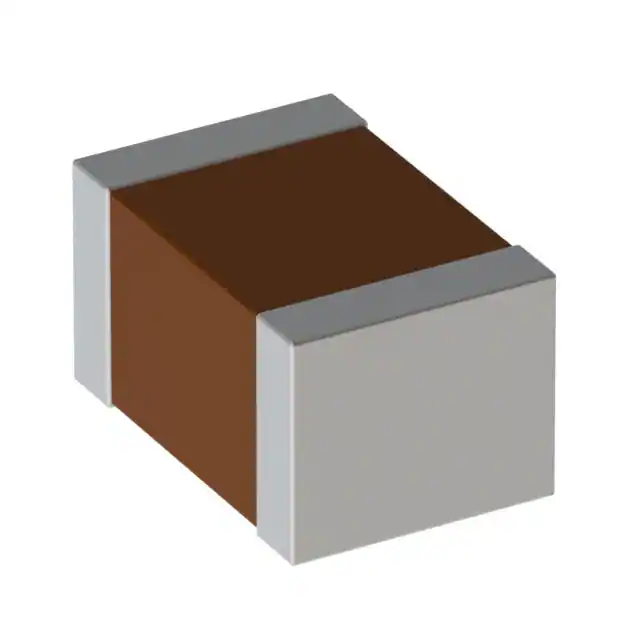

GG040205100N2PTVS DIODE 5VWM 12VC 0402 |
4,322 |
|
Datasheet |
0402 (1005 Metric) | GiGUARD | Tape & Reel (TR) | Active | Zener | - | 1 | 5V | 5.5V | 12V | 8A (8/20µs) | 96W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 0402 (1005 Metric) |
|
LXES1UTAA1-157TVS DIODE 6VWM 2DFN |
6,371 |
|
Datasheet |
2-XDFN | LXESxxT | Tape & Reel (TR) | Active | Zener | - | 1 | 6V | 7V | - | - | - | No | General Purpose | 0.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 2-DFN (1x0.6) |
